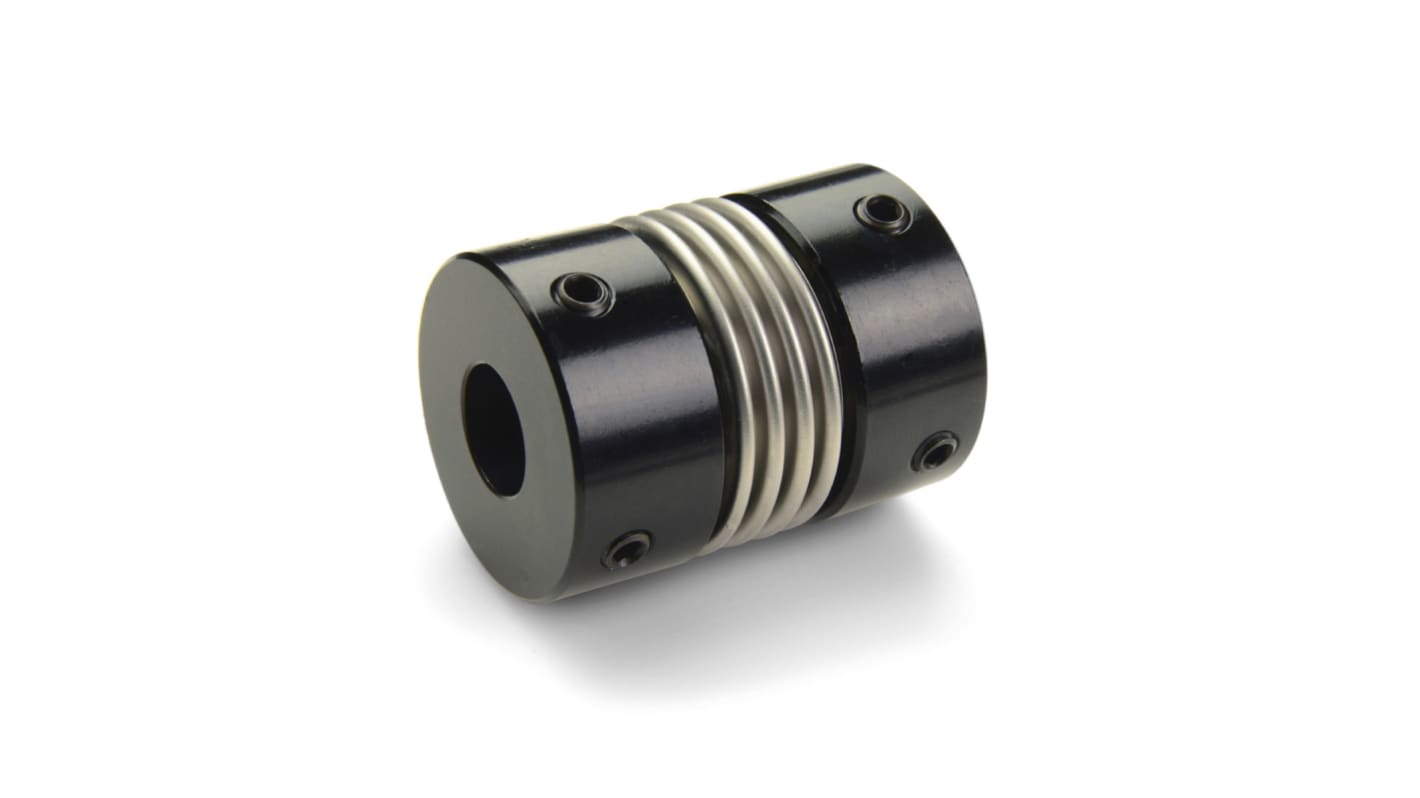

Ruland Bellows Coupling, 41.3mm Outside Diameter, 12mm Bore, 50.8mm Length Coupler

View all Flexible Couplings
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
174-7215
Mfr. Part No.:
MBS41-12-12-A
Brand:
Ruland
Find similar products by selecting one or more attributes.
Select all

Brand

Ruland

Coupling Types

Bellows Coupling

Bore

12mm

Outside Diameter

41.3mm

Length

50.8mm

Torque Rating

28Nm

Misalignment - Angular

2°

Misalignment - Parallel

0.25mm

Misalignment - Axial

0.5mm

COO (Country of Origin):
US
Ruland MBS41-12-12-A is a bellows coupling with 12mm x 12mm bores, 41.3mm OD, and 50.8mm length. It is zero-backlash and has a balanced design for reduced vibration at high speeds. MBS41-12-12-A is comprised of two anodized aluminum hubs and a stainless steel bellows. The bellows are able to flex while remaining rigid under torsional loads allowing for all types of misalignment to be accommodated. This bellows coupling is lightweight and has low inertia making it suitable for applications with speeds up to 10,000 RPM. Hardware is metric and tests beyond DIN 912 12.9 standards for maximum torque capabilities. Ruland manufactures MBS41-12-12-A to be torsionally rigid and an excellent fit for precise positioning stepper servo applications as well as encoders. It is machined from solid bar stock that is sourced exclusively from North American mills. MBS41-12-12-A is carefully manufactured in our Marlborough, MA factory under strict controls using proprietary processes.
