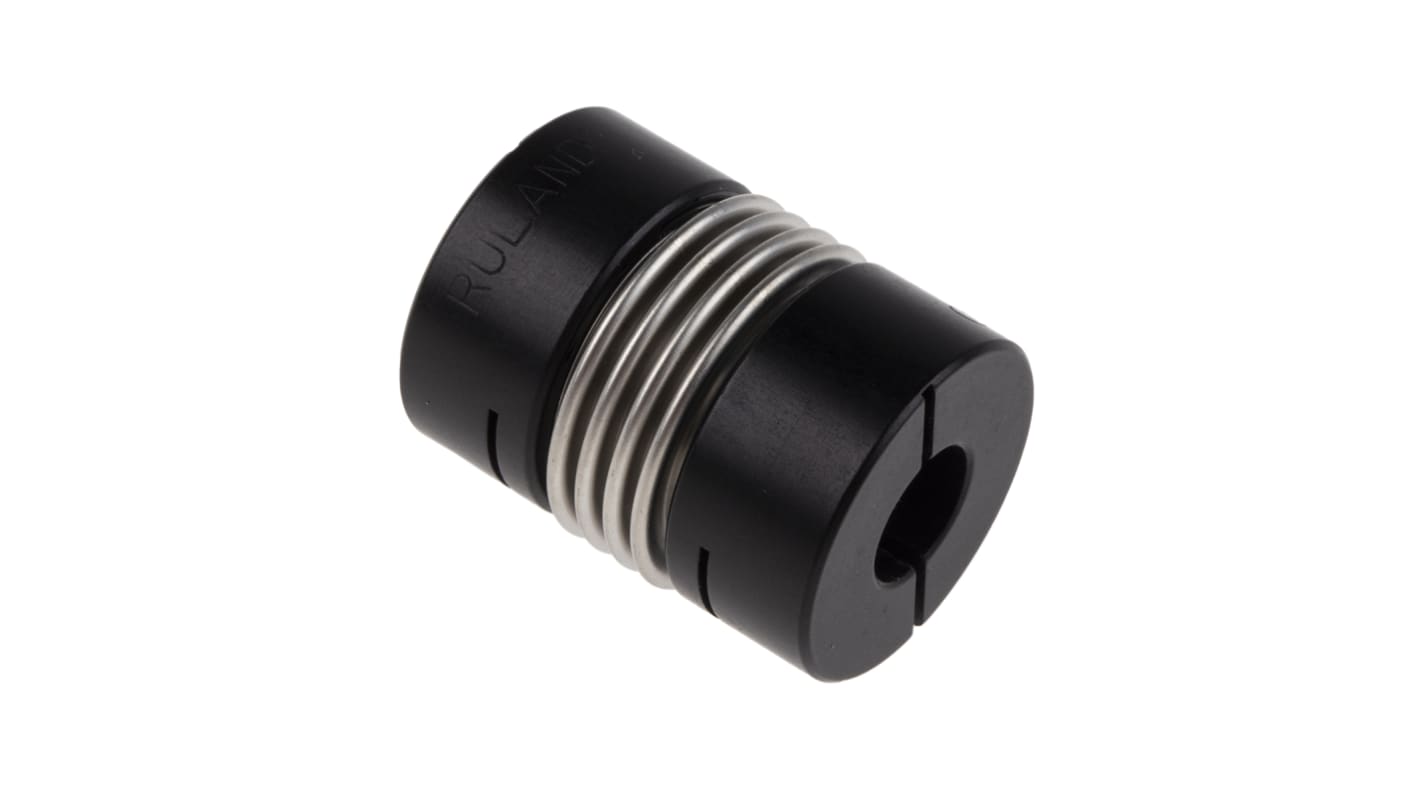

Ruland Bellows Coupling, 25mm Outside Diameter, 10mm Bore, 33.3mm Length Coupler
- RS Stock No.:
- 174-7175
- Mfr. Part No.:
- MBC25-10-10-A
- Brand:
- Ruland
Save 7% when you buy 25 units
Subtotal (1 unit)*
£99.32
(exc. VAT)
£119.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £99.32 |
5 - 9 | £95.36 |
10 - 24 | £93.37 |
25 + | £91.38 |
*price indicative
- RS Stock No.:
- 174-7175
- Mfr. Part No.:
- MBC25-10-10-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Coupling Types | Bellows Coupling | |
Bore | 10mm | |
Outside Diameter | 25mm | |
Length | 33.3mm | |
Torque Rating | 6.8Nm | |
Misalignment - Angular | 1.5° | |
Misalignment - Parallel | 0.1mm | |
Misalignment - Axial | 0.3mm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Coupling Types Bellows Coupling | ||
Bore 10mm | ||
Outside Diameter 25mm | ||
Length 33.3mm | ||
Torque Rating 6.8Nm | ||
Misalignment - Angular 1.5° | ||
Misalignment - Parallel 0.1mm | ||
Misalignment - Axial 0.3mm | ||
- COO (Country of Origin):
- US
Ruland Coupling
The Ruland bellows coupling has a 25mm OD and 33.3mm length with clamp fastening. This clamp is 10mm x 10mm bore coupling. This is readily accommodated by any combination of axial motion, angular and parallel misalignment. It comprises of two anodized aluminium hubs and stainless steel bellows. This bellow is able to flex while remaining rigid under torsional loads. Its balanced design reduces vibrations at high speed.
Features and Benefits
• Zero backlash
• Black-oiled alloy steel fasteners for strength and corrosion resistance
• Precision bellows coupling with excellent kinematic properties
• Maximum speed of 10,000rpm
• Hardware is metric and tested beyond DIN standard for high torque capabilities
• Service temperature ranges between -40°C and 93°C
• Low inertia coupling
• Lightweight
• Black-oiled alloy steel fasteners for strength and corrosion resistance
• Precision bellows coupling with excellent kinematic properties
• Maximum speed of 10,000rpm
• Hardware is metric and tested beyond DIN standard for high torque capabilities
• Service temperature ranges between -40°C and 93°C
• Low inertia coupling
• Lightweight
Applications
• Stepper and servo drives
• Encoders
• General purpose light-duty power transmission
• Encoders
• General purpose light-duty power transmission
Certifications
• REACH certification
• DIN 912 12.9
• DIN 912 12.9
