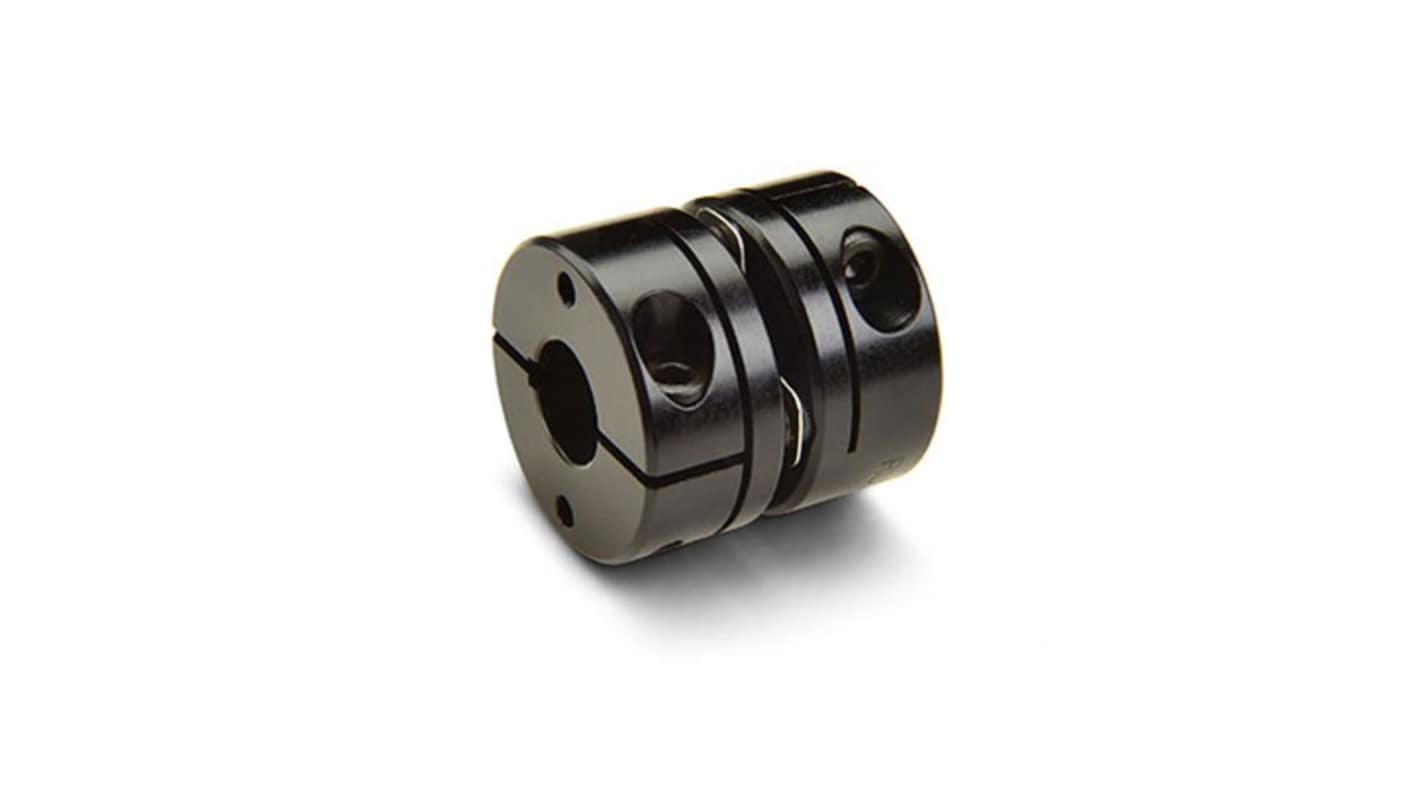

Ruland Disc, 25mm Outside Diameter, 9 mm, 10 mm Bore, 26.2mm Length Flexible Coupling
- RS Stock No.:
- 605-984
- Mfr. Part No.:
- MDCSK25-10-9-A
- Brand:
- Ruland
Subtotal (1 unit)*
£117.15
(exc. VAT)
£140.58
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £117.15 |
*price indicative
- RS Stock No.:
- 605-984
- Mfr. Part No.:
- MDCSK25-10-9-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Coupling Types | Disc | |
| Bore | 9 mm, 10 mm | |
| Outside Diameter | 25mm | |
| Length | 26.2mm | |
| Fastening Type | Key Screw | |
| Torque Rating | 5.6Nm | |
Select all | ||
|---|---|---|
Brand Ruland | ||
Coupling Types Disc | ||
Bore 9 mm, 10 mm | ||
Outside Diameter 25mm | ||
Length 26.2mm | ||
Fastening Type Key Screw | ||
Torque Rating 5.6Nm | ||
- COO (Country of Origin):
- US
Carbon Film Resistors 0.5W
The RS series of carbon film axial leaded resistors offer excellent long term stability and feature standard solder-plated copper leads. Applications include automotive, telecommunication and medical equipment.
The Ruland Clamp single disc coupling with keyways is a high-precision mechanical coupling designed for zero-backlash torque transmission, ensuring accuracy and reliability in motion control applications. Its balanced design minimizes vibration at high speeds, improving stability and efficiency. The coupling consists of two anodized aluminum hubs with integrated keyways for secure shaft attachment, along with thin stainless steel disc springs that allow for angular misalignment and axial movement while maintaining structural rigidity. However, it does not support parallel misalignment, requiring precise shaft alignment for optimal operation.
Lightweight and has low inertia making it well suited for applications with speeds up to 10,000 RPM
Hardware is metric and tests beyond DIN 912 12.9 standards for maximum torque capabilities
It is machined from solid bar stock that is sourced exclusively from North American mills and RoHS3 and REACH compliant
Hardware is metric and tests beyond DIN 912 12.9 standards for maximum torque capabilities
It is machined from solid bar stock that is sourced exclusively from North American mills and RoHS3 and REACH compliant
A comprehensive range of high stability carbon film resistors qualified and tested to the requirements of IEC 115 and IEC 115-2. The ruggedised welded cap and lead method of manufacture provides a considerable strength and resistance to damage. The coating materials and the colour bands are epoxy resin and are highly resistant to solvents, abrasion and chipping. Improvements in materials and processing have allowed the rated power to be improved. Excellent stability against changes in load conditions or moisture levels, with a low noise level and high reliability make these carbon film resistors suitable for a wide range of applications. Rated at 70°C in free air mounted horizontally. Climatic category 55/155/56.
