Ruland Beam, 19.1mm Outside Diameter, 4 mm, 6 mm Bore, 22.9mm Length Flexible Coupling
- RS Stock No.:
- 604-896
- Mfr. Part No.:
- PCMR19-6-4-A
- Brand:
- Ruland
Subtotal (1 unit)*
£39.38
(exc. VAT)
£47.26
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £39.38 |
*price indicative
- RS Stock No.:
- 604-896
- Mfr. Part No.:
- PCMR19-6-4-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Coupling Types | Beam | |
Bore | 4 mm, 6 mm | |
Outside Diameter | 19.1mm | |
Length | 22.9mm | |
Fastening Type | Clamp | |
Torque Rating | 1.21Nm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Coupling Types Beam | ||
Bore 4 mm, 6 mm | ||
Outside Diameter 19.1mm | ||
Length 22.9mm | ||
Fastening Type Clamp | ||
Torque Rating 1.21Nm | ||
- COO (Country of Origin):
- US

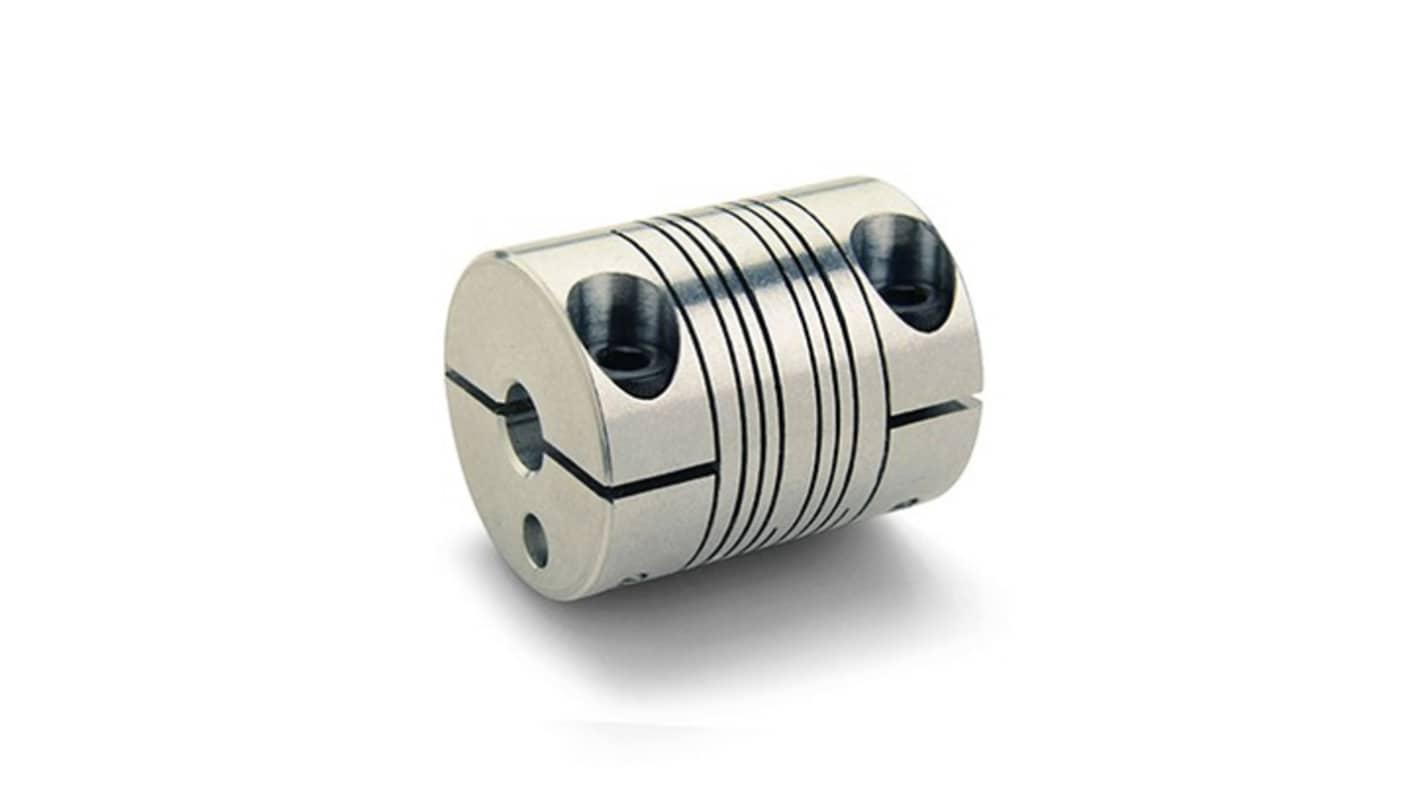

The Ruland Four beam coupling is engineered for precision and efficiency, making it an ideal choice for a variety of applications requiring robust mechanical connections. Crafted from high-quality 7075 aluminum, this product offers excellent torque capacity while maintaining a lightweight profile. It features a unique spiral design that allows for zero backlash and enhances performance at high speeds, reaching up to 6,000 RPM. The integral design ensures stability and reliability, making it perfect for scenarios where reduced vibration is critical. Manufactured in the USA under rigorous quality controls, this coupling guarantees durability and compliance with industry standards.
Machined from a single piece of 7075 aluminum for maximum durability
Designed with zero backlash to ensure precise alignment and operational efficiency
Balanced construction significantly reduces vibration at high rotational speeds
Supports dynamic torque capabilities for both reversing and non-reversing applications
Temperature range tolerance facilitates use in diverse environmental conditions
Easy installation with M2.
.5 screws and a recommended hex torque specification
Designed with zero backlash to ensure precise alignment and operational efficiency
Balanced construction significantly reduces vibration at high rotational speeds
Supports dynamic torque capabilities for both reversing and non-reversing applications
Temperature range tolerance facilitates use in diverse environmental conditions
Easy installation with M2.
.5 screws and a recommended hex torque specification
