Ruland Beam Coupling, 38.1mm Outside Diameter, 16 mm, 19 mm Bore, 57.2mm Length Flexible Beam Coupling
- RS Stock No.:
- 593-393
- Mfr. Part No.:
- FSMR38-19-16-A
- Brand:
- Ruland
Subtotal (1 unit)*
£111.61
(exc. VAT)
£133.93
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £111.61 |
*price indicative
- RS Stock No.:
- 593-393
- Mfr. Part No.:
- FSMR38-19-16-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Bore | 16 mm, 19 mm | |
Coupling Types | Beam Coupling | |
Outside Diameter | 38.1mm | |
Length | 57.2mm | |
Fastening Type | Set Screw | |
Torque Rating | 9.04Nm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Bore 16 mm, 19 mm | ||
Coupling Types Beam Coupling | ||
Outside Diameter 38.1mm | ||
Length 57.2mm | ||
Fastening Type Set Screw | ||
Torque Rating 9.04Nm | ||
- COO (Country of Origin):
- US

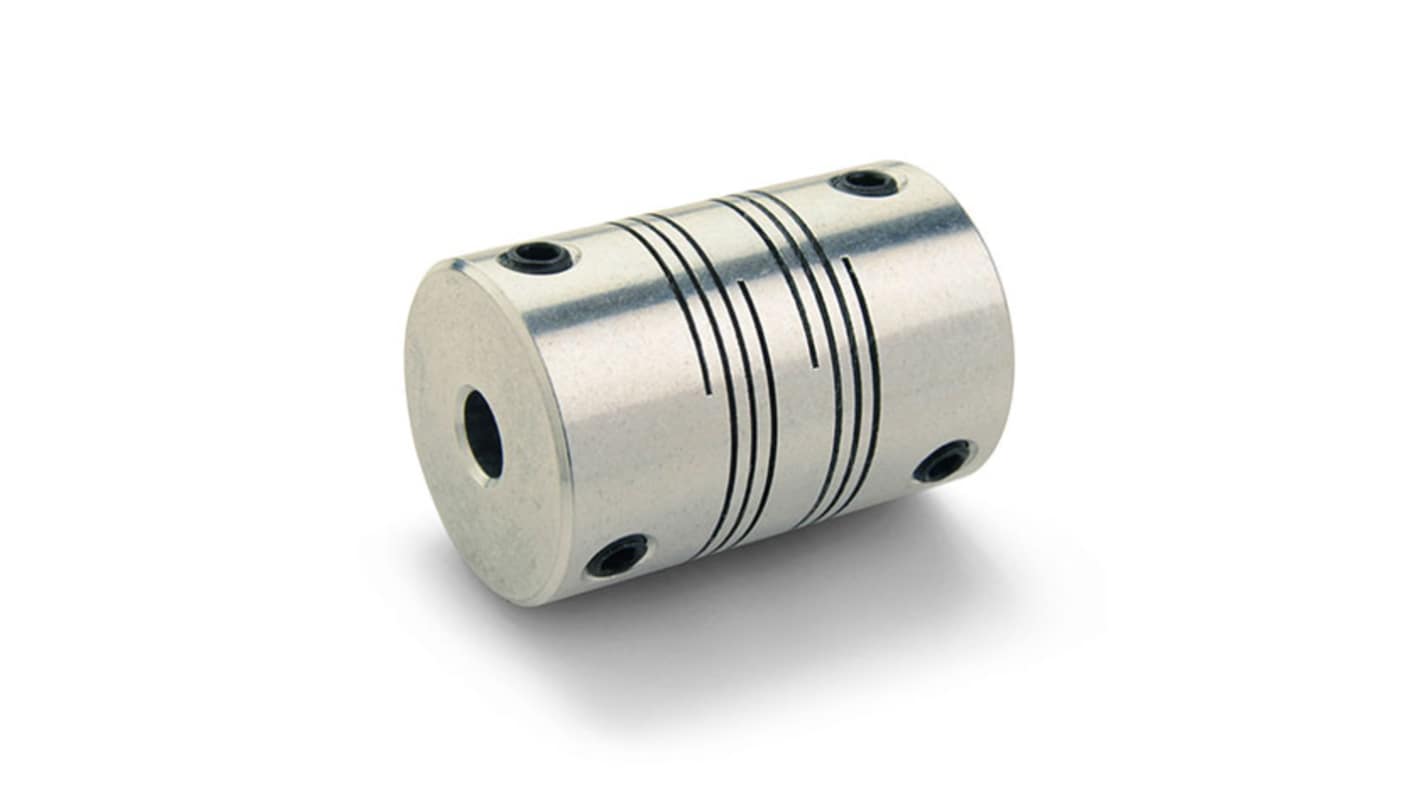

The Ruland Six beam coupling is designed with versatility and performance in mind, providing a robust solution for light duty power transmission applications. Manufactured from high-quality 7075 aluminium, it features a set screw design that ensures reliable torque transmission while maintaining a lightweight profile. The couplings precision engineering incorporates three spiral cuts in a single piece of material, enhancing its torque capacity and reducing windup during operation. With a balanced design, it effectively minimises vibrations at speeds of up to 6,000 RPM, making it ideal for a variety of mechanical alignments. Ensuring reliability, each unit is tested beyond DIN 912 12.9 standards, affirming its capability to handle significant torque loads.
Zero-backlash design ensures precise motion transfer
Rated for dynamic torque reversing and non-reversing applications
Compatible with lightweight aluminium construction for low inertia
Metric hardware provides ease of use in specific applications
High maximum speed supports advanced performance requirements
Robust build meets strict compliance standards for environmental regulations
Installation process is straightforward, allowing for quick and efficient setup
Rated for dynamic torque reversing and non-reversing applications
Compatible with lightweight aluminium construction for low inertia
Metric hardware provides ease of use in specific applications
High maximum speed supports advanced performance requirements
Robust build meets strict compliance standards for environmental regulations
Installation process is straightforward, allowing for quick and efficient setup
