Ruland Beam Coupling, 38.1mm Outside Diameter, 10 mm, 16 mm Bore, 57.2mm Length Flexible Beam Coupling
- RS Stock No.:
- 592-496
- Mfr. Part No.:
- FCMR38-16-10-SS
- Brand:
- Ruland
Subtotal (1 unit)*
£313.92
(exc. VAT)
£376.70
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £313.92 |
*price indicative
- RS Stock No.:
- 592-496
- Mfr. Part No.:
- FCMR38-16-10-SS
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Coupling Types | Beam Coupling | |
Bore | 10 mm, 16 mm | |
Outside Diameter | 38.1mm | |
Length | 57.2mm | |
Fastening Type | Clamp | |
Torque Rating | 19.82Nm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Coupling Types Beam Coupling | ||
Bore 10 mm, 16 mm | ||
Outside Diameter 38.1mm | ||
Length 57.2mm | ||
Fastening Type Clamp | ||
Torque Rating 19.82Nm | ||
- COO (Country of Origin):
- US

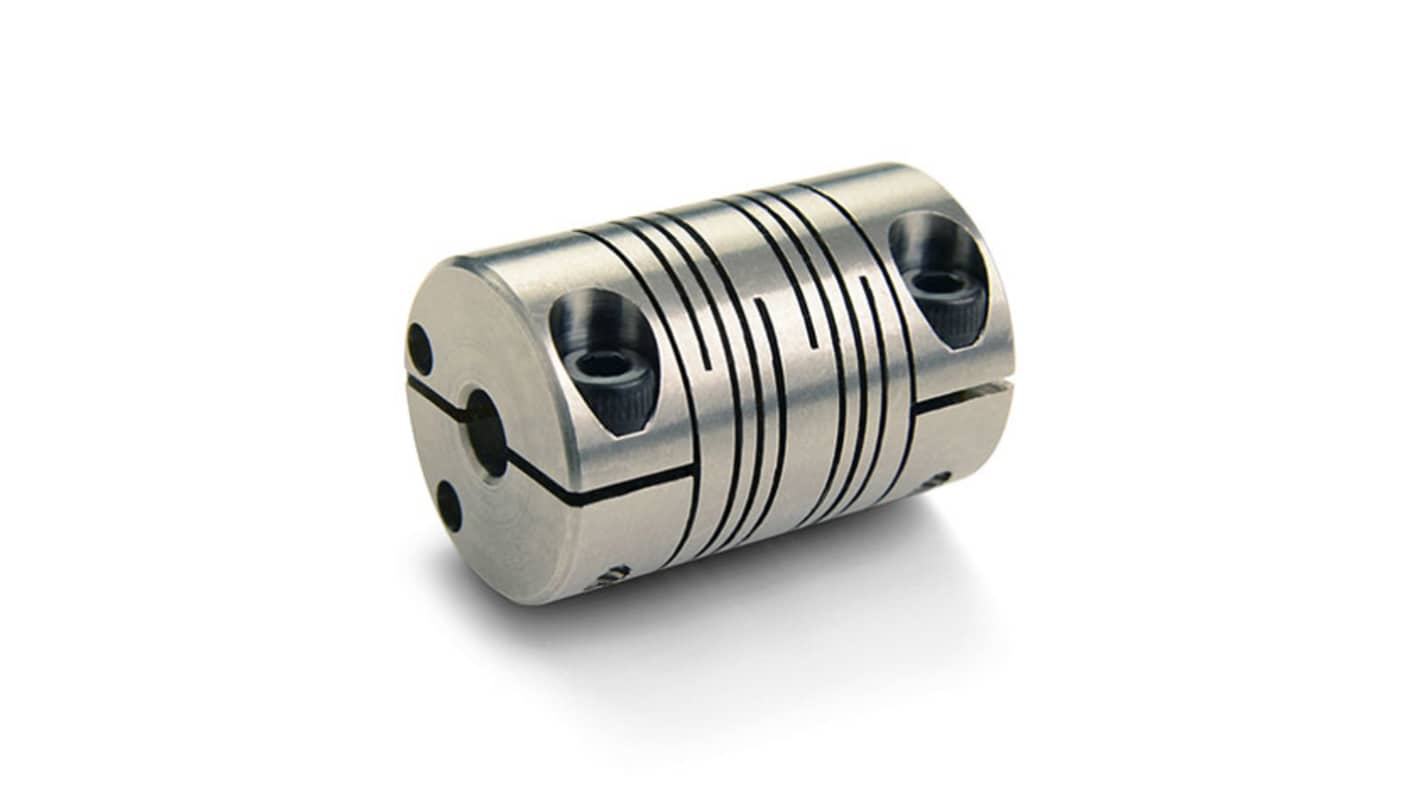

The Ruland Clamp style six beam coupling sets a new standard in torque transmission, designed for light duty applications such as servo motor coupling. Featuring a robust stainless steel construction, it effortlessly combines high torque capacity with a balanced design to minimise vibration at elevated speeds of up to 6,000 RPM. The coupling boasts a zero-backlash mechanism, ensuring reliable performance while maintaining alignment even under varying loads. Crafted from premium 303 stainless steel, this coupling guarantees not only strength but also compliance with RoHS3 and REACH standards. Its unique spiral cut design maximises body size and torque holding capability, making it an excellent choice for precision machinery. Manufactured in the USA, this product adheres to stringent quality controls, enabling engineers to rely on its performance in demanding applications.
Maintains high performance ratings under various misalignment conditions
Balances design reduces operational vibrations for smoother functionality
Allows for quick and convenient assembly with metric hardware
Optimised for high-speed applications up to 6,000 RPM
Balances design reduces operational vibrations for smoother functionality
Allows for quick and convenient assembly with metric hardware
Optimised for high-speed applications up to 6,000 RPM
