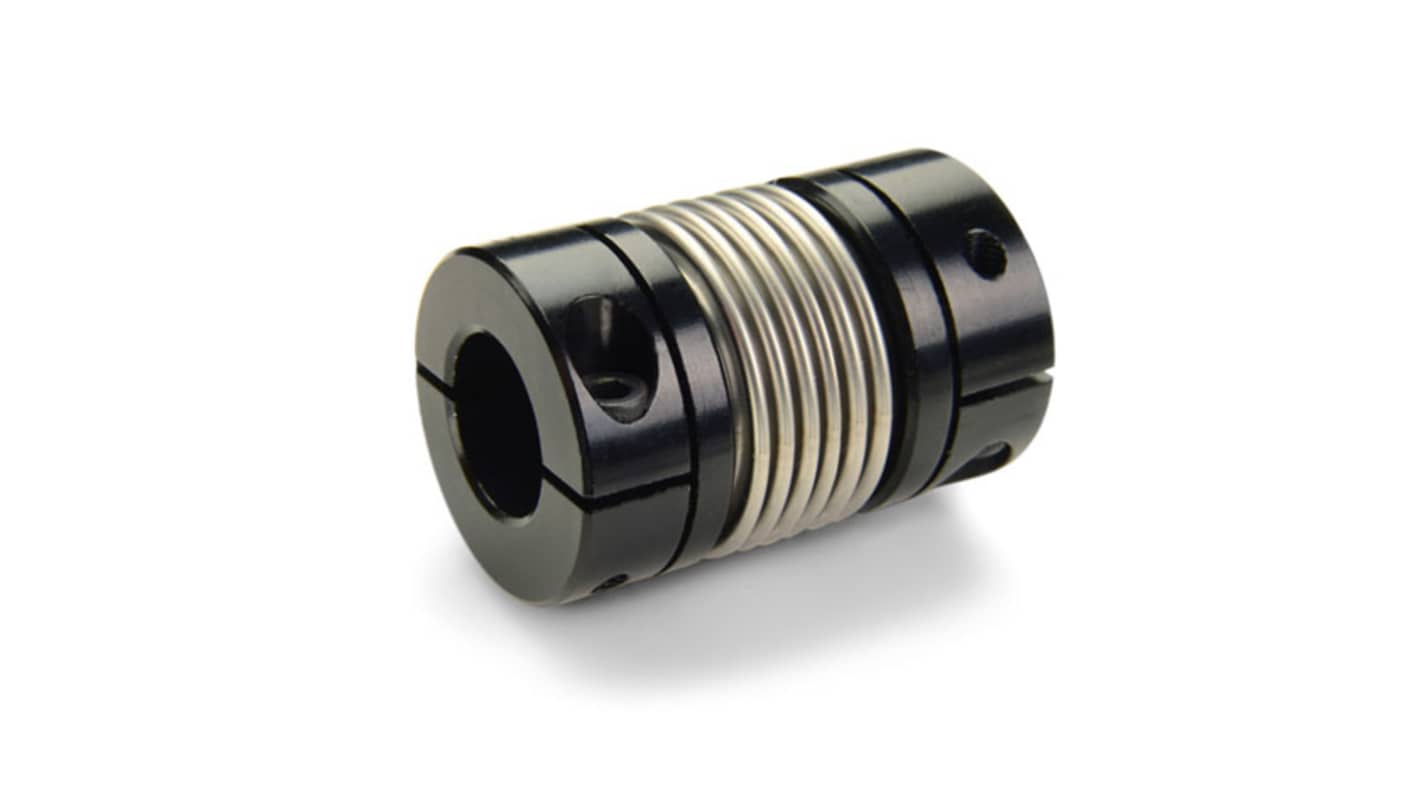

Ruland Bellows Coupling, 19.1mm Outside Diameter, 5 mm, 6 mm Bore, 34.4mm Length Flexible Coupling
- RS Stock No.:
- 591-853
- Mfr. Part No.:
- MBCL19-6-5-A
- Brand:
- Ruland
Subtotal (1 unit)*
£128.42
(exc. VAT)
£154.10
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £128.42 |
*price indicative
- RS Stock No.:
- 591-853
- Mfr. Part No.:
- MBCL19-6-5-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Coupling Types | Bellows Coupling | |
| Bore | 5 mm, 6 mm | |
| Outside Diameter | 19.1mm | |
| Length | 34.4mm | |
| Fastening Type | Clamp | |
| Torque Rating | 4.5Nm | |
Select all | ||
|---|---|---|
Brand Ruland | ||
Coupling Types Bellows Coupling | ||
Bore 5 mm, 6 mm | ||
Outside Diameter 19.1mm | ||
Length 34.4mm | ||
Fastening Type Clamp | ||
Torque Rating 4.5Nm | ||
- COO (Country of Origin):
- US
The Ruland bellows coupling with increased misalignment with 6mm x 5mm bores, 19.1mm OD, and 34.4 mm length. It has more convolutions than comparably sized high stiffness styles allowing for increased misalignment for high-performance applications where shaft misalignment is harder to control. It is comprised of two anodized aluminium hubs and a stainless steel bellows for lightweight and low inertia. It is also engineered with a balanced design for reduced vibration at high speeds up to 10,000 RPM.
RoHS3 and REACH compliant
Hardware is metric and tests beyond DIN 912 12.9 standards
Thin walls of the bellows are able to flex while remaining rigid under torsional loads
Hardware is metric and tests beyond DIN 912 12.9 standards
Thin walls of the bellows are able to flex while remaining rigid under torsional loads
