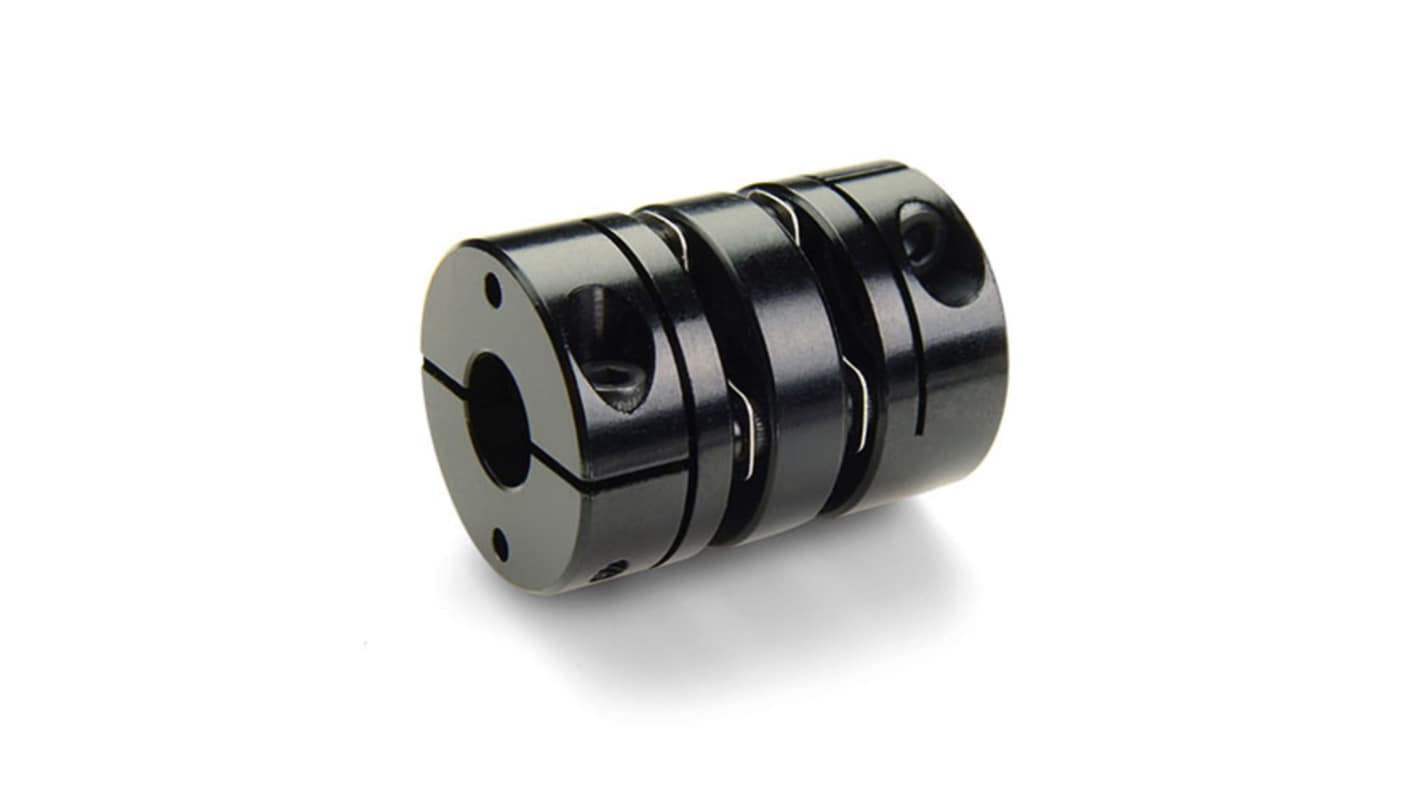

Ruland Disc, 25.4mm Outside Diameter, 10 mm, 11 mm Bore, 34.9mm Length Flexible Coupling
- RS Stock No.:
- 591-841
- Mfr. Part No.:
- MDCD25-11-10-A
- Brand:
- Ruland
Subtotal (1 unit)*
£117.70
(exc. VAT)
£141.24
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £117.70 |
*price indicative
- RS Stock No.:
- 591-841
- Mfr. Part No.:
- MDCD25-11-10-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Bore | 10 mm, 11 mm | |
Coupling Types | Disc | |
Outside Diameter | 25.4mm | |
Length | 34.9mm | |
Fastening Type | Clamp | |
Torque Rating | 5.6Nm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Bore 10 mm, 11 mm | ||
Coupling Types Disc | ||
Outside Diameter 25.4mm | ||
Length 34.9mm | ||
Fastening Type Clamp | ||
Torque Rating 5.6Nm | ||
- COO (Country of Origin):
- US
The Ruland Clamp double disc coupling is designed to deliver exceptional performance in precision applications. Engineered with a balanced design, this coupling effectively reduces vibration during high-speed operations, reaching speeds of up to 10,000 RPM. Its zero-backlash feature ensures precise positioning, thereby enhancing the reliability of stepper servo applications in sectors such as semiconductor, solar, and machine tools. Constructed from high-quality materials, it comprises anodised aluminium hubs, stainless steel disc springs, and a centre spacer that allows for individual disc movement, accommodating different types of misalignment. With rigorous manufacturing processes in place, this coupling is produced in the USA, ensuring durability and compliance with RoHS3 and REACH standards.
Lightweight design facilitates easy installation and handling
Excellent torsional rigidity supports high-performance applications
Accommodates various misalignments, allowing versatile usage
Manufactured from solid bar stock for enhanced strength and durability
Zero-backlash design contributes to improved operational accuracy
Dynamic torque ratings ensure reliable operation under varied conditions
Forged clamp screws enable secure and stable connections
Temperature resistance provides versatility across challenging environments
Excellent torsional rigidity supports high-performance applications
Accommodates various misalignments, allowing versatile usage
Manufactured from solid bar stock for enhanced strength and durability
Zero-backlash design contributes to improved operational accuracy
Dynamic torque ratings ensure reliable operation under varied conditions
Forged clamp screws enable secure and stable connections
Temperature resistance provides versatility across challenging environments
