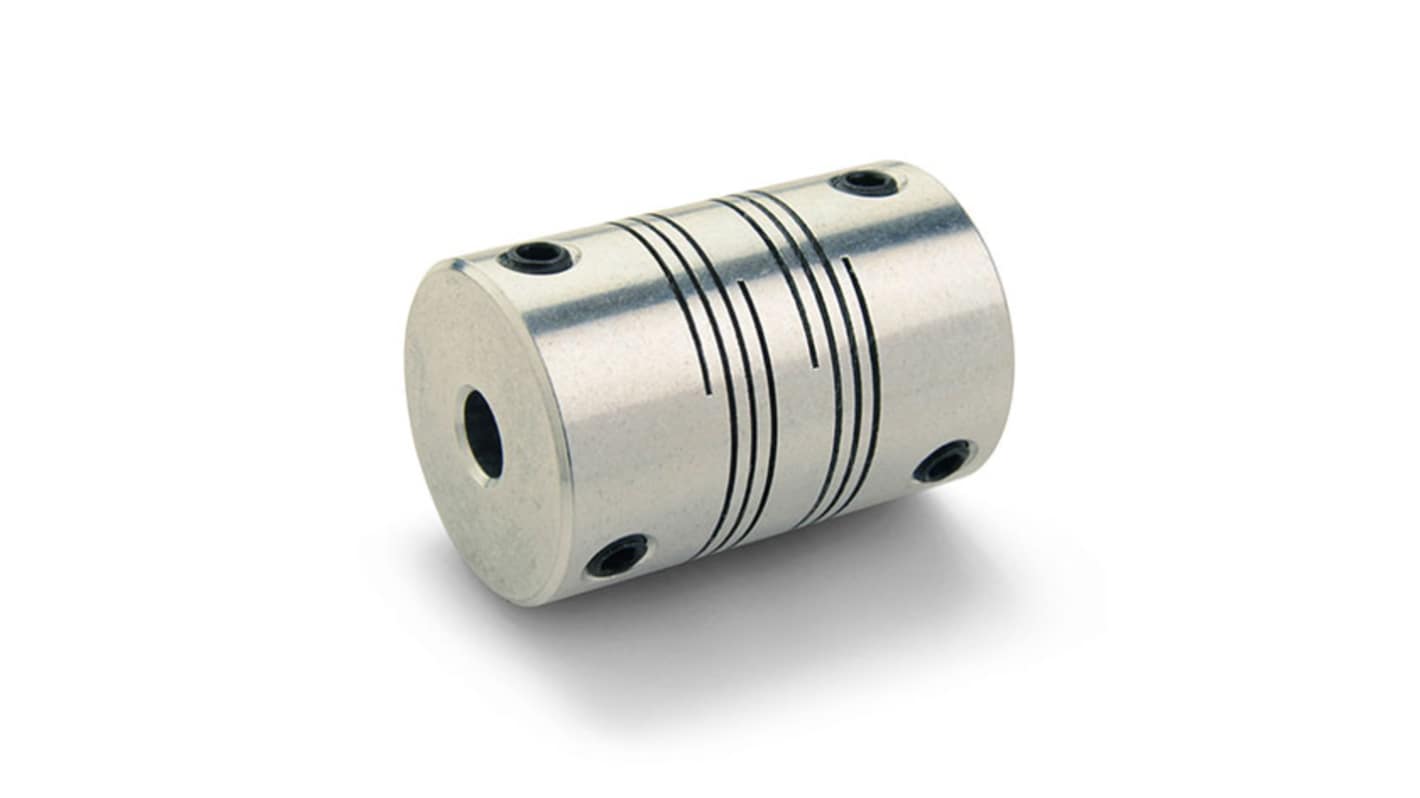

Ruland Beam Coupling, 25.4mm Outside Diameter, 8 mm, 12 mm Bore, 38.1mm Length Flexible Beam Coupling
- RS Stock No.:
- 591-172
- Mfr. Part No.:
- FSMR25-12-8-A
- Brand:
- Ruland
Subtotal (1 unit)*
£51.35
(exc. VAT)
£61.62
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £51.35 |
*price indicative
- RS Stock No.:
- 591-172
- Mfr. Part No.:
- FSMR25-12-8-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Coupling Types | Beam Coupling | |
Bore | 8 mm, 12 mm | |
Outside Diameter | 25.4mm | |
Length | 38.1mm | |
Fastening Type | Set Screw | |
Torque Rating | 2.82Nm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Coupling Types Beam Coupling | ||
Bore 8 mm, 12 mm | ||
Outside Diameter 25.4mm | ||
Length 38.1mm | ||
Fastening Type Set Screw | ||
Torque Rating 2.82Nm | ||
- COO (Country of Origin):
- US
The Ruland Six beam coupling is a meticulously engineered solution designed for light-duty power transmission applications. This coupling is made from a single piece of 7075 aluminium, ensuring high torque capacity with minimal windup. Ideal for connecting servo motors to lead screws, it delivers a zero-backlash performance that keeps vibrations at bay even at high speeds of up to 6,000 RPM. The coupling's robust construction, featuring spiral cuts for added durability, enables it to handle dynamic and static torque demands effectively. With its balanced design and proprietary manufacturing process, this coupling meets stringent industry standards, making it a reliable choice for precision machinery.
Constructed from high-quality 7075 aluminium for durability and lightweight handling
Features a zero-backlash design for improved performance in motion applications
Allows for angular and parallel misalignment, enhancing installation flexibility
Meets DIN 912 12.9 standards for maximum torque capabilities
Optimised for high-speed applications with a maximum speed rating of 6,000 RPM
Compact dimensions enable seamless integration into space-constrained environments
All hardware components are metric, facilitating easier assembly and maintenance
Manufactured under strict quality controls in the USA, ensuring reliability
Features a zero-backlash design for improved performance in motion applications
Allows for angular and parallel misalignment, enhancing installation flexibility
Meets DIN 912 12.9 standards for maximum torque capabilities
Optimised for high-speed applications with a maximum speed rating of 6,000 RPM
Compact dimensions enable seamless integration into space-constrained environments
All hardware components are metric, facilitating easier assembly and maintenance
Manufactured under strict quality controls in the USA, ensuring reliability
