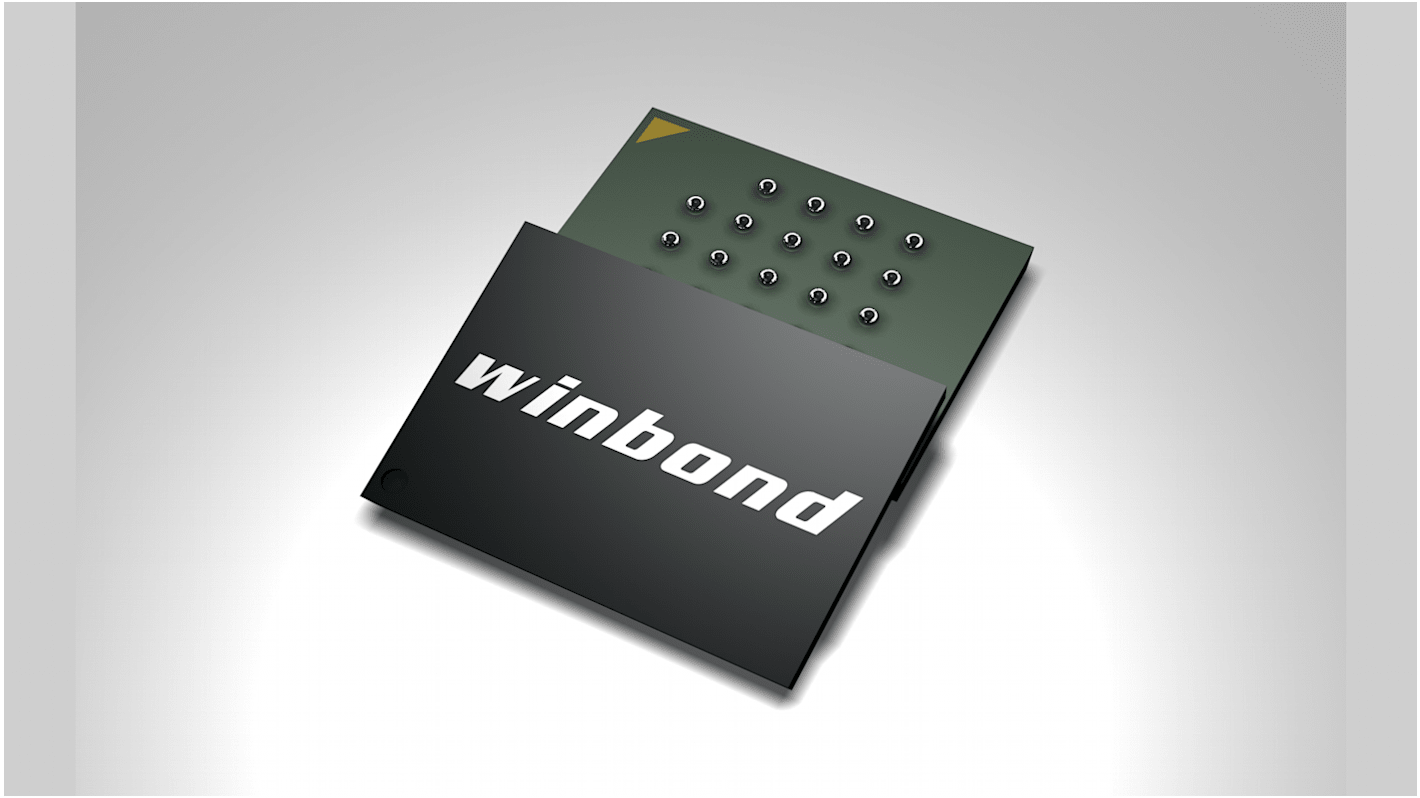

Winbond SLC NAND 1Gbit Quad-SPI Flash Memory 24-Pin TFBGA, W25N01GVTBIG
RS Stock No.:
188-2513
Mfr. Part No.:
W25N01GVTBIG
Brand:
Winbond
Technical Reference (1)
View all Flash Memory
Discontinued product
RS Stock No.:
188-2513
Mfr. Part No.:
W25N01GVTBIG
Brand:
Winbond
Legislation and Compliance
Product Details
Specifications
RoHS Certificate of Compliance
Statement of conformity
1Gb Serial NAND Flash Memory with uniform 2KB+64B page size and set Buffer Read Mode as default.
Page Read Time with ECC Enable: 50us
Page Program Time: 250us(typ.)
Block Erase Time: 2ms(typ.)
Support OTP Memory Area
Attribute
Value
Memory Size
1Gbit
Interface Type
Quad-SPI
Package Type
TFBGA
Pin Count
24
Organisation
128M x 8 bit
Mounting Type
Surface Mount
Cell Type
SLC NAND
Minimum Operating Supply Voltage
2.7 V
Maximum Operating Supply Voltage
3.6 V
Dimensions
8.1 x 6.1 x 0.85mm
Number of Bits per Word
8bit
Minimum Operating Temperature
-40 °C
Number of Words
128M
Maximum Operating Temperature
+85 °C
