EMERSON ? AVENTICS AS5-FRE Filter Regulator, 40μm, G 3/4, Semi Automatic, 16 bar
- RS Stock No.:
- 703-6135
- Mfr. Part No.:
- R412009218
- Brand:
- Aventics

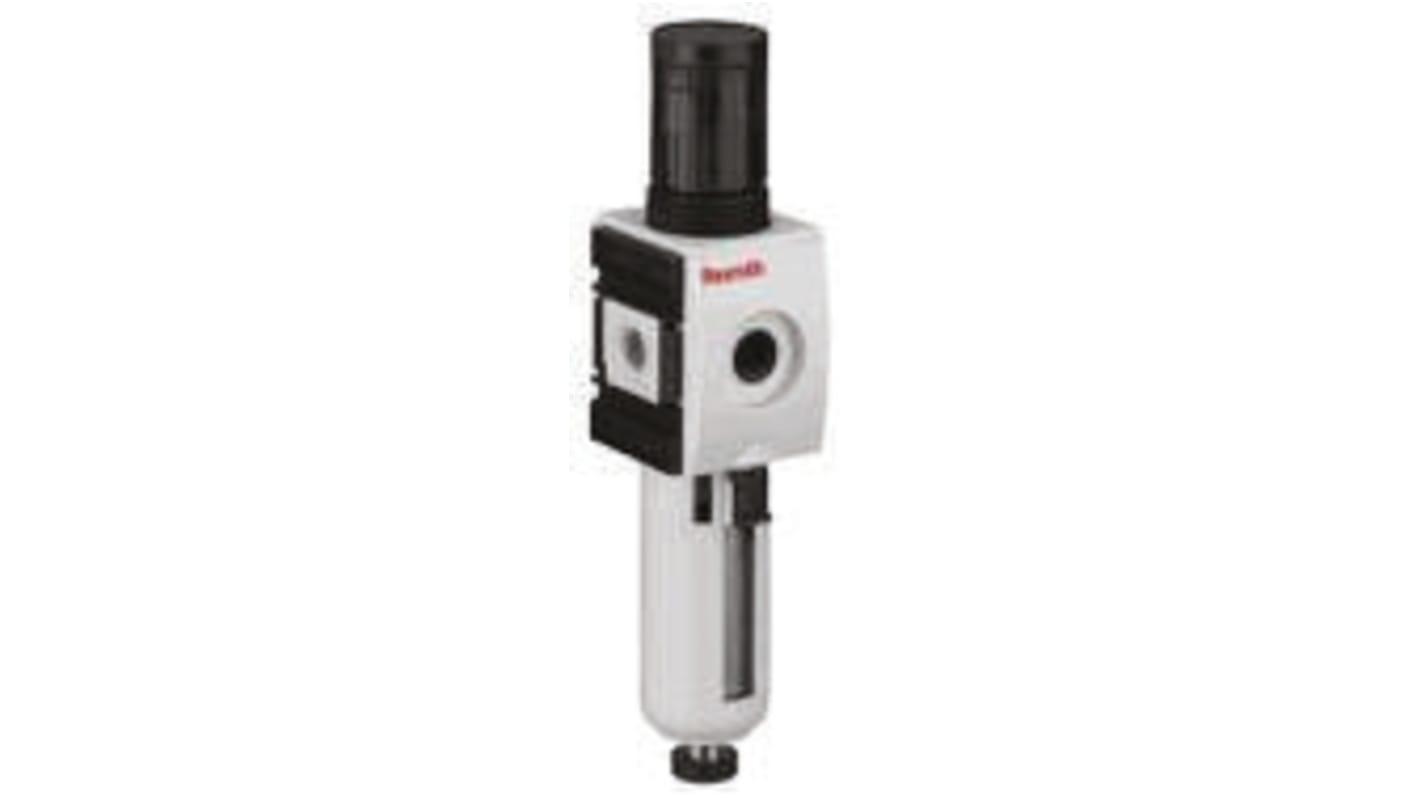

Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£116.42
(exc. VAT)
£139.70
(inc. VAT)
- RS Stock No.:
- 703-6135
- Mfr. Part No.:
- R412009218
- Brand:
- Aventics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Aventics | |
| Port Connection | G 3/4 | |
| Maximum Operating Pressure | 16 bar | |
| Manufacturer Series | AS5-FRE | |
| Drain Type | Semi Automatic | |
| Filtration Size | 40µm | |
| Port Connection Thread Size | 3/4 in | |
| Maximum Ambient Operating Temperature | +50°C | |
| Minimum Process Operating Temperature | -10°C | |
| Minimum Operating Pressure | 1.5bar | |
| Maximum Process Operating Temperature | +50°C | |
| Ambient Operating Temperature Range | -10 → +50°C | |
| Minimum Ambient Operating Temperature | -10°C | |
| Process Operating Temperature Range | -10 → +50°C | |
| Port Connection Thread Standard | G | |
Select all | ||
|---|---|---|
Brand Aventics | ||
Port Connection G 3/4 | ||
Maximum Operating Pressure 16 bar | ||
Manufacturer Series AS5-FRE | ||
Drain Type Semi Automatic | ||
Filtration Size 40µm | ||
Port Connection Thread Size 3/4 in | ||
Maximum Ambient Operating Temperature +50°C | ||
Minimum Process Operating Temperature -10°C | ||
Minimum Operating Pressure 1.5bar | ||
Maximum Process Operating Temperature +50°C | ||
Ambient Operating Temperature Range -10 → +50°C | ||
Minimum Ambient Operating Temperature -10°C | ||
Process Operating Temperature Range -10 → +50°C | ||
Port Connection Thread Standard G | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
AS Series Filter Regulator
Diaphragm type pressure regulator with relieving air exhaust
Temperature range -10 → +50°C
Drain sprung open with pressure off
Padlock lockable
ATEX Certified II 2G2D T4 X
Temperature range -10 → +50°C
Drain sprung open with pressure off
Padlock lockable
ATEX Certified II 2G2D T4 X
AS Series FRL
The AS range of air preparation units may be used as single elements or in combination units using joining accessories
