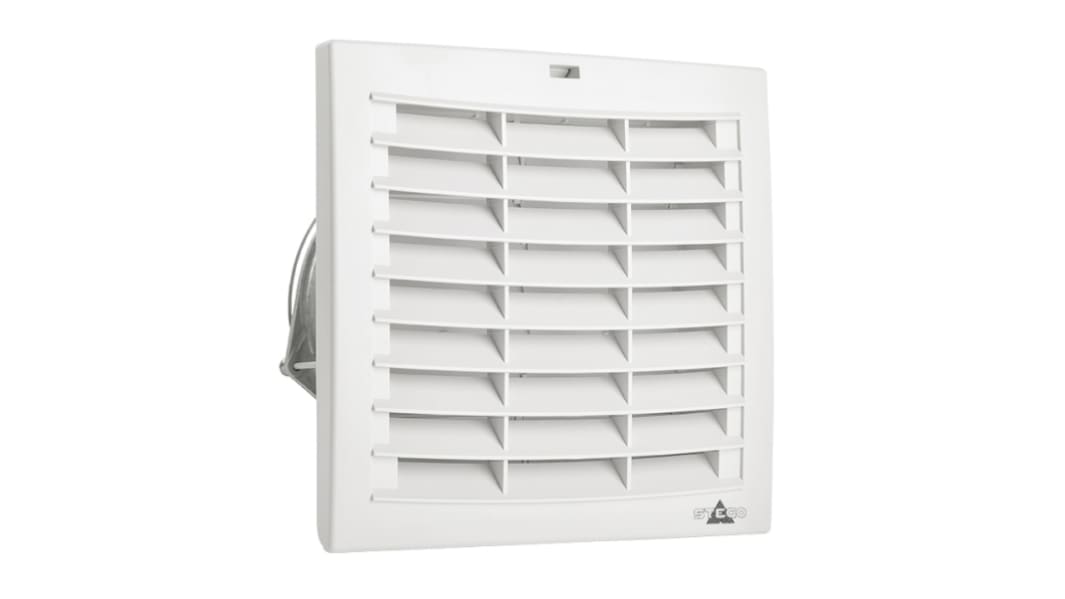

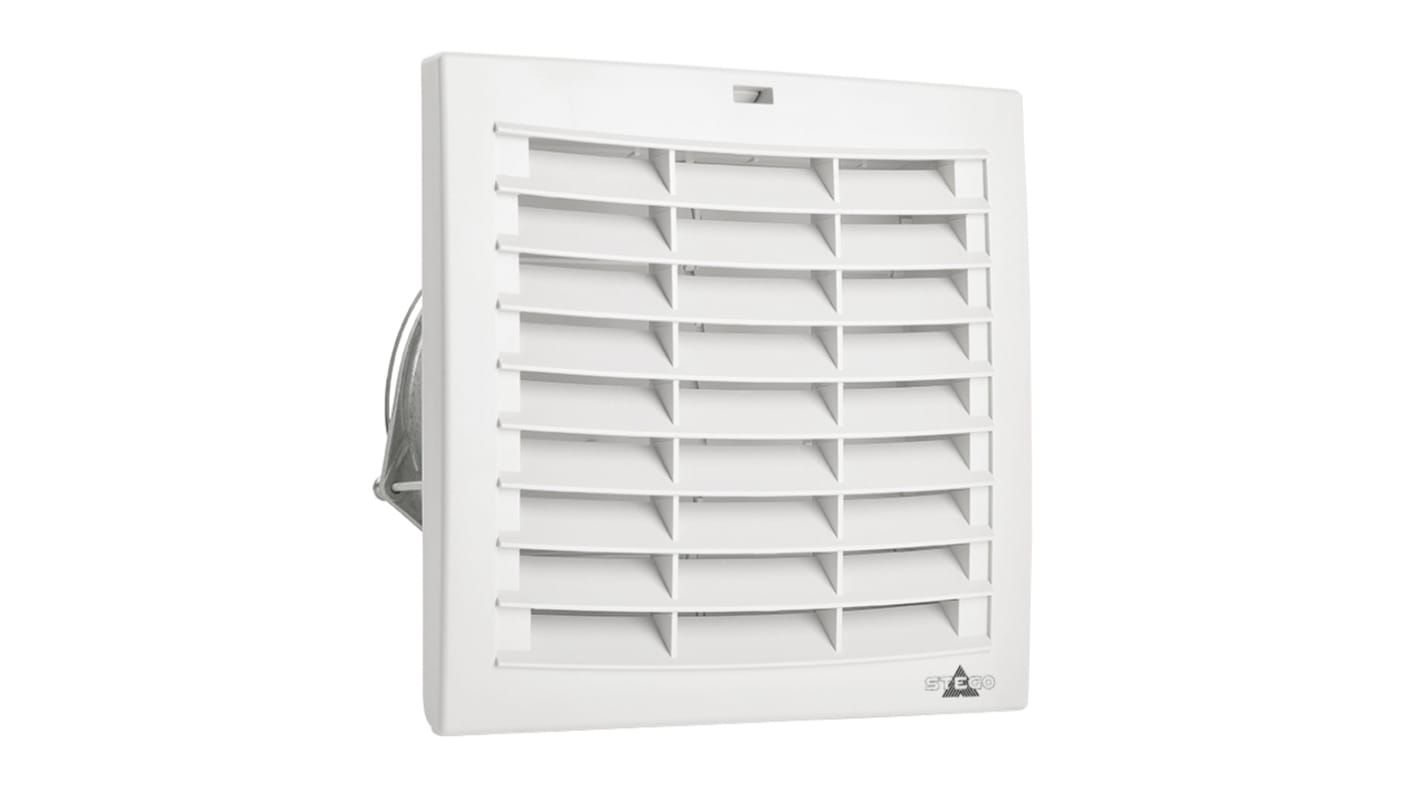

STEGO FPI/FPO 018 Series Filter Fan, 24 V dc, DC Operation, 156m³/h Filtered, 178m³/h Unimpeded, IP54, 176 x 176mm
- RS Stock No.:
- 182-9841
- Mfr. Part No.:
- 01872.2-30
- Brand:
- STEGO
2 In stock - FREE next working day delivery available
Added
Price Each
£227.52
(exc. VAT)
£273.02
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £227.52 |
| 5 + | £224.56 |
- RS Stock No.:
- 182-9841
- Mfr. Part No.:
- 01872.2-30
- Brand:
- STEGO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
New air-flap outlet technology for high airflow
Easy mounting
Protection type test/Environmental rating by independent testing institutes (VDE & UL)
Two systems for optimal airflow (FPI/FPO)
Standard enclosure cut-out sizes
One filter mat
Easy mounting
Protection type test/Environmental rating by independent testing institutes (VDE & UL)
Two systems for optimal airflow (FPI/FPO)
Standard enclosure cut-out sizes
One filter mat
Specifications
Attribute | Value |
|---|---|
| Unimpeded Air Flow | 178m³/h |
| Noise Level | 63dB |
| Filtered Air Flow | 156m³/h |
| Input Current | 500mA |
| Input Power Rating | 12W |
| AC or DC Operation | DC |
| Face Dimensions | 176 x 176mm |
| Installation Depth | 117mm |
| Supply Voltage | 24 V dc |
| Face Height | 176mm |
| Face Width | 176mm |
| IP Rating | IP54 |
| Configuration | Square |
| Termination Type | Screw |
| Special Features | Protection Type Test/Environmental Rating by Independent Testing Institutes (VDE and UL), Two Systems for Optimal Airflow (FPI/FPO) |
| Series | FPI/FPO 018 |
| Bearing Type | Ball |
