Omron Fibre Optic Sensor, PNP Output, 720 mW, IP50, 12 → 24 V dc
- RS Stock No.:
- 821-0028
- Mfr. Part No.:
- E3X-HD44
- Brand:
- Omron
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£204.32
(exc. VAT)
£245.18
(inc. VAT)
- RS Stock No.:
- 821-0028
- Mfr. Part No.:
- E3X-HD44
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Output Type | PNP | |
| Terminal Type | Connector | |
| Response Time | 55 μs | |
| Light Source | Red LED | |
| Electrical Connection | M8 Connector | |
| Power Consumption | 720 mW | |
| Switching Frequency | 60 Hz | |
| IP Rating | IP50 | |
| Housing Material | PC | |
| Supply Voltage | 12 → 24 V dc | |
| Length | 104.8mm | |
| Width | 10mm | |
| Dimensions | 104.8 x 10 x 33.5 mm | |
| Depth | 33.5mm | |
| Maximum Operating Temperature | +45 (Groups of 11 → 16 Amplifiers) °C, +50 (Groups 3 → 10 Amplifiers) °C, +55 (Groups 1 → 2 Amplifiers) °C | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Omron | ||
Output Type PNP | ||
Terminal Type Connector | ||
Response Time 55 μs | ||
Light Source Red LED | ||
Electrical Connection M8 Connector | ||
Power Consumption 720 mW | ||
Switching Frequency 60 Hz | ||
IP Rating IP50 | ||
Housing Material PC | ||
Supply Voltage 12 → 24 V dc | ||
Length 104.8mm | ||
Width 10mm | ||
Dimensions 104.8 x 10 x 33.5 mm | ||
Depth 33.5mm | ||
Maximum Operating Temperature +45 (Groups of 11 → 16 Amplifiers) °C, +50 (Groups 3 → 10 Amplifiers) °C, +55 (Groups 1 → 2 Amplifiers) °C | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- CN

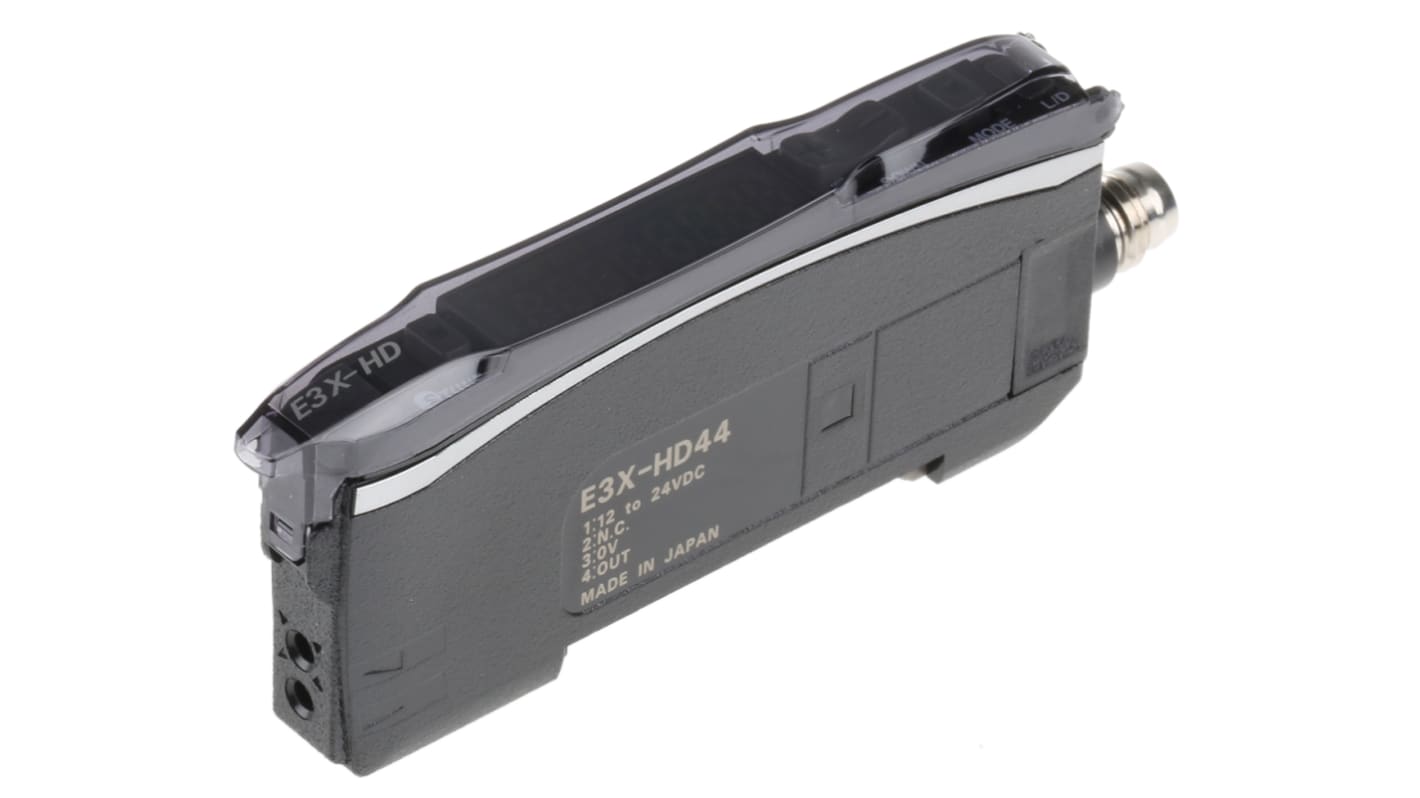

Omron Fibre Optic Sensor, PNP Output, 12 to 24V DC Supply Voltage - E3X-HD44
This fibre optic sensor utilises advanced optical sensing technology tailored for high-speed performance in industrial settings. With PNP output capability, it is well-suited for automation applications that require precise detection of objects and materials. Its robust design and rapid response time contribute to its effectiveness in various operational conditions.
Features & Benefits
• PNP output type facilitates integration into automation systems
• Utilises a red LED light source for efficient sensing
• M8 connector provides a secure and dependable electrical connection
• IP50 rating enables operation in dusty environments
• Utilises a red LED light source for efficient sensing
• M8 connector provides a secure and dependable electrical connection
• IP50 rating enables operation in dusty environments
Applications
• Object detection in manufacturing processes
• Robotic automation systems
• Packaging equipment for precise alignment
• Conveyor systems to maintain operational integrity
• Robotic automation systems
• Packaging equipment for precise alignment
• Conveyor systems to maintain operational integrity
How does the power consumption impact operation?
The low power consumption of 720mW helps lower energy costs while maintaining performance.
Is it easy to connect to existing systems?
Yes, it features an M8 connector for simple integration into various automation setups.
What is the maximum temperature it can handle?
The sensor can operate at a maximum temperature of +45°C in specific configurations.
How does it ensure fast detection rates?
The sensor's 55μs response time allows quick and accurate object detection without delays.
