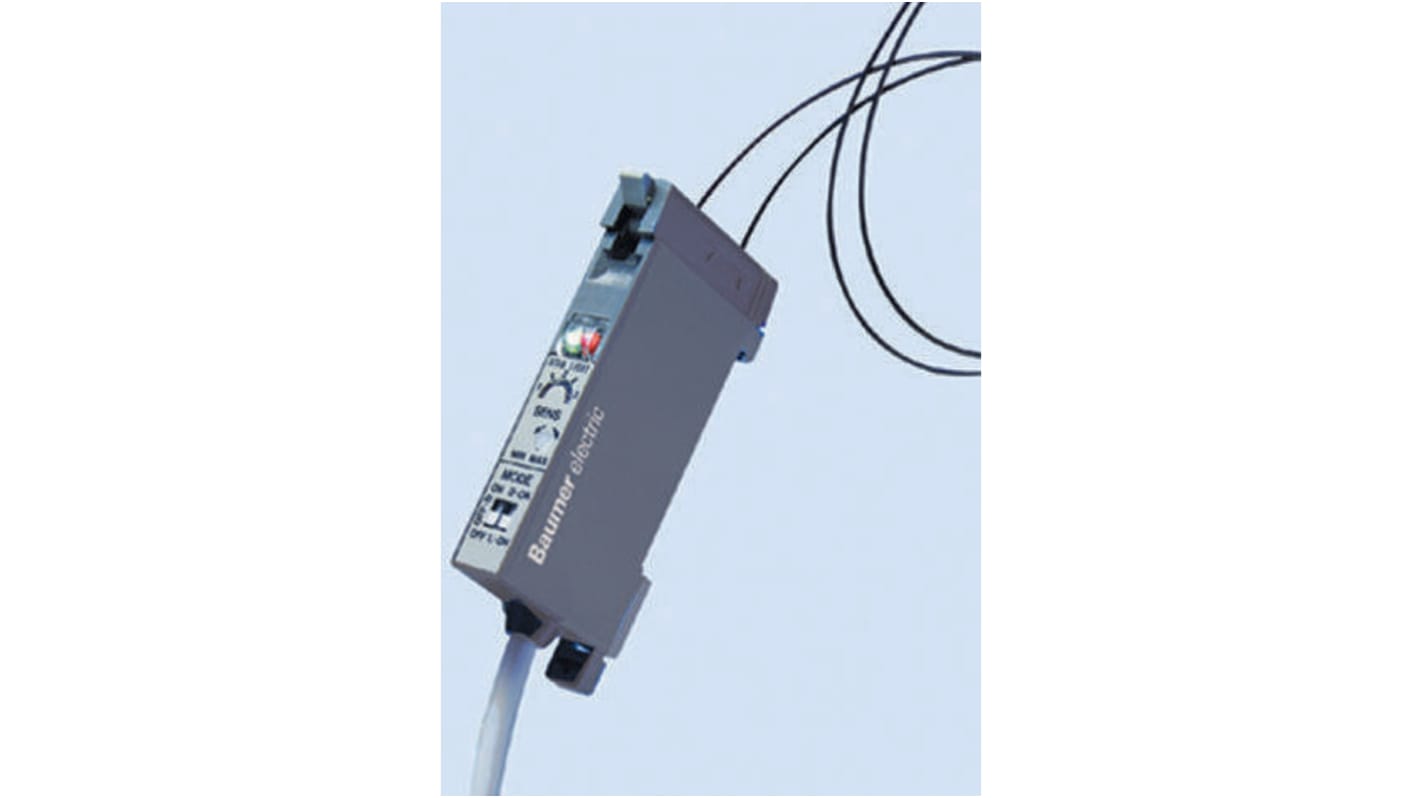

Baumer Plastic Fibre Optic Sensor 70 mm, PNP Output, IP40, 10 → 30 V dc
- RS Stock No.:
- 410-7975
- Mfr. Part No.:
- FVDK10P81Y0
- Brand:
- Baumer
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£189.38
(exc. VAT)
£227.26
(inc. VAT)
- RS Stock No.:
- 410-7975
- Mfr. Part No.:
- FVDK10P81Y0
- Brand:
- Baumer
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Baumer | |
| Detection Range | 70 mm | |
| Output Type | PNP | |
| Fibre Optic Type | Plastic | |
| Response Time | <0.5 ms | |
| Light Source | Red LED | |
| Electrical Connection | Cable | |
| IP Rating | IP40 | |
| Housing Material | ABS, PC | |
| Supply Voltage | 10 → 30 V dc | |
| Length | 29.7mm | |
| Width | 10mm | |
| Maximum Operating Temperature | +60°C | |
| Dimensions | 29.7 x 10 x 60 mm | |
| Depth | 60mm | |
| Minimum Operating Temperature | -20°C | |
Select all | ||
|---|---|---|
Brand Baumer | ||
Detection Range 70 mm | ||
Output Type PNP | ||
Fibre Optic Type Plastic | ||
Response Time <0.5 ms | ||
Light Source Red LED | ||
Electrical Connection Cable | ||
IP Rating IP40 | ||
Housing Material ABS, PC | ||
Supply Voltage 10 → 30 V dc | ||
Length 29.7mm | ||
Width 10mm | ||
Maximum Operating Temperature +60°C | ||
Dimensions 29.7 x 10 x 60 mm | ||
Depth 60mm | ||
Minimum Operating Temperature -20°C | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- CH
Low Hysteresis - Series 10
Manual sensitivity adjustment
Output alarm
Timer function
Light ON/dark ON selectable output
Short circuit and reverse polarity protected
DIN rail mount
Output alarm
Timer function
Light ON/dark ON selectable output
Short circuit and reverse polarity protected
DIN rail mount
Fibre Optic Amplifiers
Note
Fibres are shown with amplifiers for illustration purposes and are not included. Please select suitable fibres from the accessories table.
