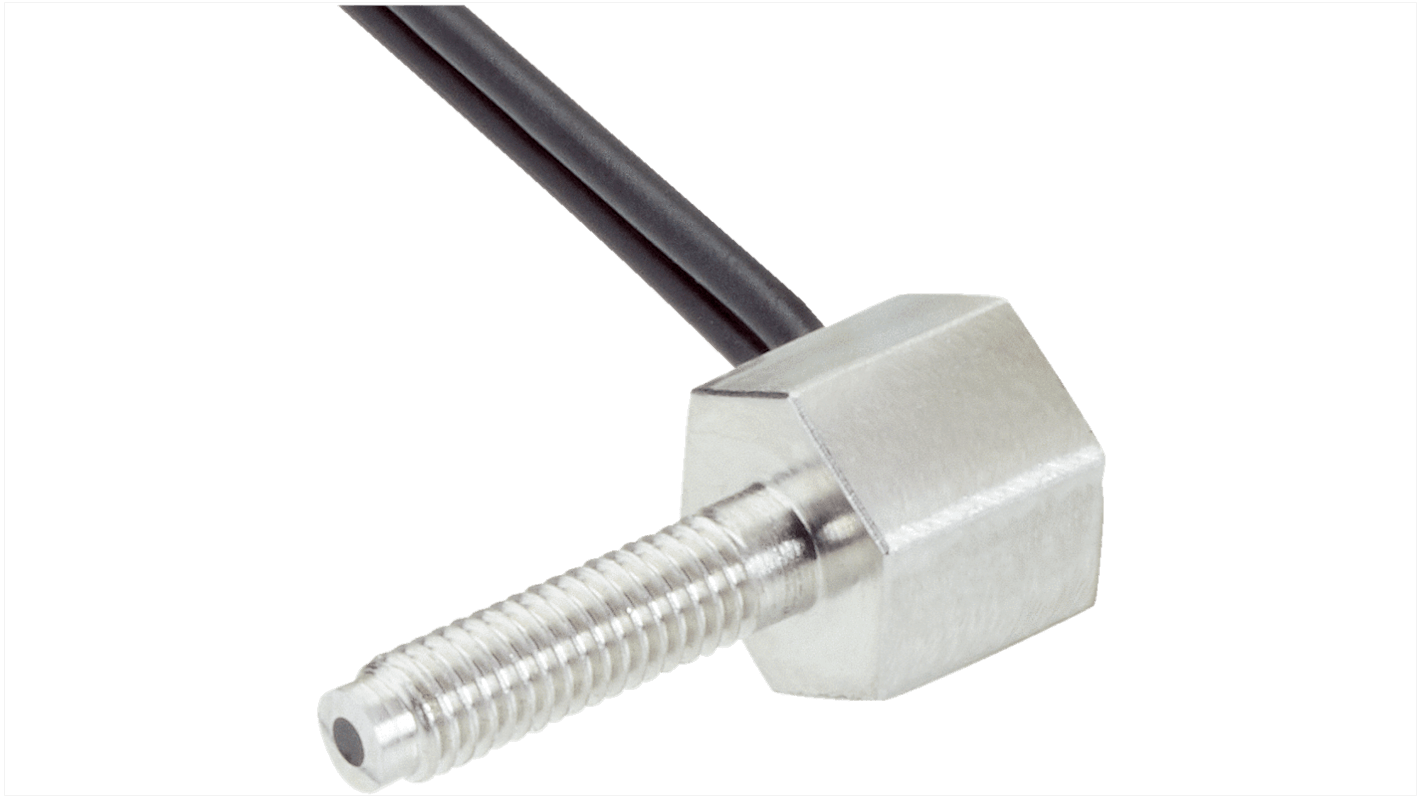

SICK Plastic Fibre Optic Sensor 280 mm
- RS Stock No.:
- 285-4068
- Mfr. Part No.:
- LLTE-R1300111020E3
- Brand:
- SICK
Subtotal (1 unit)*
£71.42
(exc. VAT)
£85.70
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £71.42 |
*price indicative
- RS Stock No.:
- 285-4068
- Mfr. Part No.:
- LLTE-R1300111020E3
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SICK | |
Detection Range | 280 mm | |
Fibre Optic Type | Plastic | |
Electrical Connection | M3 | |
Housing Material | Stainless Steel | |
Length | 2m | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +60°C | |
Select all | ||
---|---|---|
Brand SICK | ||
Detection Range 280 mm | ||
Fibre Optic Type Plastic | ||
Electrical Connection M3 | ||
Housing Material Stainless Steel | ||
Length 2m | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +60°C | ||
- COO (Country of Origin):
- MY
Overview
Special ambient conditions require special solutions. A common reason for use of fibber optic sensors is tight installation space. Fibbers from SICK can be laid flexibly at the most remote detection locations. They are space-saving and can be mounted in nearly any area thanks to the tiny size of the end sleeves. The product range is structured for good clarity as well as quick generation of new variants and also offers an excellent price/performance ratio.
Combined with SICK fibber optic sensors, the fibbers can be used for the widest range of detection tasks, including strict precision requirements.
At a glance
Proximity and through-beam fibbers
Threaded and smooth sleeve heads available
Axial and radial fibber optic head alignment available
Fibber optic heads with tiny dimensions
Ambient condition-specific fibber lengths
Product range constantly being extended to include new variants
Excellent price/performance ratio
Threaded and smooth sleeve heads available
Axial and radial fibber optic head alignment available
Fibber optic heads with tiny dimensions
Ambient condition-specific fibber lengths
Product range constantly being extended to include new variants
Excellent price/performance ratio
Your Benefit
Simple installation
Solutions for difficult-to-access installation sites
High degree of economic efficiency
Compact mechanical engineering thanks to the minimal space requirements of the fibers
Solution for a wide range of detection tasks
Solutions for difficult-to-access installation sites
High degree of economic efficiency
Compact mechanical engineering thanks to the minimal space requirements of the fibers
Solution for a wide range of detection tasks
Applications
