- RS Stock No.:
- 290-8861
- Brand:
- RS PRO
View all Fibre Optic Cable
2 In stock - FREE next working day delivery available
Price 1 Reel of 500 Metre(s)
£745.46
(exc. VAT)
£894.55
(inc. VAT)
Reel(s) | Per Reel | Per Metre* |
1 + | £745.46 | £1.491 |
*price indicative |
- RS Stock No.:
- 290-8861
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

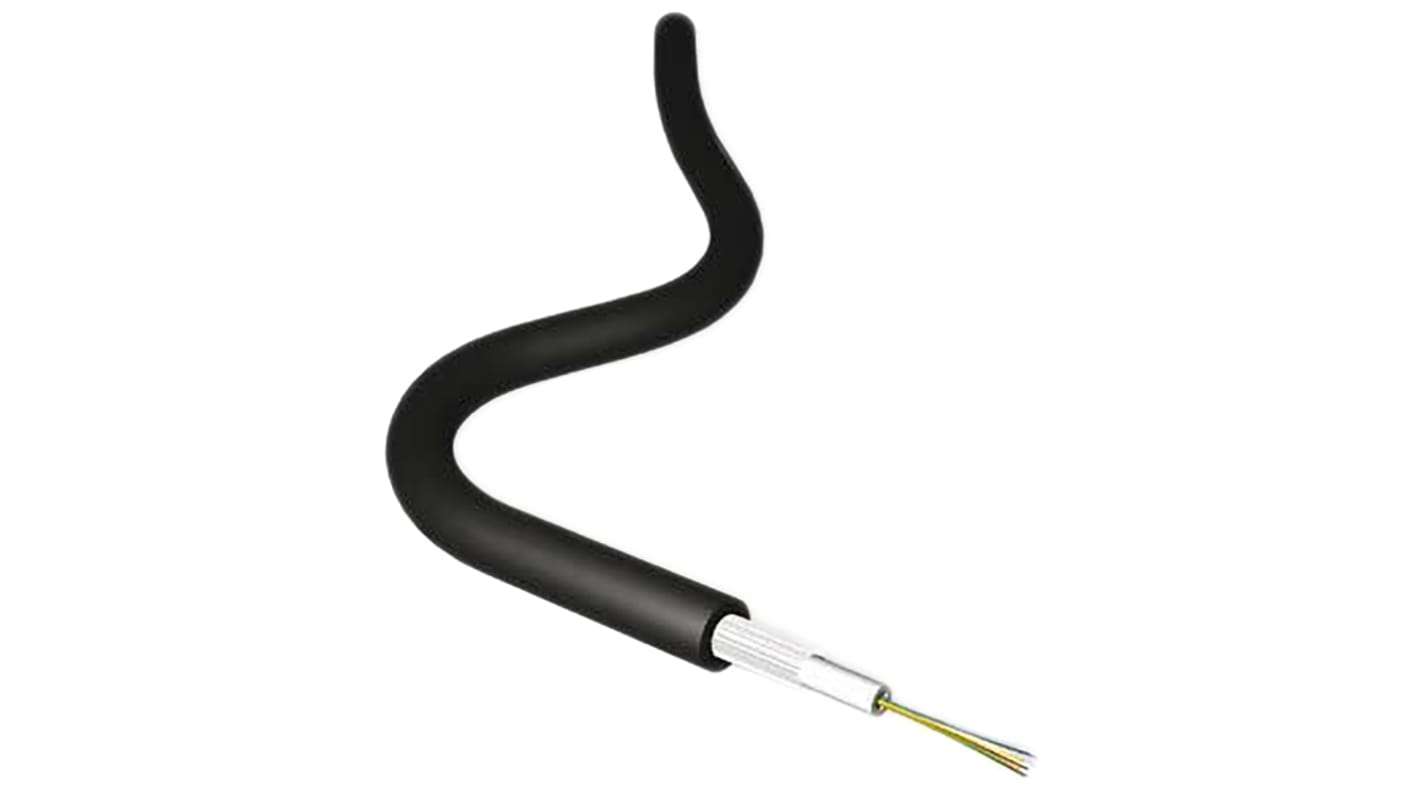

RS PRO Multi Mode Fibre Optic Cable Unterminated 4 Core 0.0625 mm 500 m
Looking for a high-quality, multi-mode optical cable to use in Local Area Network applications? This fibre-optic cable from RS PRO contains four 250μ fibres, which are colour-marked for easy identification.
The fibres are housed within a polyester tube filled with gel to prevent water from entering and damaging the fibres. This is surrounded by Kevlar® yarn for additional protection and strength. The cable is also fitted with a low-smoke, zero-halogen (LSZH) sheath that minimises the amount of smoke and toxic gases emitted in the event of a fire, making it easier for people to evacuate the area. This makes the cable especially suitable for poorly ventilated areas, such as tunnels or high-rise buildings.
The cable meets Euroclass Eca standards for basic fire protection, meaning it can be safely installed in buildings with fire requirements. Optical cables of this kind are commonly used to manipulate and transfer data at high speeds.
The fibres are housed within a polyester tube filled with gel to prevent water from entering and damaging the fibres. This is surrounded by Kevlar® yarn for additional protection and strength. The cable is also fitted with a low-smoke, zero-halogen (LSZH) sheath that minimises the amount of smoke and toxic gases emitted in the event of a fire, making it easier for people to evacuate the area. This makes the cable especially suitable for poorly ventilated areas, such as tunnels or high-rise buildings.
The cable meets Euroclass Eca standards for basic fire protection, meaning it can be safely installed in buildings with fire requirements. Optical cables of this kind are commonly used to manipulate and transfer data at high speeds.
Features and Benefits
Single, loose-tube cable
Fibre-optic
Connector A is an unterminated type
Connector B is an unterminated type
Core diameter of 0.0625 mm
Low Smoke Zero Halogen (LSZH) fire behaviour
Length of 500 m
Maximum pulling tension of 700 N
Minimum bend radius of 69 mm
Four cores
Multi-mode propagation
Black sheath colour
Low Smoke Zero Halogen (LSZH) sheath material
Euroclass Eca standards met
Unterminated
Fibre-optic
Connector A is an unterminated type
Connector B is an unterminated type
Core diameter of 0.0625 mm
Low Smoke Zero Halogen (LSZH) fire behaviour
Length of 500 m
Maximum pulling tension of 700 N
Minimum bend radius of 69 mm
Four cores
Multi-mode propagation
Black sheath colour
Low Smoke Zero Halogen (LSZH) sheath material
Euroclass Eca standards met
Unterminated
Specifications
Attribute | Value |
---|---|
Length | 500m |
Propagation Mode | Multi Mode |
Terminated/Unterminated | Unterminated |
Core Diameter | 0.0625mm |
Number of Cores | 4 |
Sheath Colour | Black |
Sheath Material | Low Smoke Zero Halogen (LSZH) |
Fire Behaviour | Low Smoke Zero Halogen (LSZH) |
Minimum Bend Radius | 69 mm |
Standards Met | Euroclass Eca |
Maximum Pulling Tension | 700N |
