RS PRO SC to SC Duplex Multi Mode OM4 Fibre Optic Cable, 900μm, Violet, 10m
- RS Stock No.:
- 121-3902
- Brand:
- RS PRO
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 121-3902
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

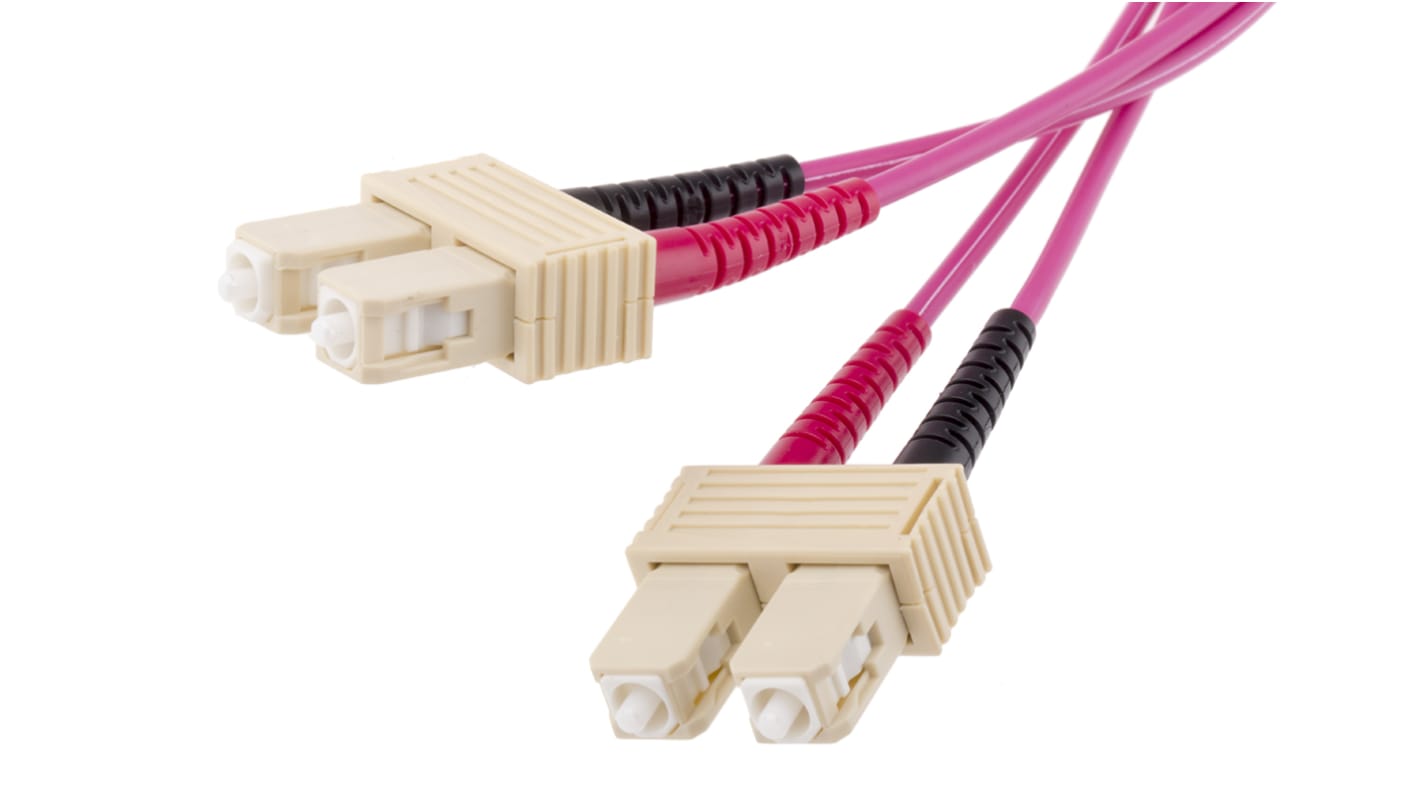

RS Pro Duplex SC-SC OM4 Fibre Optic Patchcords
From the trusted RS Pro brand, a series of SC- SC fibre optic cable assemblies. These superior quality cable assemblies are designed to connect high speed and legacy networks like 10/40/100 Gbit Ethernet and Ethernet. These multimode fibre patch cords have a core fibre size of 50/125 and are terminated with standard SC connectors at each end providing maximum optical performance. The OM4 duplex cables in this range have LSZH violet or aqua jackets and come in various lengths.
Features and Benefits
Low smoke zero halogen
900um / 600um tight buffer
REACH and RoHS material compliant
High optical performance
900um / 600um tight buffer
REACH and RoHS material compliant
High optical performance
Applications
Data centres
Premises cabling in data networks, backbone, riser and horizontal
Supports video, data and voice
Premises cabling in data networks, backbone, riser and horizontal
Supports video, data and voice
Specifications
Attribute | Value |
|---|---|
| Connector 1 | SC |
| Length | 10m |
| Propagation Mode | Multi Mode |
| Connector 2 | SC |
| Terminated/Unterminated | Terminated |
| Core Diameter | 900µm |
| Sheath Colour | Violet |
| Cable Construction | Duplex |
| Fibre Type | OM4 |
| Maximum Operating Temperature | +60°C |
| Sheath Material | Low Smoke Zero Halogen (LSZH) |
| Minimum Operating Temperature | -20°C |
| Attenuation | 0.8 dB |
| Standards Met | 2011/65/EU, EIA-TIA, IEC, IEC 61300-2-1, IEC 61300-2-12, IEC 61300-2-2, IEC 61300-2-4, IEC 61300-2-5, IEC 61300-3-34, IEC 61300-3-4, IEC 61300-3-6, IEC 61754-4, REACH/SvHC Compliant |
