Telegartner T-ST Multimode, Single Mode Simplex Fibre Optic Adapter, 0.4dB Insertion Loss

  • RS Stock No. 206-5245
  • Mfr. Part No. J08081A0002
  • Brand Telegartner
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

T-ST and T-SC Plug Connectors

Zirconium ceramic ferrules and sleeves
On-site assembly with standard commercial tools
Hexagonal crimp width: 4.52 x 10 mm
Pre-fabricated convex front face ensures short polishing times and excellent optical properties
Coupling suitable for multimode and single mode

Insertion loss at couplings: 0.2 dB
Insertion loss at connectors: 0.4 dB
Colour of SC connector/ coupling housing: blue

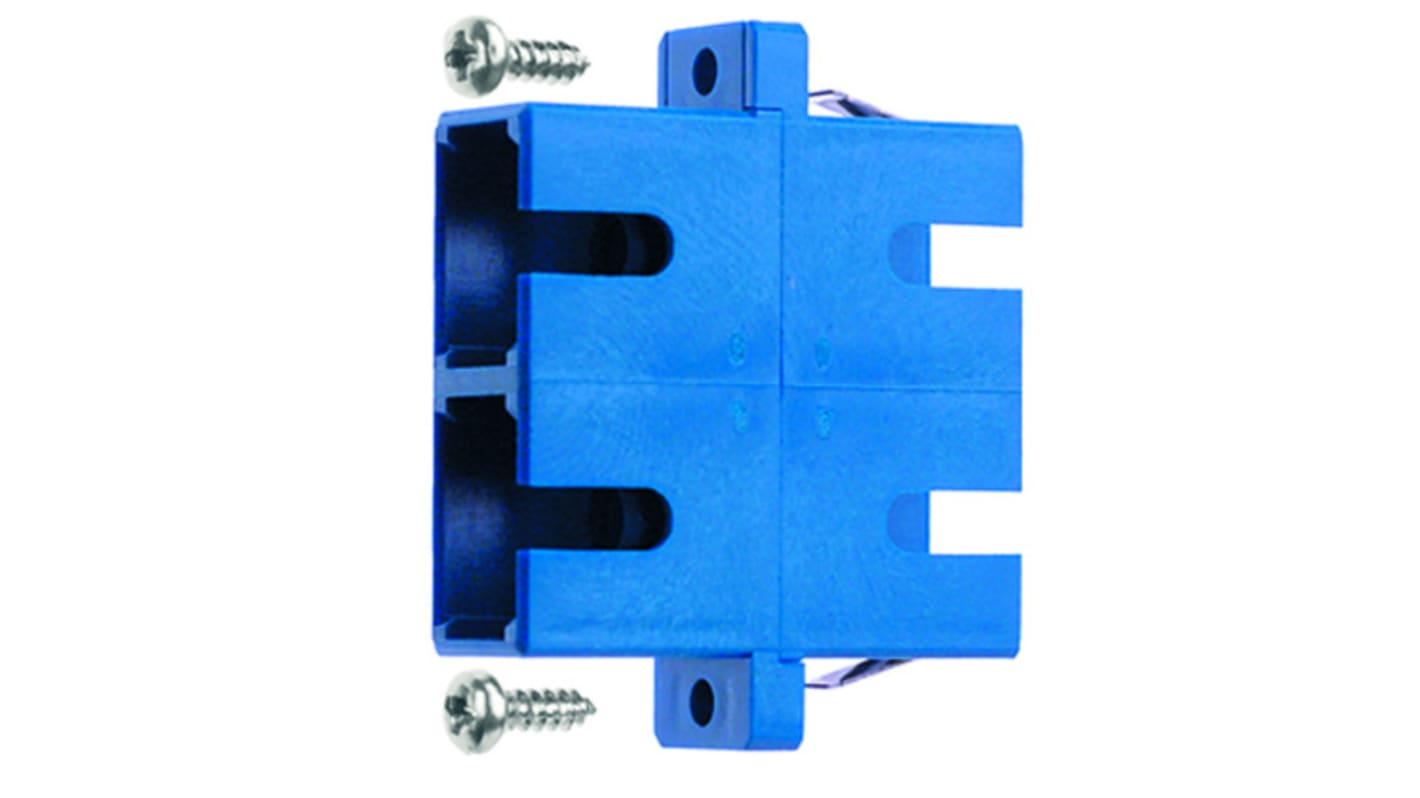

SC couplings with plastic housing including self-cutting screws (snap or click-in mounting)
ST couplings with metal housing
Cable connection Ø: 2.6 → 3 mm

Specifications
Attribute Value
Connector Type T-ST
Single/Multimode Multimode, Single Mode
Simplex/Duplex Simplex
Fibre Size 125µm
Maximum Cable Diameter 3mm
Colour Blue
Insertion Loss 0.4dB
Connector Type A T-ST
Connector Type B T-ST
Series Number J08081R0002
Series T-ST
5 In stock for delivery within 1 working days
Price Each
£ 10.25
(exc. VAT)
£ 12.30
(inc. VAT)
Units
Per unit
1 +
£10.25
Not available for guaranteed pre 9am/10am delivery
