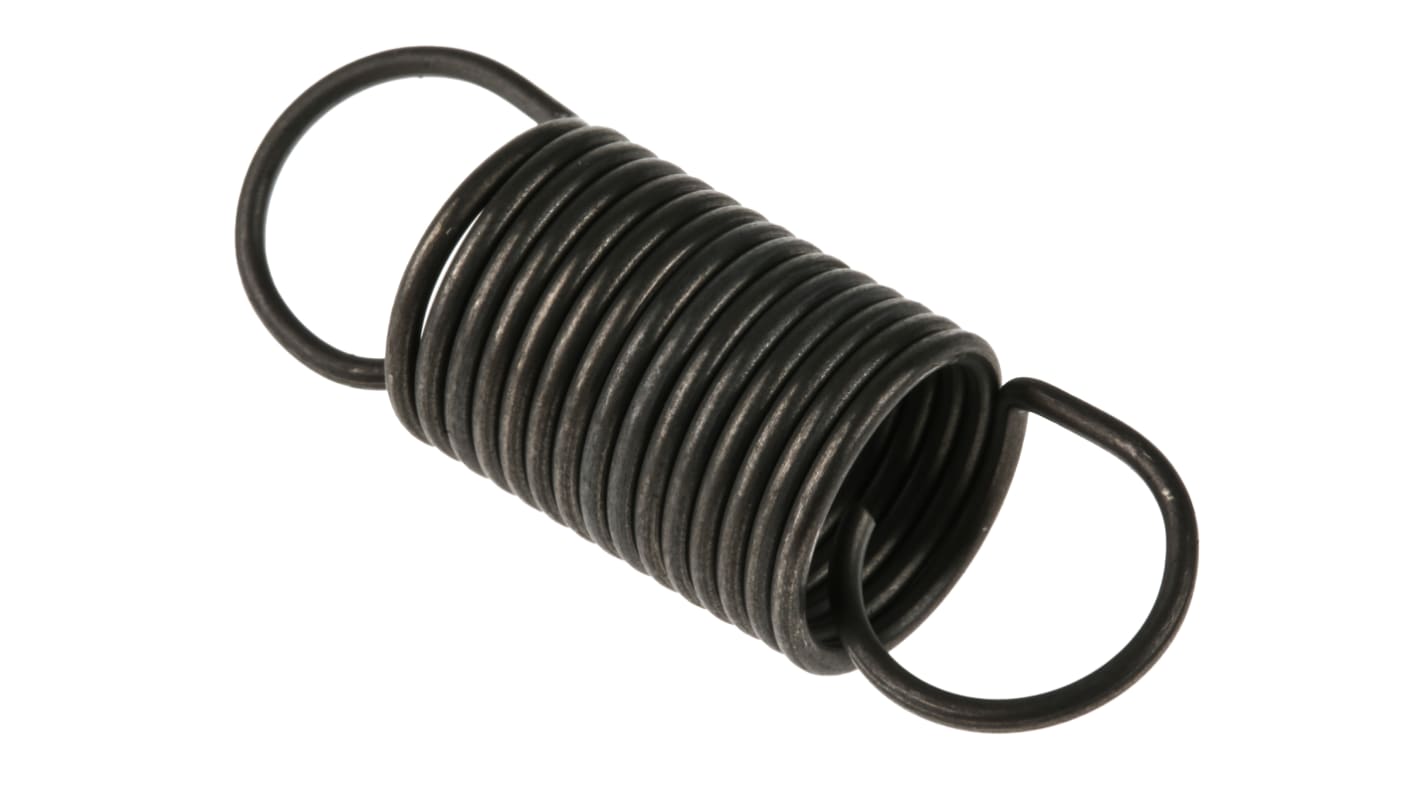

RS PRO Steel Extension Spring, 34.4mm x 12mm
- RS Stock No.:
- 751-893
- Brand:
- RS PRO
Subtotal (1 pack of 10 units)*
£13.33
(exc. VAT)
£16.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,170 unit(s) ready to ship
- Plus 720 unit(s) ready to ship from another location
- Plus 1,350 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £1.333 | £13.33 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 10)
£1.351
(exc. VAT)
£1.621
(inc. VAT)
- RS Stock No.:
- 751-893
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Material | Steel | |
Free Length | 34.4mm | |
Maximum Extended Length | 76.70mm | |
Outside Diameter | 12mm | |
Wire Diameter | 1.1mm | |
Initial Tension | 5.35N | |
Spring Rate | 0.72N/mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Material Steel | ||
Free Length 34.4mm | ||
Maximum Extended Length 76.70mm | ||
Outside Diameter 12mm | ||
Wire Diameter 1.1mm | ||
Initial Tension 5.35N | ||
Spring Rate 0.72N/mm | ||
- COO (Country of Origin):
- GB
RS PRO Steel Extension Spring, 34.4 x 12 mm
If you need to keep two different items together but still allow them to be pulled apart a limited distance, choose this steel extension spring from RS PRO. Its coiled construction absorbs and holds energy, allowing objects to spring back together once the pulling force is released.
The spring features two closed loops that are easy to attach with carabiner clips or simple hooks. This allows you to make a quick but secure connection. The spring itself is made from carbon-steel piano wire, so it can hold a lot of weight and endure high tensile force. This makes it suitable for heavy-duty applications.
This type of extension spring is common on trampolines and garage doors and is also suitable for commercial and industrial machinery. It complies with the Restriction of Hazardous Substances (RoHS) requirements, so it contains no more than trace amounts of any potentially harmful materials.
The spring features two closed loops that are easy to attach with carabiner clips or simple hooks. This allows you to make a quick but secure connection. The spring itself is made from carbon-steel piano wire, so it can hold a lot of weight and endure high tensile force. This makes it suitable for heavy-duty applications.
This type of extension spring is common on trampolines and garage doors and is also suitable for commercial and industrial machinery. It complies with the Restriction of Hazardous Substances (RoHS) requirements, so it contains no more than trace amounts of any potentially harmful materials.
Features and Benefits
- Free length of 34.4 mm
- Initial tension of 35.8 N (Newtons)
- Steel material
- Maximum extended length of 76.7 mm
- Outside diameter of 12 mm
- Spring rate of 0.72 N/mm
- Wire diameter of 1.1 mm
