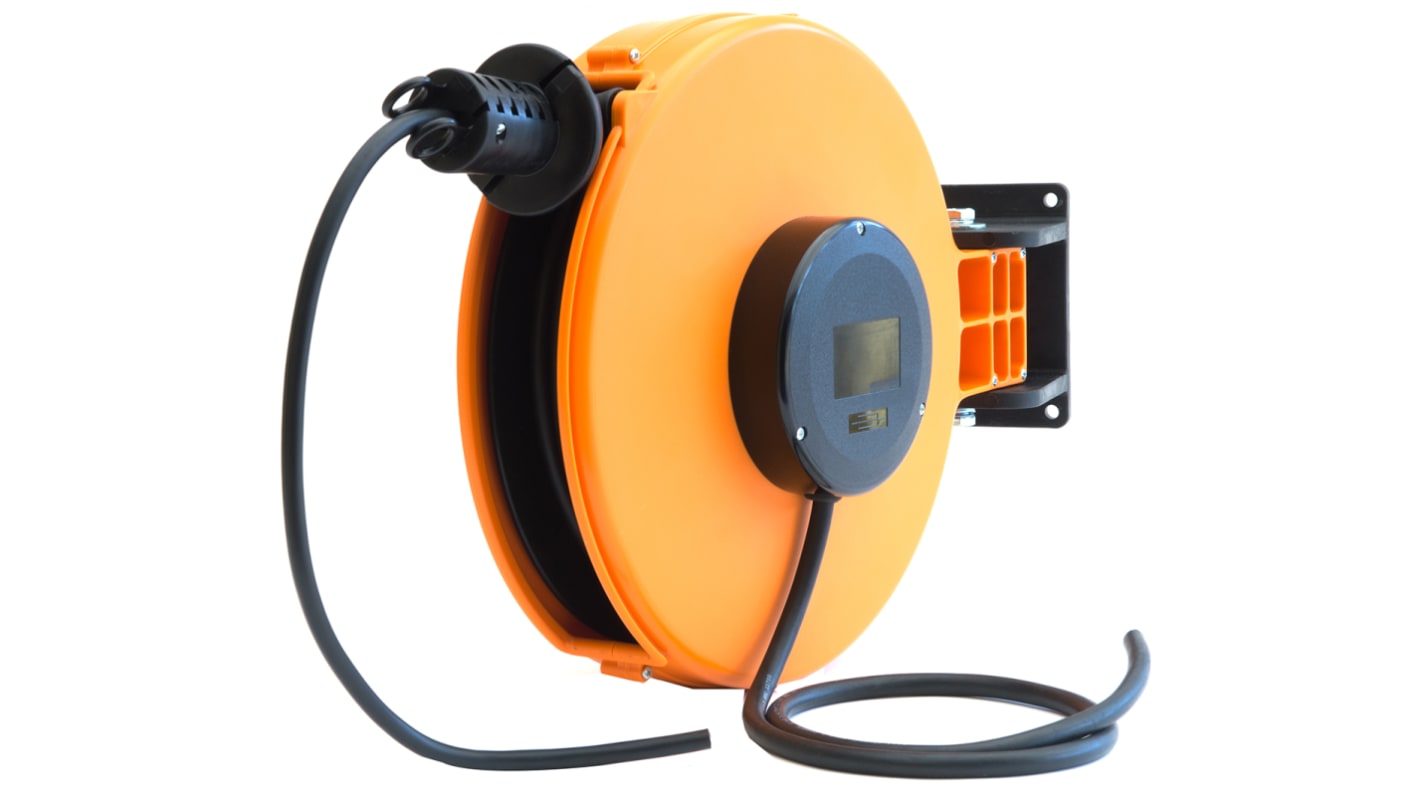

Schill 15m 0 Socket Cable Reel, 230 V, IP40
- RS Stock No.:
- 125-0715
- Mfr. Part No.:
- NSP4674
- Brand:
- Schill
4 In stock - FREE next working day delivery available
Added
Price Each
£652.73
(exc. VAT)
£783.28
(inc. VAT)
| Units | Per unit |
| 1 + | £652.73 |
- RS Stock No.:
- 125-0715
- Mfr. Part No.:
- NSP4674
- Brand:
- Schill
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
FT350 Spring Return Cable Reels
Robust medium sized reel ideal for industry, production bays, garages etc.
The FT350 brings power to any application in a safe and efficient manner. It is a sturdy, all thermoplastic design made from high quality materials, electrically insulated and corrosion resistant.
Depending on requirements, the desired length of cable is unwound; the remaining cable is neatly stored on the reel - safe from dirt and damage. When the cable connection is no longer required, a short pull on the stopper and the cable neatly rewinds. A spring return cable reel means a safe and organised workplace.
The FT350 brings power to any application in a safe and efficient manner. It is a sturdy, all thermoplastic design made from high quality materials, electrically insulated and corrosion resistant.
Depending on requirements, the desired length of cable is unwound; the remaining cable is neatly stored on the reel - safe from dirt and damage. When the cable connection is no longer required, a short pull on the stopper and the cable neatly rewinds. A spring return cable reel means a safe and organised workplace.
Features and Benefits
Adjustable ball stop
Ratched on/off facility
Fused terminal block
0.8mOhm contact resistance
IP40 protection
Heavy duty brass slip ring with silver contacts
For a swivel mounting bracket for these reels, please see RS 125-0717
Ratched on/off facility
Fused terminal block
0.8mOhm contact resistance
IP40 protection
Heavy duty brass slip ring with silver contacts
For a swivel mounting bracket for these reels, please see RS 125-0717
Marcaddy Cable Reels
Specifications
Attribute | Value |
|---|---|
| Product Type | Cable Reel |
| Cable Length | 15m |
| Number of Sockets | 0 |
| IP Rating | IP40 |
| Auto Rewind | Yes |
| Voltage Rating | 230 V |
| Current Rating Unwound | 10A |
| Sheath Material | Rubber |
| Housing Type | Spring Return Cable Reel |
| Cross Sectional Area | 1,5 mm² |
| Number of Cores | 3 |
| Sheath Colour | Black |
