RE934-05E, Double Sided Extender Board Multiadapter With Adaption Circuit Board 69.85 x 69.85 x 1.5mm
- RS Stock No.:
- 897-1480
- Mfr. Part No.:
- RE934-05E
- Brand:
- Roth Elektronik
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 897-1480
- Mfr. Part No.:
- RE934-05E
- Brand:
- Roth Elektronik
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Roth Elektronik | |
| Type | Multiadapter With Adaption Circuit Board | |
| Base Material | Epoxy fibre-glass | |
| Number of Sides | 2 | |
| Dimensions | 69.85 x 69.85 x 1.5mm | |
| Copper Thickness | 35µm | |
| Length | 69.85mm | |
| Thickness | 1.5mm | |
| Width | 69.85mm | |
Select all | ||
|---|---|---|
Brand Roth Elektronik | ||
Type Multiadapter With Adaption Circuit Board | ||
Base Material Epoxy fibre-glass | ||
Number of Sides 2 | ||
Dimensions 69.85 x 69.85 x 1.5mm | ||
Copper Thickness 35µm | ||
Length 69.85mm | ||
Thickness 1.5mm | ||
Width 69.85mm | ||
- COO (Country of Origin):
- CN

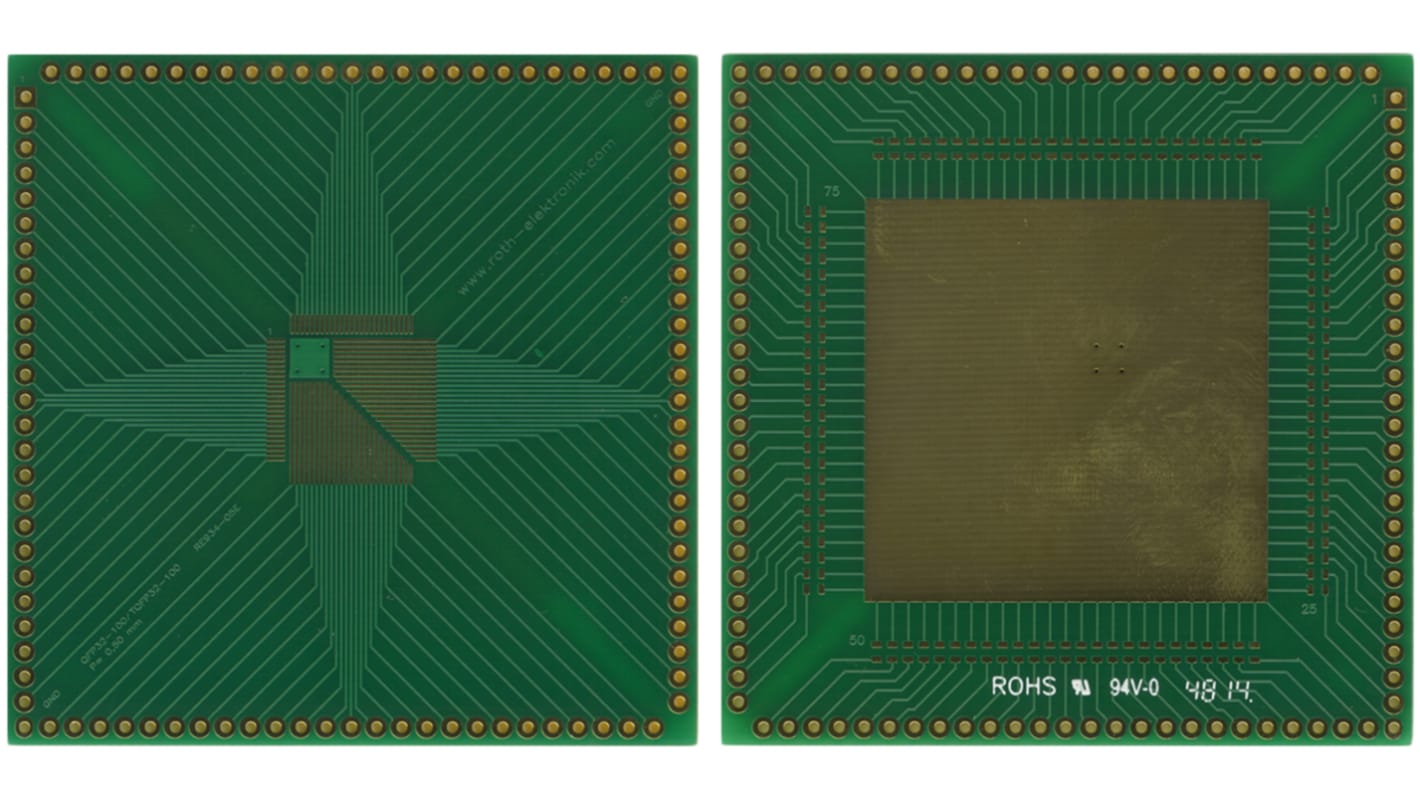

RE934-05E Multiadapter TQFP32 to 100
Adaption circuit board for TQFP32 to TQFP100 (0.50 mm pitch)
Epoxy fibre-glass FR4 1.50 mm
Double-sided 35 μm Cu
Plated through holes (PTH)
Surface chem. Ni/Au
Solder stop mask
Hole spacing 2.54 mm
External switching options on the bottom side with 0603 SMD-Pads one pin each
Resistors or similar components can be mounted directly
Epoxy fibre-glass FR4 1.50 mm
Double-sided 35 μm Cu
Plated through holes (PTH)
Surface chem. Ni/Au
Solder stop mask
Hole spacing 2.54 mm
External switching options on the bottom side with 0603 SMD-Pads one pin each
Resistors or similar components can be mounted directly
