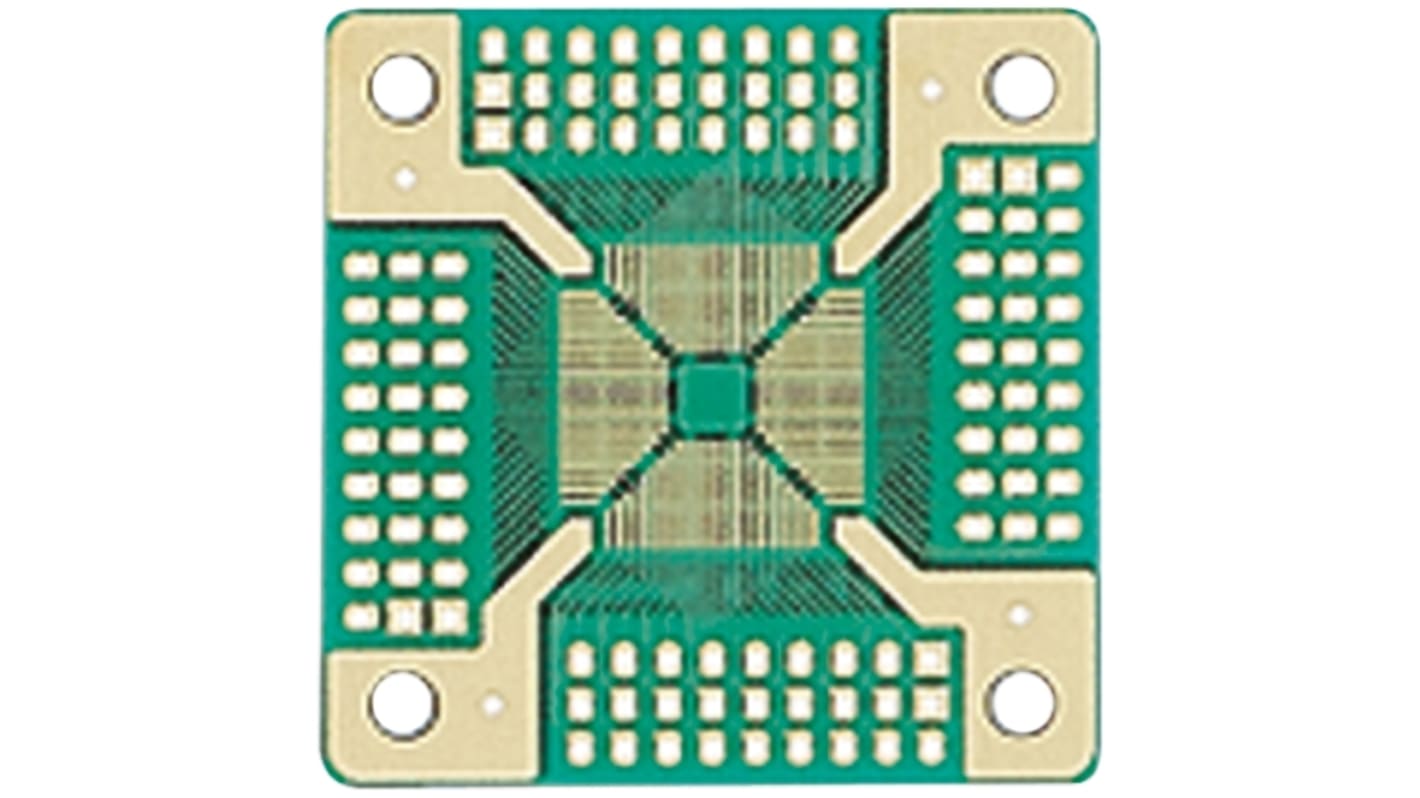

QFP-53, 100 Way Double Sided Extender Board Converter Board FR4 45.72 x 45.72 x 1mm

View this category
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
354-9277
Mfr. Part No.:
QFP-53
Brand:
Sunhayato
Find similar products by selecting one or more attributes.
Select all

Brand

Sunhayato

Type

Converter Board

Number of Contacts

100

Base Material

Epoxy Glass Fabric Laminate

Number of Sides

2

Dimensions

45.72 x 45.72 x 1mm

FR Material Grade

FR4

Length

45.72mm

Thickness

1mm

Width

45.72mm

RoHS Status: Exempt

COO (Country of Origin):
JP

QFP Converter Board


Solder the IC to the centre of the board, then bring wires out from the nearby lands
Use ICs with fewer pins in the centre of the pattern
Please note that some ICs cannot be used due to pin placement etc.
