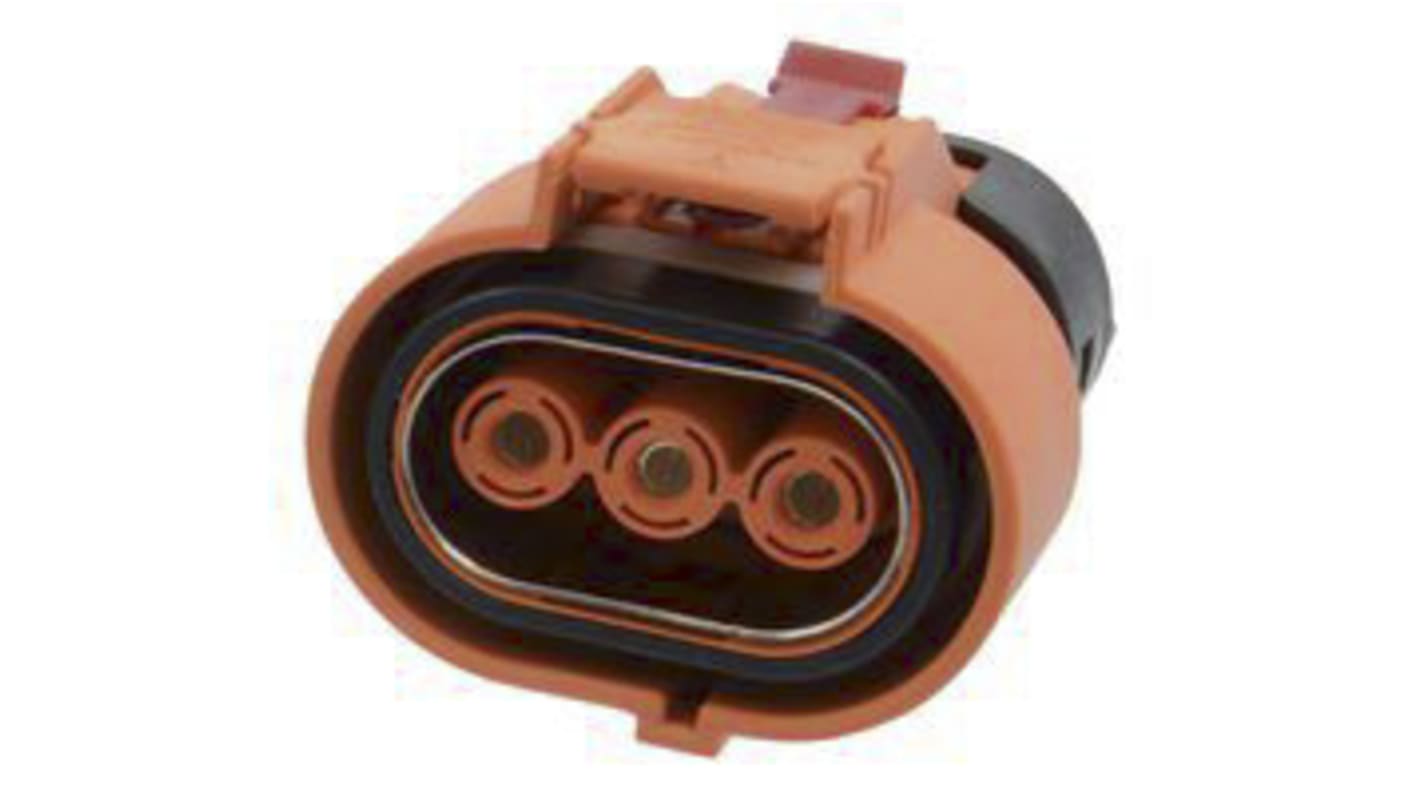

Amphenol, EL RADSOK Plug with HVIL Electric vehicle connector Plug, 7.5 → 70A
- RS Stock No.:
- 124-4074
- Mfr. Part No.:
- ELP2U4
- Brand:
- Amphenol
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 124-4074
- Mfr. Part No.:
- ELP2U4
- Brand:
- Amphenol
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol | |
| Range | RADSOK | |
| Series | EL | |
| Connector Type | RADSOK Plug with HVIL | |
| Number of Rows | 1 | |
| Number of Contacts | 2 | |
| Wire Size | 10 mm² | |
| Current Rating | 7.5 → 70A | |
| Operating Voltage | 800 V ac | |
| Connector Gender | Male | |
| Orientation | Straight | |
| Contact Gender | Female | |
| Termination Method | Crimp | |
| Key Type | U | |
| IP Rating | IP67 | |
| Colour | Orange | |
| Mounting Type | Cable Mount | |
| Priced to Clear | Yes | |
| Pin Diameter | 3.6mm | |
| Applications | EV/HEV | |
| Maximum Operating Temperature | +125°C | |
| For Use With | 2 Position ePower-Lite Receptacle with HVIL | |
| Height | 36.8mm | |
| Minimum Operating Temperature | -40°C | |
| Depth | 57.8mm | |
| Width | 41.8mm | |
| Standards Met | IEC 60529, UL 94 V-0 | |
Select all | ||
|---|---|---|
Brand Amphenol | ||
Range RADSOK | ||
Series EL | ||
Connector Type RADSOK Plug with HVIL | ||
Number of Rows 1 | ||
Number of Contacts 2 | ||
Wire Size 10 mm² | ||
Current Rating 7.5 → 70A | ||
Operating Voltage 800 V ac | ||
Connector Gender Male | ||
Orientation Straight | ||
Contact Gender Female | ||
Termination Method Crimp | ||
Key Type U | ||
IP Rating IP67 | ||
Colour Orange | ||
Mounting Type Cable Mount | ||
Priced to Clear Yes | ||
Pin Diameter 3.6mm | ||
Applications EV/HEV | ||
Maximum Operating Temperature +125°C | ||
For Use With 2 Position ePower-Lite Receptacle with HVIL | ||
Height 36.8mm | ||
Minimum Operating Temperature -40°C | ||
Depth 57.8mm | ||
Width 41.8mm | ||
Standards Met IEC 60529, UL 94 V-0 | ||
- COO (Country of Origin):
- CN
ePower-Lite Connector, U Coding
From Amphenol, the ePower-Lite is a compact and lightweight hybrid electric vehicle connector. With a robust temperature resistant shell, dielectric protection for the connector is assured. The connector is field installable and repairable, and features a CPA to prevent mis-mating.
Using RADSOK technology, the low-resistance connector features higher amperage, lower T-rise and voltage drop. With a compact design and small footprint, the ePower-Lite is ideal for EV and Hybrid applications.
Using RADSOK technology, the low-resistance connector features higher amperage, lower T-rise and voltage drop. With a compact design and small footprint, the ePower-Lite is ideal for EV and Hybrid applications.
Features and Benefits
• Compact and Lightweight Connector
• U-Coding
• Durability of over 100 mating cycles
• Waterproof: IP67
• Touch Proof: IEC 60529
• Flammability: UL 94V-0
• U-Coding
• Durability of over 100 mating cycles
• Waterproof: IP67
• Touch Proof: IEC 60529
• Flammability: UL 94V-0
