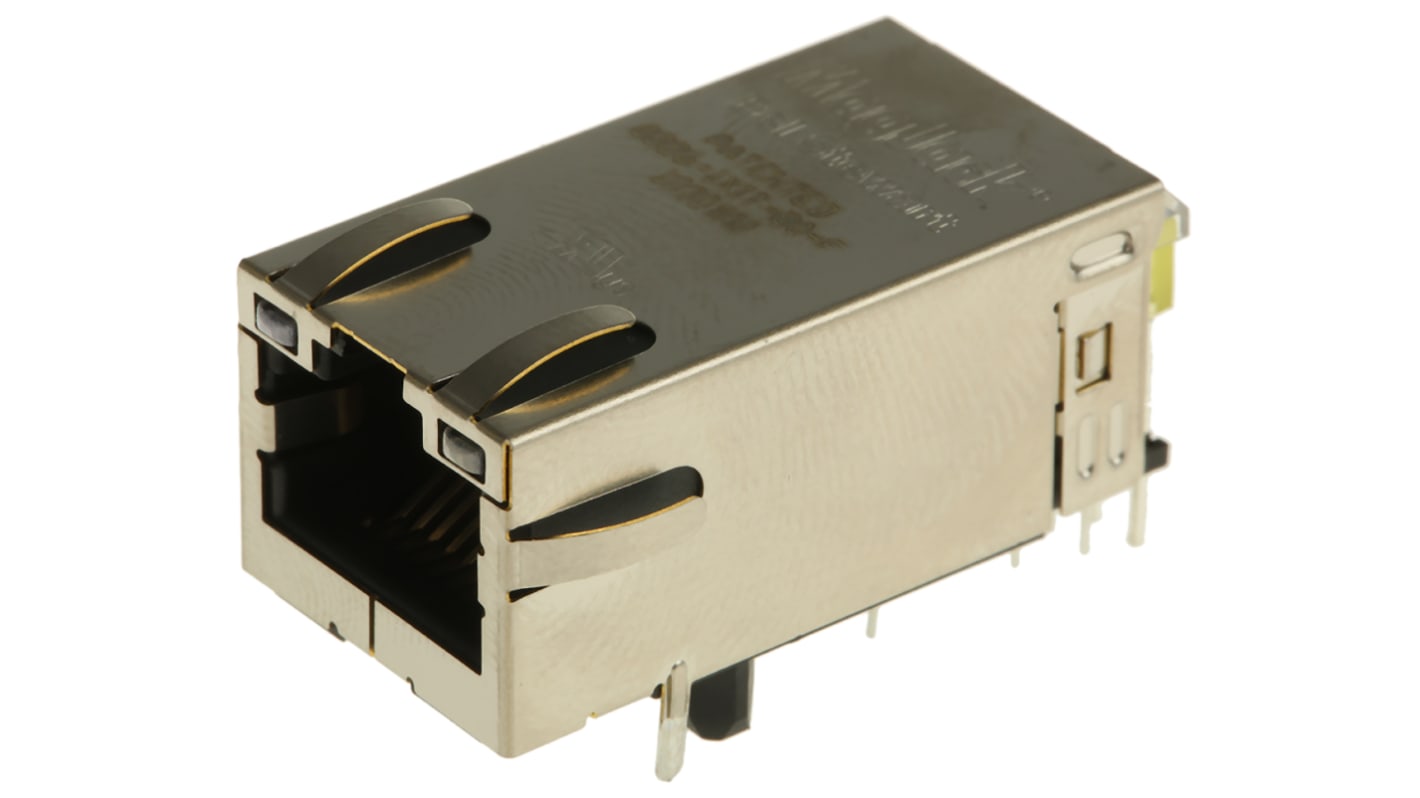

Bel-Stewart MagJack Series Female RJ45 Connector, STP Shield
- RS Stock No.:
- 741-8464
- Mfr. Part No.:
- 0826-1X1T-80-F
- Brand:
- Bel-Stewart
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 741-8464
- Mfr. Part No.:
- 0826-1X1T-80-F
- Brand:
- Bel-Stewart
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bel-Stewart | |
| Gender | Female | |
| Ethernet Connector Type | RJ45 Connector | |
| Shield Type | STP | |
| Orientation | Straight | |
| Length | 13.61mm | |
| Width | 16.79mm | |
| Depth | 33.02mm | |
| Series Number | 826 | |
| Series | MagJack | |
Select all | ||
|---|---|---|
Brand Bel-Stewart | ||
Gender Female | ||
Ethernet Connector Type RJ45 Connector | ||
Shield Type STP | ||
Orientation Straight | ||
Length 13.61mm | ||
Width 16.79mm | ||
Depth 33.02mm | ||
Series Number 826 | ||
Series MagJack | ||
Stewart Magjack Connector Modules
A range of Stewart Magjack connector modules which provide a comprehensive portfolio of integrated devices that combine Bel’s connectors and magnetics. These modules provide the signal conditioning, EMI suppression and signal isolation previously performed by multiple (7+), discrete components. Each Magjack connector employed reduces PCB real estate use by more than 50% per RJ port. All models are highly reliable and excellent quality.
Features & Benefits
Both straight and right angle available
Mounting type: Through hole
