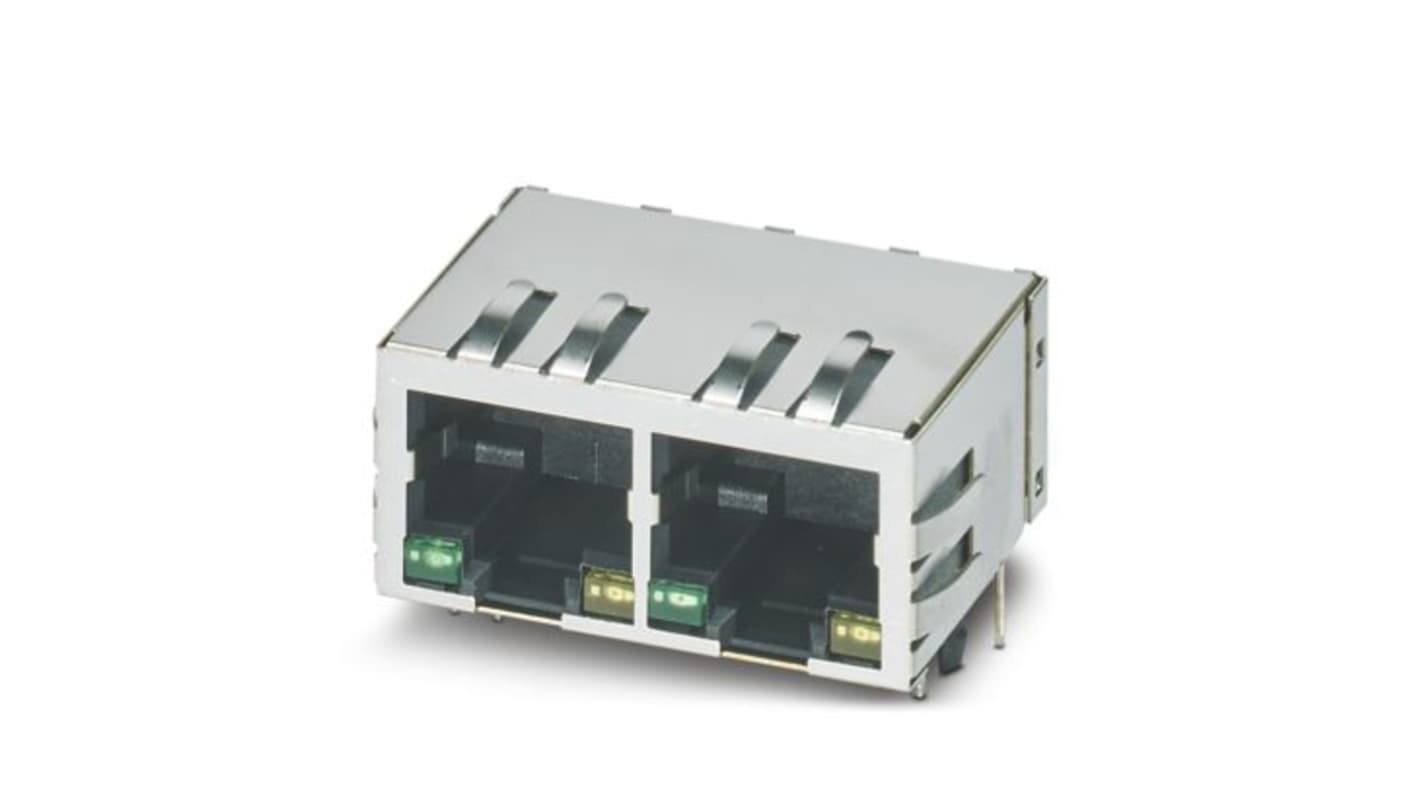

Phoenix Contact CUC-MP-J1ST-A/2R4LB-LED Series RJ45 Connector Female, PCB, Through Hole Shielded Straight 2 Port 8 Way
- RS Stock No.:
- 566-206
- Mfr. Part No.:
- 1149852
- Brand:
- Phoenix Contact
Subtotal (1 pack of 60 units)*
£247.26
(exc. VAT)
£296.70
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 16 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 60 + | £4.121 | £247.26 |
*price indicative
- RS Stock No.:
- 566-206
- Mfr. Part No.:
- 1149852
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| Mount Type | PCB, Through Hole | |
| Number of Ports | 2 | |
| Number of Ways | 8 | |
| Connector Gender | Female | |
| Connector Type | RJ45 | |
| Shield Type | Shielded | |
| Orientation | Straight | |
| IP Rating | IP20 | |
| LED | Yes | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | cUL Recognised, IEC60068-2-27, UL 94 V0, UL Recognised | |
| Width | 31mm | |
| Series | CUC-MP-J1ST-A/2R4LB-LED | |
| Length | 21.2mm | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
Mount Type PCB, Through Hole | ||
Number of Ports 2 | ||
Number of Ways 8 | ||
Connector Gender Female | ||
Connector Type RJ45 | ||
Shield Type Shielded | ||
Orientation Straight | ||
IP Rating IP20 | ||
LED Yes | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Hazardous Area Certification No | ||
Standards/Approvals cUL Recognised, IEC60068-2-27, UL 94 V0, UL Recognised | ||
Width 31mm | ||
Series CUC-MP-J1ST-A/2R4LB-LED | ||
Length 21.2mm | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- TW
The Phoenix Contact RJ45 PCB Connector offers reliable performance for high-speed data transmission in diverse applications. Designed with robustness in mind, this connector meets stringent industrial standards and provides exceptional durability. Its through-hole technology ensures a secure connection to the PCB, while the incorporation of LED indicators enhances operational visibility. With a generous temperature range and superior environmental resistance, this connector is ideal for harsh operating conditions. Whether in automation systems or communications, this connector stands out for its reliability and efficiency.
Offers enhanced data transmission speeds up to 10 Gbps
Exhibits a high degree of protection rated at IP20
Constructed from durable metal ensuring longevity
Features easy installation thanks to its THT wave connection method
Validated for use in temperature extremes from -40 °C to +85 °C
Boasts a compact design with a socket type for space efficiency
Includes housing shield springs to maintain mechanical stability
Eliminates the risk of interference with its shielded construction
Facilitates PoE++ power transmission increasing usability options
