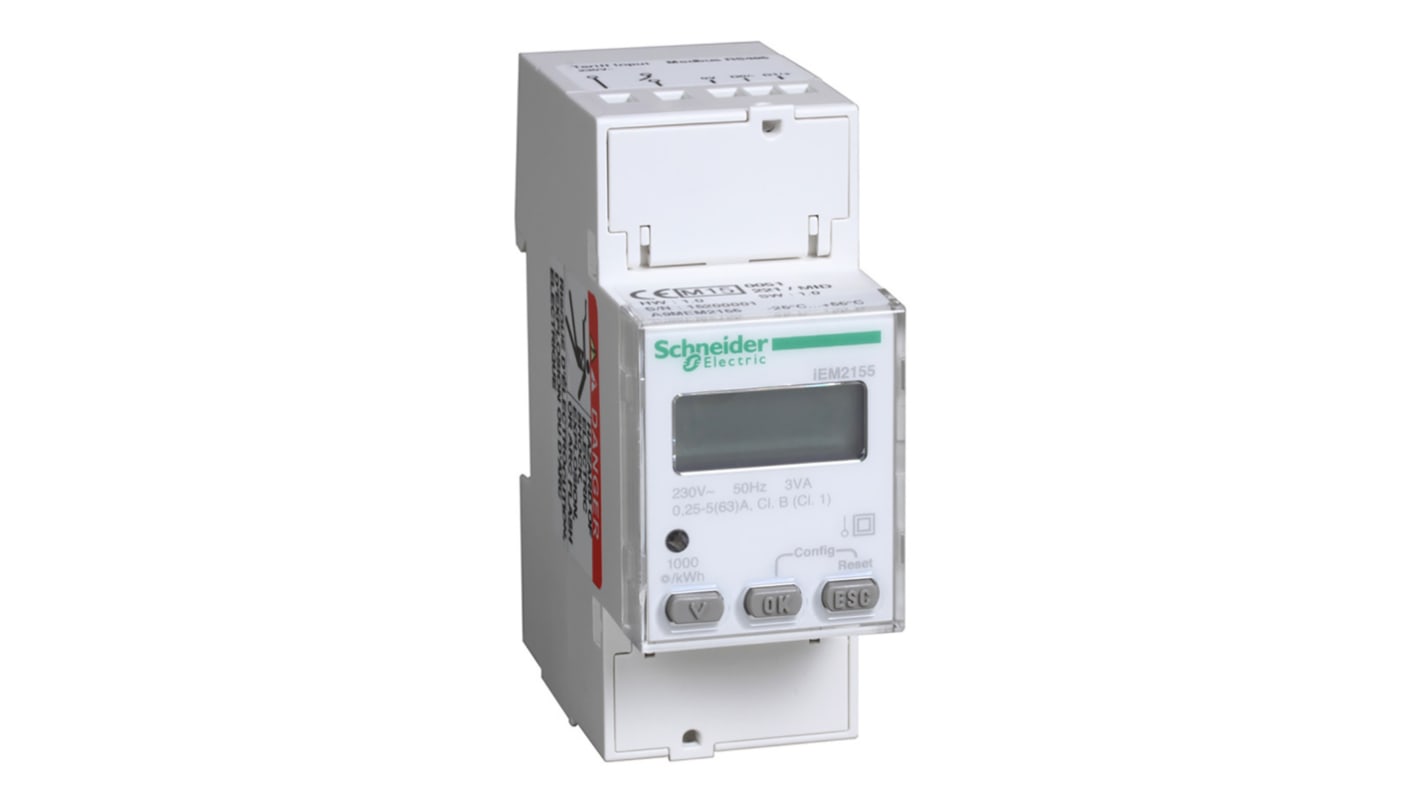

Schneider Electric 1 Phase LCD Energy MeterElectronic
- RS Stock No.:
- 913-9680
- Mfr. Part No.:
- A9MEM2155
- Brand:
- Schneider Electric
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 913-9680
- Mfr. Part No.:
- A9MEM2155
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Series | Acti 9 iEM2000 | |
Display Type | LCD | |
Number of Digits | 8 | |
Number of Phases | 1 | |
Depth | 64mm | |
Minimum Temperature | -25°C | |
Maximum Temperature | +70°C | |
Meter Type | Electronic | |
Maximum Measurement | 63 A, 65 Hz, 999999.99 kWh | |
Measurement Range | 0 → 999999.99 kWh, 45 → 65 Hz, Maximum of 63A | |
Approvals | CE, EN 50470-3, IEC 60529, IEC 62052-11, IEC 62052-31, IEC 62053-21, IEC 62053-23, IEC 62053-31, MID Conforming to EN 50470-1, MID Conforming to EN 50470-3, UL 94 | |
Minimum Measurement | 0 kWh, 45 Hz | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Series Acti 9 iEM2000 | ||
Display Type LCD | ||
Number of Digits 8 | ||
Number of Phases 1 | ||
Depth 64mm | ||
Minimum Temperature -25°C | ||
Maximum Temperature +70°C | ||
Meter Type Electronic | ||
Maximum Measurement 63 A, 65 Hz, 999999.99 kWh | ||
Measurement Range 0 → 999999.99 kWh, 45 → 65 Hz, Maximum of 63A | ||
Approvals CE, EN 50470-3, IEC 60529, IEC 62052-11, IEC 62052-31, IEC 62053-21, IEC 62053-23, IEC 62053-31, MID Conforming to EN 50470-1, MID Conforming to EN 50470-3, UL 94 | ||
Minimum Measurement 0 kWh, 45 Hz | ||
Schneider Electric iEM2000 Series Energy Meter
The Acti 9 iEM2000 series meters offer a cost-attractive, competitive range of single phase DIN Rail mountable energy meters. Combined with communication systems, the iEM2000 series of energy meters make it easy to integrate electrical distribution measurements into your energy management systems.
• Two versions; 40A direct measure (iEM2000 models) & 63A direct measure (iEM2100 models)
• Innovative design- easy to install and operate
• Self-powered
• Electromechanical display (iEM2000 models)
• LCD display (iEM2100 models)
• Compact, 1 or 2 module width
• Without communication - 913-9637, 913-9661, 913-9665, 913-9674
• On-board Modbus or M-Bus communication - 913-9671, 913-9677, 913-9680
• Anti-tamper security features ensure the integrity of your data
• MID-compliant (selected models only) providing certified accuracy and data security
• Innovative design- easy to install and operate
• Self-powered
• Electromechanical display (iEM2000 models)
• LCD display (iEM2100 models)
• Compact, 1 or 2 module width
• Without communication - 913-9637, 913-9661, 913-9665, 913-9674
• On-board Modbus or M-Bus communication - 913-9671, 913-9677, 913-9680
• Anti-tamper security features ensure the integrity of your data
• MID-compliant (selected models only) providing certified accuracy and data security
Applications:
• Energy efficiency and cost management
- Bill verification
- Subbilling and cost allocation, including two tariffs power system management
• Power System management
- Basic electrical parameters such as current, voltage & power
- Bill verification
- Subbilling and cost allocation, including two tariffs power system management
• Power System management
- Basic electrical parameters such as current, voltage & power
