Trumeter 1, 2, 3 Phase LCD Digital Power Meter
- RS Stock No.:
- 267-5584
- Mfr. Part No.:
- VT-PWR-HV
- Brand:
- Trumeter
Subtotal (1 unit)*
£465.33
(exc. VAT)
£558.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £465.33 |
*price indicative
- RS Stock No.:
- 267-5584
- Mfr. Part No.:
- VT-PWR-HV
- Brand:
- Trumeter
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Trumeter | |
Cutout Height | 92mm | |
Cutout Width | 92mm | |
Display Type | LCD | |
Number of Digits | 6 | |
Number of Phases | 1, 2, 3 | |
Meter Type | Digital | |
Select all | ||
---|---|---|
Brand Trumeter | ||
Cutout Height 92mm | ||
Cutout Width 92mm | ||
Display Type LCD | ||
Number of Digits 6 | ||
Number of Phases 1, 2, 3 | ||
Meter Type Digital | ||
RoHS Status: Exempt
- COO (Country of Origin):
- MY
VT-PWR-HV

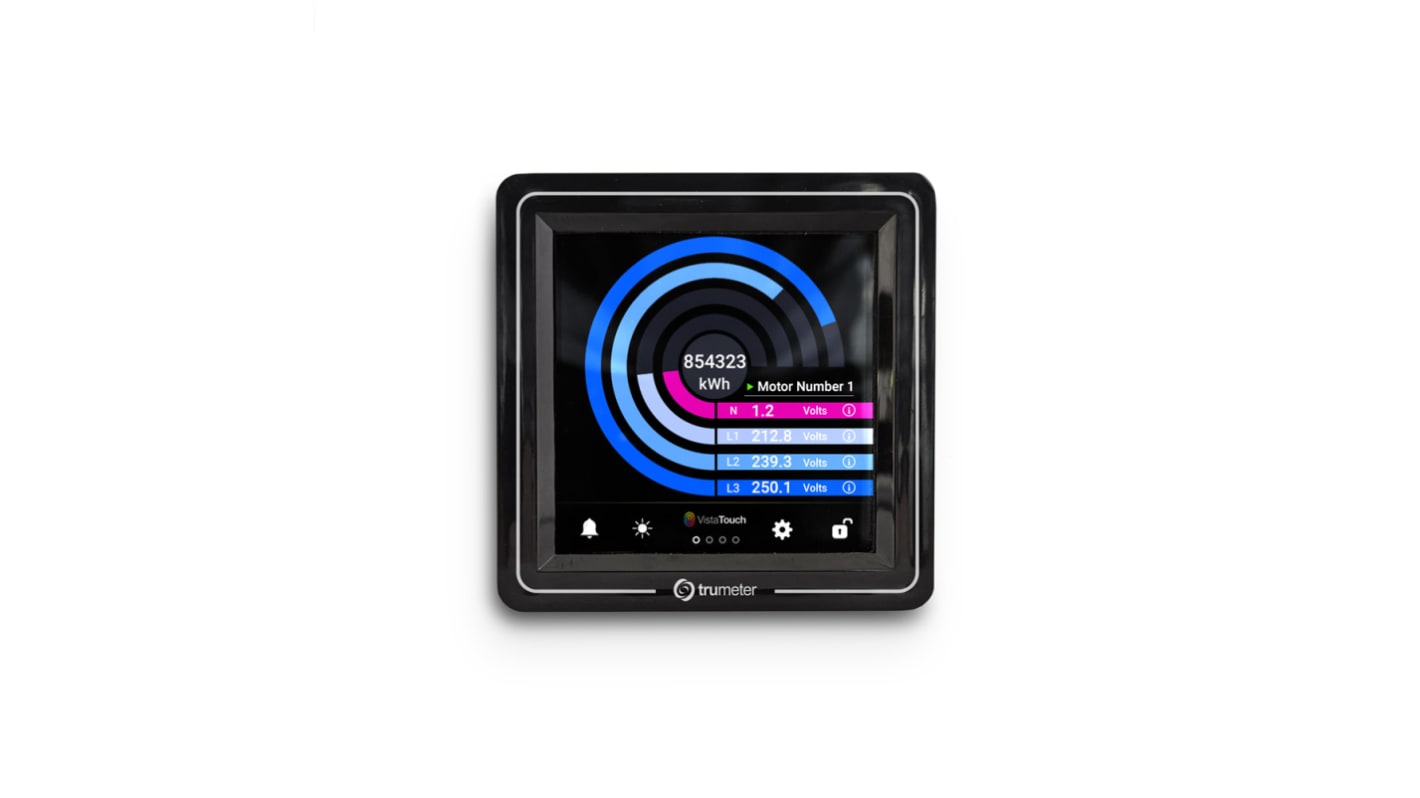

The Trumeter Vista Touch Power (HV) is designed for single, split, and 3-phase applications, offering precise measurement of Active (W), Reactive (Var), and Apparent (VA) power with 1% accuracy across the input range. This High Voltage model is compatible with 100-240VAC/DC power supply units.
The Vista Touch instantly unlocks your data with the powerful remote monitoring platform, Trumeter Cloud. Monitor your reading anytime, anywhere with your free subscription, and receive data recording along with online, SMS, and email alerts. With a vibrant HD graphical display (70mm x 70mm (2.76" x 2.76")), the device offers simple, intuitive touchscreen configuration, user-programmable scales, custom alarm messages, and advanced alarm notifications. It provides clear indication of electrical circuit performance and features programmable Current Transformer (CT) and Potential Transformer (PT) ratios.
The Vista Touch Power supports Modbus® RTU and TCP, comes with Ethernet and RS485 as standard as well as two form C relays. Users can load and save configuration data to a USB flash drive, and it uses industry-standard DIN mounting with modular pluggable quick connect/disconnect connectors.
The Vista Touch instantly unlocks your data with the powerful remote monitoring platform, Trumeter Cloud. Monitor your reading anytime, anywhere with your free subscription, and receive data recording along with online, SMS, and email alerts. With a vibrant HD graphical display (70mm x 70mm (2.76" x 2.76")), the device offers simple, intuitive touchscreen configuration, user-programmable scales, custom alarm messages, and advanced alarm notifications. It provides clear indication of electrical circuit performance and features programmable Current Transformer (CT) and Potential Transformer (PT) ratios.
The Vista Touch Power supports Modbus® RTU and TCP, comes with Ethernet and RS485 as standard as well as two form C relays. Users can load and save configuration data to a USB flash drive, and it uses industry-standard DIN mounting with modular pluggable quick connect/disconnect connectors.
Features and Benefits
• For single, split and 3 phase applications
• Measures Active (W) Reactive (Var) and Apparent (VA) power
• 1% accuracy across the input range
• Programmable Current Transformer (CT) and Potential Transformer (PT) ratios
• Free access to the IoT Trumeter Cloud remote monitoring, with SMS and email alarm notifications
• 2 x form C relays
• 65K colour 70mm x 70mm [2.76" x 2.76"] graphics display
• Intuitive touchscreen navigation and configuration
• User programmable scale, custom alarms and messages
• Load and save configuration via USB flash drive
• Modbus® RTU and TCP
• Industry standard DIN mounting
• Ethernet and RS485 as standard
• Modular pluggable quick connect/disconnect connectors
• Measures Active (W) Reactive (Var) and Apparent (VA) power
• 1% accuracy across the input range
• Programmable Current Transformer (CT) and Potential Transformer (PT) ratios
• Free access to the IoT Trumeter Cloud remote monitoring, with SMS and email alarm notifications
• 2 x form C relays
• 65K colour 70mm x 70mm [2.76" x 2.76"] graphics display
• Intuitive touchscreen navigation and configuration
• User programmable scale, custom alarms and messages
• Load and save configuration via USB flash drive
• Modbus® RTU and TCP
• Industry standard DIN mounting
• Ethernet and RS485 as standard
• Modular pluggable quick connect/disconnect connectors
Note
All Trumeter products come with a 3-year manufacturer's warranty
