Subtotal (1 unit)*
£192.03
(exc. VAT)
£230.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £192.03 |
*price indicative
- RS Stock No.:
- 184-3085
- Mfr. Part No.:
- DMED300T2
- Brand:
- Lovato
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Lovato | |
Series | DME | |
Display Type | LCD | |
Number of Digits | 6 + 1 | |
Number of Phases | 3 | |
Number of Outputs | 2 | |
Pulse Output | Yes | |
Depth | 58mm | |
Meter Accuracy | Class 1 | |
Minimum Temperature | -25°C | |
Maximum Temperature | +55°C | |
Meter Type | Energy Meter | |
Approvals | CSA C22-2, EAC Certified, IEC/EN 50470-1, IEC/EN 61010-1, UL 61010-1, UL Listed | |
Select all | ||
---|---|---|
Brand Lovato | ||
Series DME | ||
Display Type LCD | ||
Number of Digits 6 + 1 | ||
Number of Phases 3 | ||
Number of Outputs 2 | ||
Pulse Output Yes | ||
Depth 58mm | ||
Meter Accuracy Class 1 | ||
Minimum Temperature -25°C | ||
Maximum Temperature +55°C | ||
Meter Type Energy Meter | ||
Approvals CSA C22-2, EAC Certified, IEC/EN 50470-1, IEC/EN 61010-1, UL 61010-1, UL Listed | ||
- COO (Country of Origin):
- IT

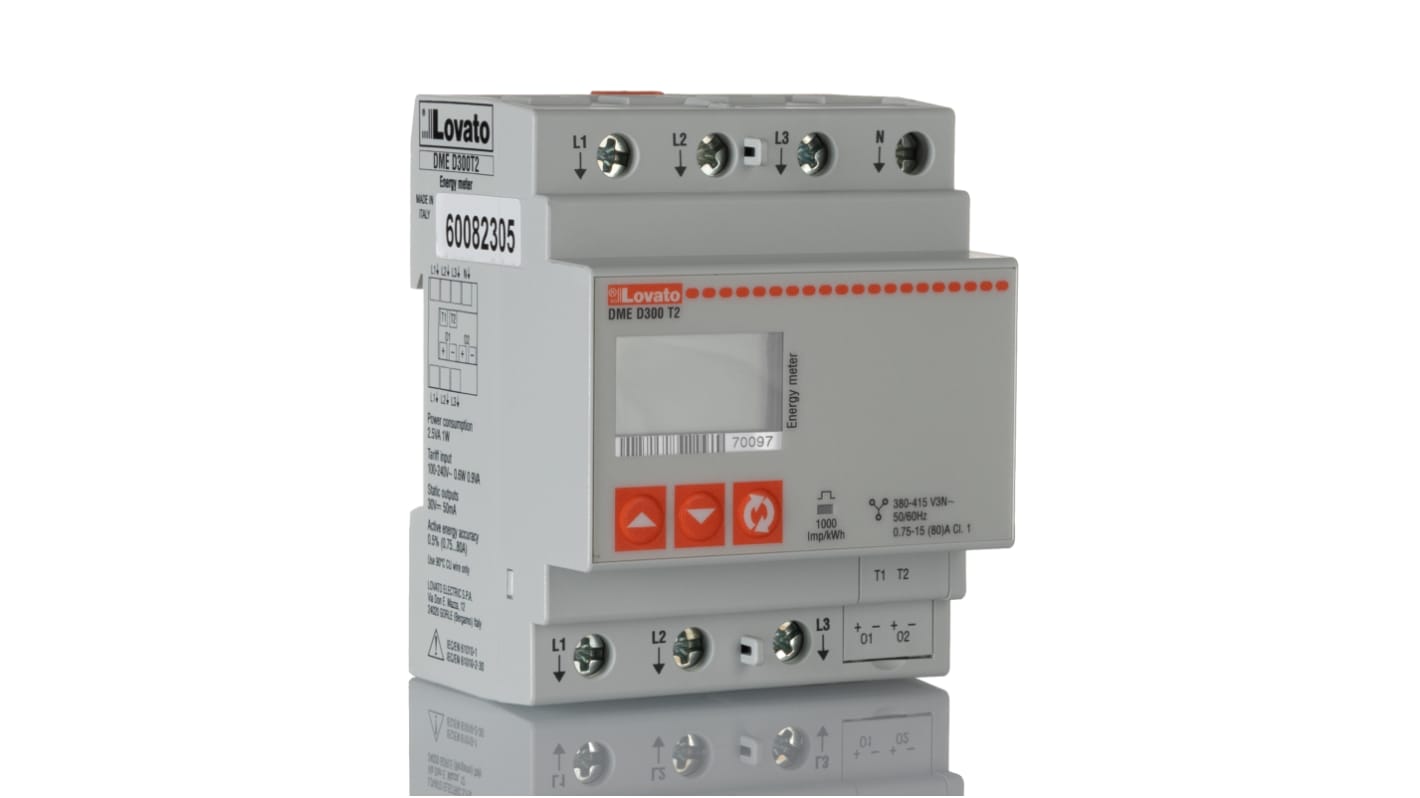

Lovato DME Series Energy Meter, LCD Display, 58mm Depth - DMED300T2
This energy meter is designed for three-phase systems with neutral, accommodating direct connections up to 80A. It features programmable static outputs and offers multi-measurement capabilities within a frequency range of 50-60 Hz.
Features & Benefits
• Direct connection for easy installation
• Pulse output for flexible data integration
• Class 1 accuracy for precise measurements
• Programmable static outputs for customisation
• Fixed terminals for secure connections
• Pulse output for flexible data integration
• Class 1 accuracy for precise measurements
• Programmable static outputs for customisation
• Fixed terminals for secure connections
Applications
• Energy monitoring in industrial settings
• Precise energy management applications
• Automation systems for accurate readings
• Implementing energy-saving strategies
• Electrical testing and maintenance
• Precise energy management applications
• Automation systems for accurate readings
• Implementing energy-saving strategies
• Electrical testing and maintenance
Can it operate within a wide temperature range?
Yes, it operates between -25°C and +55°C.
What insulation voltage does this energy meter support?
It supports a rated insulation voltage of 250V.
Can I use it in high humidity conditions?
Yes, it operates in conditions with relative humidity less than 80%.
