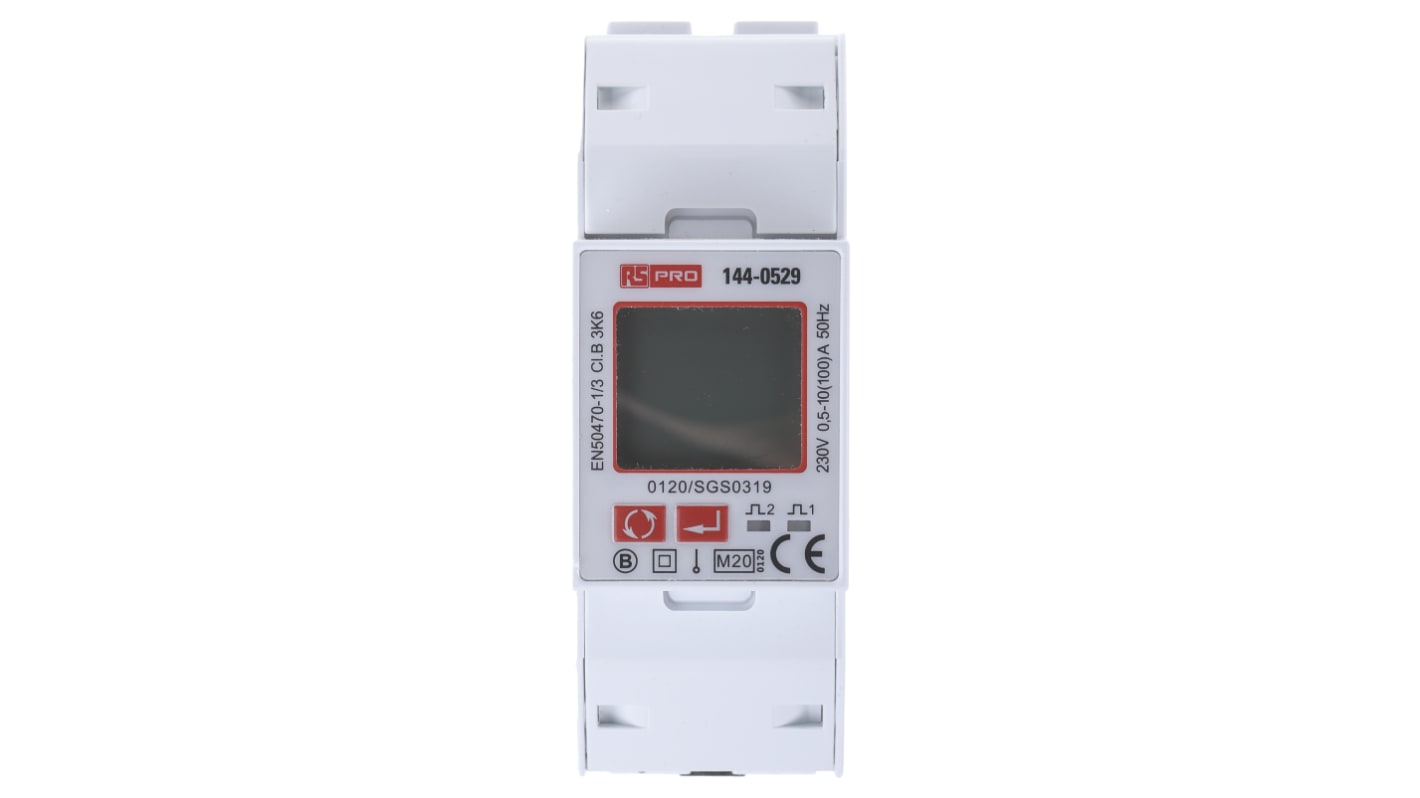

RS PRO 1 Phase Backlit Energy Meter
- RS Stock No.:
- 144-0529
- Brand:
- RS PRO
Discontinued product
- RS Stock No.:
- 144-0529
- Brand:
- RS PRO
- COO (Country of Origin):
- CN
MID Approved Multi function Power Meter
Multi function single phase MID B&D approved power meter that measures and displays electrical power quality parameters. The meter has been built to cover most applications (Single phase networks/built-in pulse and RS485 Modbus/import and export kWh). Thus replacing the need for several different models.
Features and Benefits
MID B&D certified
Blue backlit display
Class B (kWh) EC Directive 2004/22/EC
Certificate number 0120/SGS0198
Multi function 100 A direct connected
Built in pulsed and RS48 Modbus outputs
16 Measuring parameters
Blue backlit display
Class B (kWh) EC Directive 2004/22/EC
Certificate number 0120/SGS0198
Multi function 100 A direct connected
Built in pulsed and RS48 Modbus outputs
16 Measuring parameters
Parameters
Phase to Neutral Voltage (V)
Phase Current (A)
Frequency (Hz)
Power Factor (PF)
Power Max Demand (MD kW)
Active Power (kW)
Reactive Power (kVAr)
Apparent Power (kVA)
Import Active Energy (kWh)
Export Active Energy (kWh)
Total Active Energy (kWh)
Import Reactive Energy (kVArh)
Export Reactive Energy (kVArh)
Total Reactive Energy (kVArh)
Phase Current (A)
Frequency (Hz)
Power Factor (PF)
Power Max Demand (MD kW)
Active Power (kW)
Reactive Power (kVAr)
Apparent Power (kVA)
Import Active Energy (kWh)
Export Active Energy (kWh)
Total Active Energy (kWh)
Import Reactive Energy (kVArh)
Export Reactive Energy (kVArh)
Total Reactive Energy (kVArh)
Attribute | Value |
---|---|
Cutout Height | 99mm |
Cutout Width | 36mm |
Display Type | Backlit |
Number of Digits | 4 |
Number of Phases | 1 |
Pulse Output | Yes |
Depth | 63mm |
Meter Accuracy | ±1 % |
Minimum Temperature | -25°C |
Maximum Temperature | +55°C |
Meter Type | Digital |
Measurement Range | 0 → 99999.99 (Active) kWh, 0 → 99999.99 (Reactive) kVArh |
Maximum Measurement | 99999.99 (Active) kWh, 99999.99 (Reactive) kVArh |
Minimum Measurement | 0 (Active) kWh, 0 (Reactive) kVArh |
