Chauvin Arnoux Energy 3 Phase LCD Energy Meter

View all Energy Meters
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
124-2454
Mfr. Part No.:
P01331015
Brand:
Chauvin Arnoux Energy
Find similar products by selecting one or more attributes.
Select all

Brand

Chauvin Arnoux Energy

Series

ULYS

Display Type

LCD

Number of Digits

8

Number of Phases

3

Pulse Output

Yes

Depth

65mm

Minimum Temperature

-25°C

Maximum Temperature

+55°C

Meter Type

Digital

Minimum Measurement

0kWh

Approvals

IEC

Measurement Range

0 → 9999999.9kWh

COO (Country of Origin):
FR

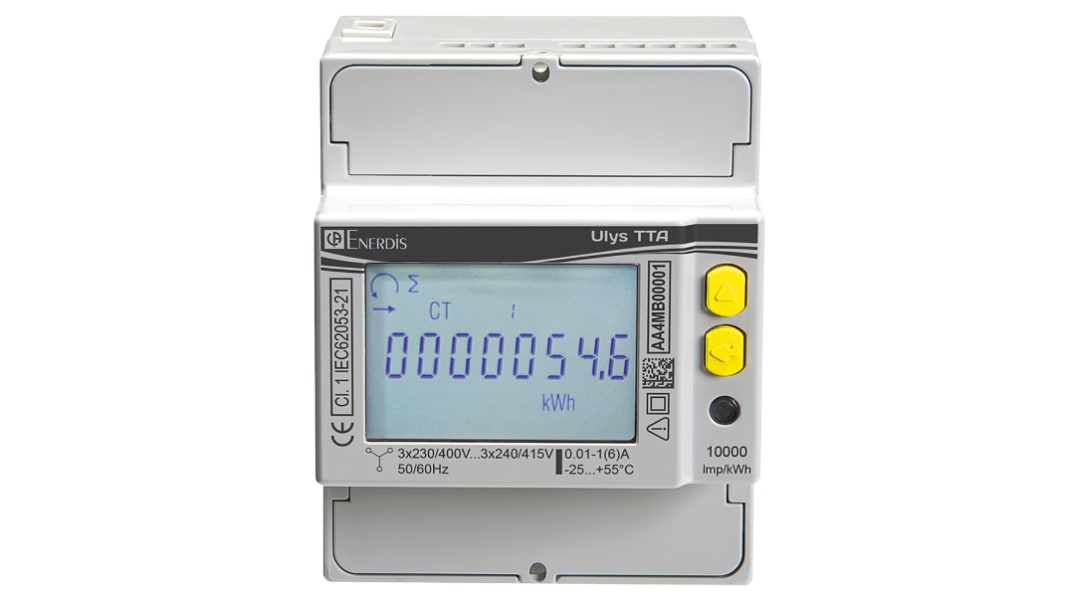

ULYS TTA80 Energy Meter


The ULYS TTA80 is an energy meter used for energy management in various applications and usable locally or remotely via its integrated pulse outputs. The meter is also available as a MID certified model.

Features and Benefits


• 4 DIN Modules in size
• LCD backlit display
• 3 Phase
• Customisation of the display to fit your user profile (operation or inspection)
• Multiple measurements: U, V, I, PF, F
• Current inputs on 1/5 A secondary CT
• Total and partial cumulated energy indices according to tariff
• Tariff-change input (double tariff)
• 2 Pulse outputs configurable as P, Q or S
• Connection error indicator and control loop for the parameter settings of the CTs
• Communication via the ULSYCOM communication modules (Ethernet, RS485 M-Bus, KNX)
• MID Certified model available (124-2455 only)
• Automatic recognition of the associated communication module via an infrared link on the side of the meter
• Lead-sealable terminal covers
