Sifam Tinsley LCD Energy MeterElectronic
- RS Stock No.:
- 123-6803
- Mfr. Part No.:
- ND10 - 22100U0
- Brand:
- Sifam Tinsley
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£174.53
(exc. VAT)
£209.44
(inc. VAT)
- RS Stock No.:
- 123-6803
- Mfr. Part No.:
- ND10 - 22100U0
- Brand:
- Sifam Tinsley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sifam Tinsley | |
| Series | N10 | |
| Cutout Height | 92mm | |
| Cutout Width | 92mm | |
| Display Type | LCD | |
| Depth | 7.7mm | |
| Minimum Temperature | -20°C | |
| Maximum Temperature | +70°C | |
| Meter Type | Electronic | |
| Maximum Measurement | 1, 1.2, 1.52 kVA, 1.52 kvar, 1.52 kW, 6 A, 63 Hz, 100 %, 180 °, 253 V ac, 440 V ac | |
| Measurement Range | 0 → 100 %, 0.025 → 6 A, -1 → 1, 1 VA → 1.52 kVA, -1.2 → 1.2, -1.52 kvar → 1.52 kvar, -1.52 kW → 1.52 kW, -180 → +180 °, 195 → 253 V ac, 340 → 440 V ac, 47 → 63Hz | |
| Minimum Measurement | -180 °, -1.52 kvar, -1.52 kW, -1.2, -1, 0 %, 0.025 A, 1 VA, 47 Hz, 195 V ac, 340 V ac | |
| Approvals | CE Certified, EN 61000-6-2, EN 61000-6-4, EN 61010-1 | |
Select all | ||
|---|---|---|
Brand Sifam Tinsley | ||
Series N10 | ||
Cutout Height 92mm | ||
Cutout Width 92mm | ||
Display Type LCD | ||
Depth 7.7mm | ||
Minimum Temperature -20°C | ||
Maximum Temperature +70°C | ||
Meter Type Electronic | ||
Maximum Measurement 1, 1.2, 1.52 kVA, 1.52 kvar, 1.52 kW, 6 A, 63 Hz, 100 %, 180 °, 253 V ac, 440 V ac | ||
Measurement Range 0 → 100 %, 0.025 → 6 A, -1 → 1, 1 VA → 1.52 kVA, -1.2 → 1.2, -1.52 kvar → 1.52 kvar, -1.52 kW → 1.52 kW, -180 → +180 °, 195 → 253 V ac, 340 → 440 V ac, 47 → 63Hz | ||
Minimum Measurement -180 °, -1.52 kvar, -1.52 kW, -1.2, -1, 0 %, 0.025 A, 1 VA, 47 Hz, 195 V ac, 340 V ac | ||
Approvals CE Certified, EN 61000-6-2, EN 61000-6-4, EN 61010-1 | ||
Non Compliant
- COO (Country of Origin):
- PL

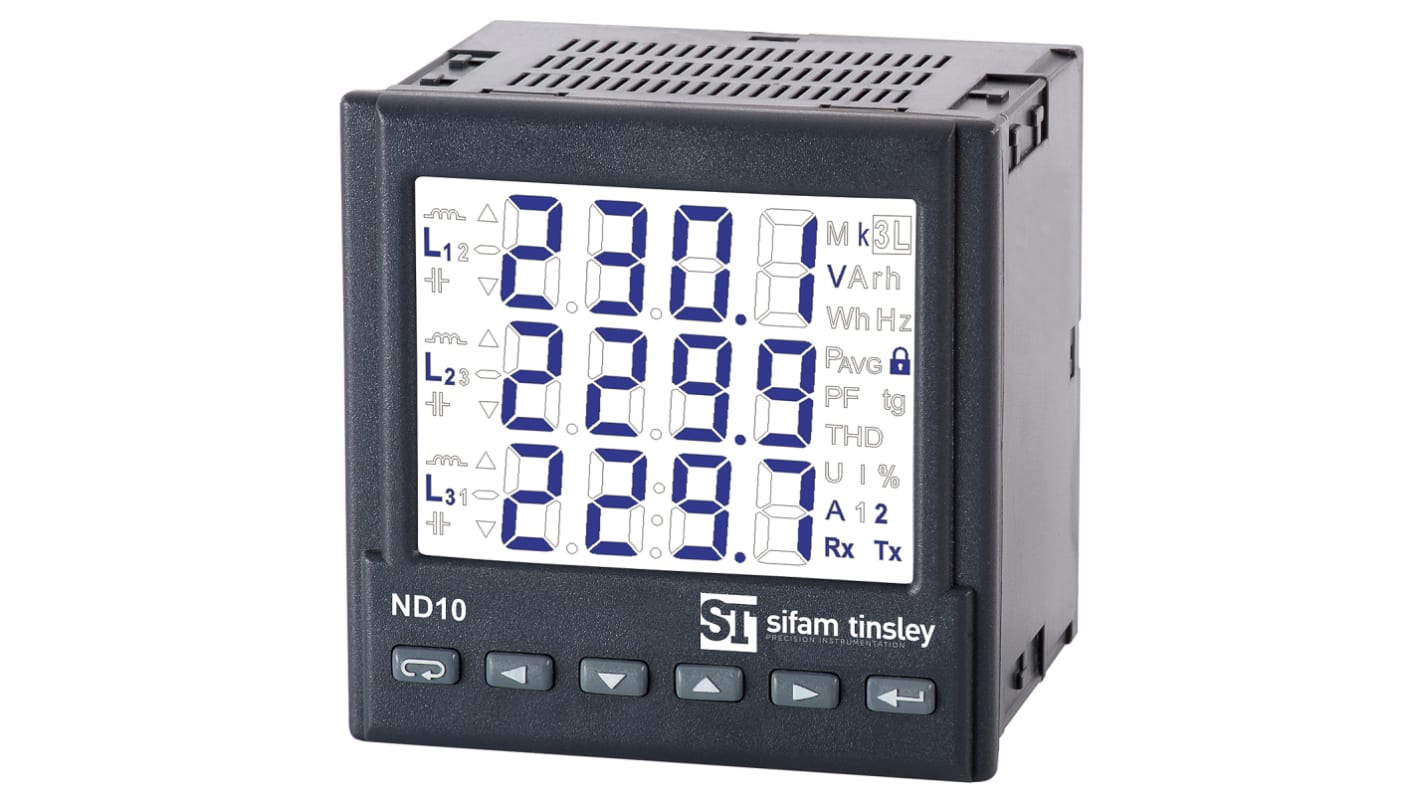

Sifam Tinsley ND10 Power Meter
The ND10 is a digital programmable power meter designed to measure 3 phase, 4-wire power network parameters in both balanced and unbalanced systems. It displays measured quantities and their simultaneous digital transmission. The power meter also controls and optimises the power of electronic devices, systems and industrial installations.
Features and Benefits
• 3.5” LCD display
• Meter supply from measurement circuit
• Measurement of basic power quantities
• 2 Alarm outputs
• Pulse output for active energy
• Interface RS485 Modbus slave (option)
• IP65 protection (front panel)
• Panel mounting
• Measurable parameters; active and reactive energy, voltage, current and active, reactive and apparent power
• Meter supply from measurement circuit
• Measurement of basic power quantities
• 2 Alarm outputs
• Pulse output for active energy
• Interface RS485 Modbus slave (option)
• IP65 protection (front panel)
• Panel mounting
• Measurable parameters; active and reactive energy, voltage, current and active, reactive and apparent power
