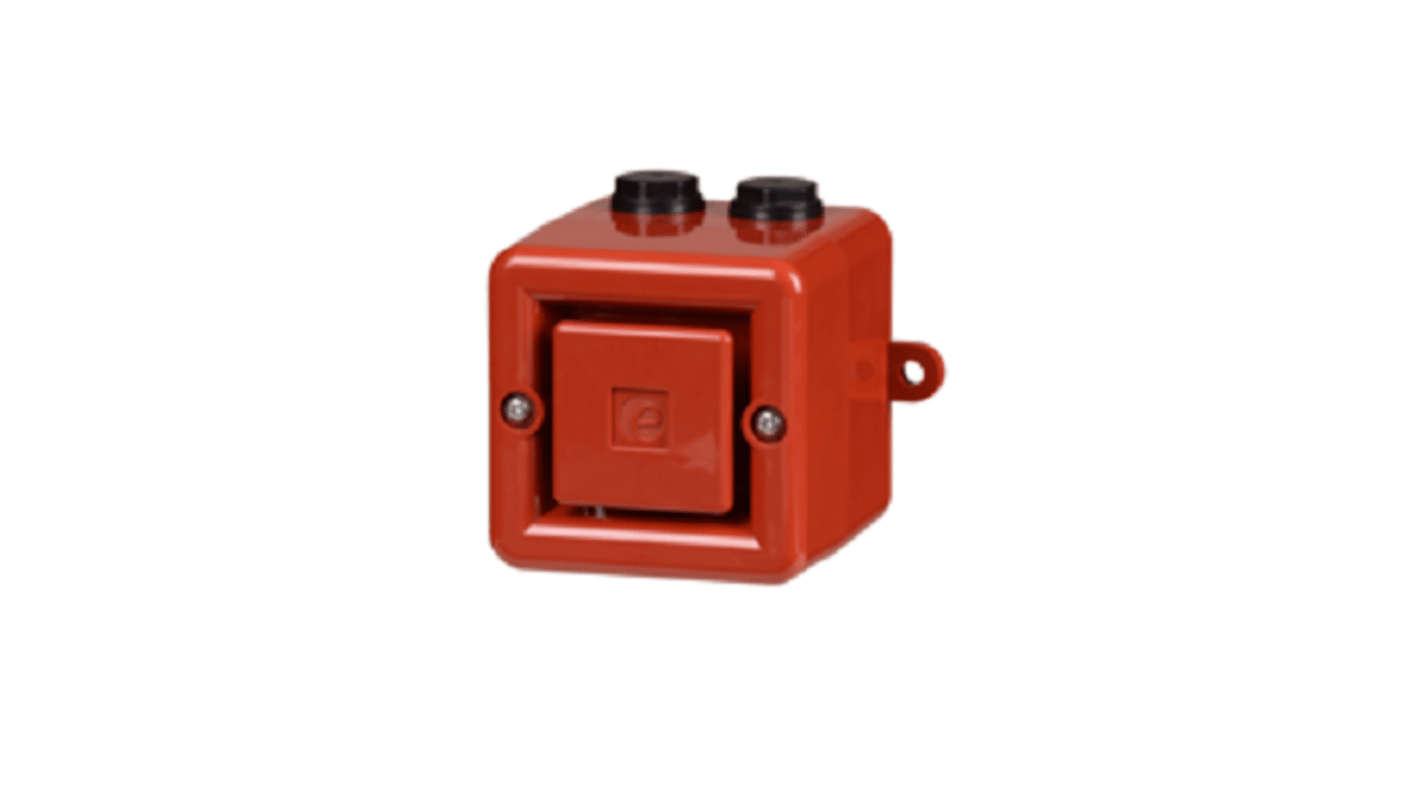

e2s A100 Series Electronic Sounder, 24 → 260 V, ±3dB at 1 m, IP66, AC, 64-Tone
- RS Stock No.:
- 248-4853
- Mfr. Part No.:
- A100AC230MA0A1R
- Brand:
- e2s
Subtotal (1 unit)*
£97.99
(exc. VAT)
£117.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
- Plus 25 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £97.99 |
*price indicative
- RS Stock No.:
- 248-4853
- Mfr. Part No.:
- A100AC230MA0A1R
- Brand:
- e2s
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | e2s | |
Supply Voltage | 24 → 260 V | |
IP Rating | IP66 | |
Decibels at 1 Metre | ±3dB | |
Current Type | AC | |
Number Of Tones | 64 | |
Housing Colour | Red, White | |
Series | A100 | |
Select all | ||
---|---|---|
Brand e2s | ||
Supply Voltage 24 → 260 V | ||
IP Rating IP66 | ||
Decibels at 1 Metre ±3dB | ||
Current Type AC | ||
Number Of Tones 64 | ||
Housing Colour Red, White | ||
Series A100 | ||
- COO (Country of Origin):
- GB
The e2s A100 alarm horn sounder is a compact, high output, 110dB(A) alarm sounder, CPR complaint, EN54-3 tested and UL/cUL and ULC approved featuring 64 alarm tone
frequencies and 4 remotely activated channels, low current consumption and high SPL in a robust fire retardant housing. The A100 is suitable for all signalling applications including fire, security and process control.
frequencies and 4 remotely activated channels, low current consumption and high SPL in a robust fire retardant housing. The A100 is suitable for all signalling applications including fire, security and process control.
Automatic synchronisation
Continuously rated
Back box options with and without mounting lugs
Dual M20 or 1/2 NPT clearance cable entries
Duplicate pluggable cable terminations Class A
Ingress protection IP66 Type 3R/13
64 alarm tone frequencies and 4 remotely activated alarm stages
Available with custom tone configurations and frequencies
Diode polarized for use in supervised circuits
Continuously rated
Back box options with and without mounting lugs
Dual M20 or 1/2 NPT clearance cable entries
Duplicate pluggable cable terminations Class A
Ingress protection IP66 Type 3R/13
64 alarm tone frequencies and 4 remotely activated alarm stages
Available with custom tone configurations and frequencies
Diode polarized for use in supervised circuits
