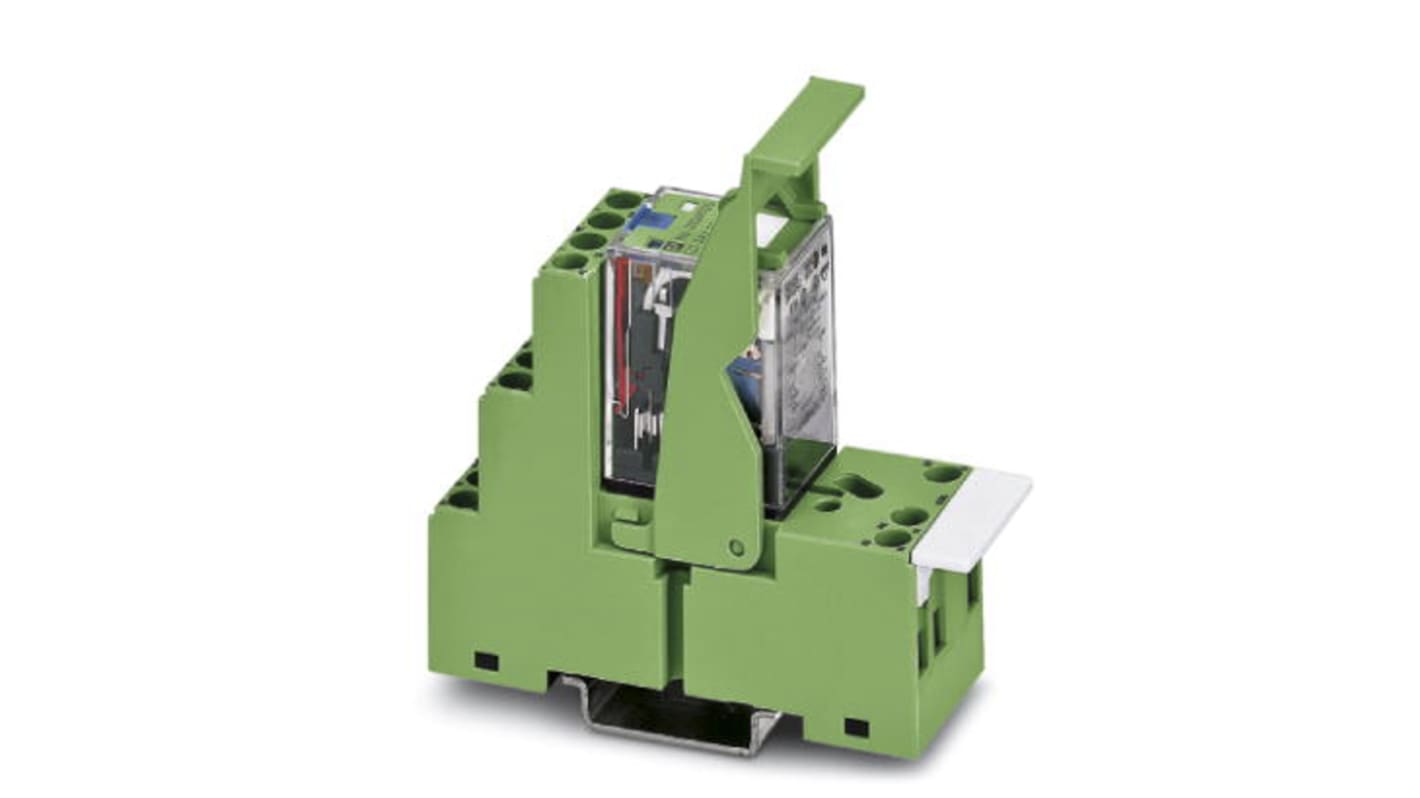

Phoenix Contact PR2-RSC3-LV-120AC/4X21AU Series Interface Relay Module, DIN Rail Mount, 110V Coil, 4PDT, 4-Pole
- RS Stock No.:
- 801-8422
- Mfr. Part No.:
- 2834740
- Brand:
- Phoenix Contact
- RS Stock No.:
- 801-8422
- Mfr. Part No.:
- 2834740
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Coil Voltage | 110V | |
| Contact Configuration | 4PDT | |
| Mounting Type | DIN Rail | |
| Number of Poles | 4 | |
| Series | PR2-RSC3-LV-120AC/4X21AU | |
| Maximum Input Voltage | 120V ac | |
| Terminal Type | Screw | |
| Depth | 27mm | |
| Height | 78.5mm | |
| Length | 86mm | |
| Contact Material | Gold Plated | |
| Input Current | 11 mA @ 50 Hz, 9 mA @ 60 Hz | |
| Minimum Operating Temperature | -25°C | |
| Operating Temperature Range | -25 → +60°C | |
| Life | 50000000 Cycles | |
| Turn On Time | 10ms | |
| Turn Off Time | 12ms | |
| Maximum Operating Temperature | +60°C | |
| Dimensions | 86 x 27 x 78.5mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Coil Voltage 110V | ||
Contact Configuration 4PDT | ||
Mounting Type DIN Rail | ||
Number of Poles 4 | ||
Series PR2-RSC3-LV-120AC/4X21AU | ||
Maximum Input Voltage 120V ac | ||
Terminal Type Screw | ||
Depth 27mm | ||
Height 78.5mm | ||
Length 86mm | ||
Contact Material Gold Plated | ||
Input Current 11 mA @ 50 Hz, 9 mA @ 60 Hz | ||
Minimum Operating Temperature -25°C | ||
Operating Temperature Range -25 → +60°C | ||
Life 50000000 Cycles | ||
Turn On Time 10ms | ||
Turn Off Time 12ms | ||
Maximum Operating Temperature +60°C | ||
Dimensions 86 x 27 x 78.5mm | ||
A 4PDT (4 pole double throw) PR2 relay designed to be mountable on DIN rail NS 35/7.5. Featuring a relay socket and retaining bracket with eject function and pluggable relay with power contact is supplied.
Phoenix Contact PR2-RSC Relays
The range of PR2-RSC preassembled relay units from Phoenix Contact give you a great choice of easy connection technology. The electromechanical relays act as the interface between your automation equipment and system peripherals.
Features and Benefits:
• Mechanical switch position indicator
• Screw/Spring-cage connection
• Relay with detectable manual operation
• 4 PDT types with multi-layer gold-plated contacts
• Freewheeling diode is integrated in relay with DC types
• Red LED operating voltage display
• Operating temperature -20°C to +60°C
• Dimensions 86 x 27 x 78.5 mm
• Available in a range of coil voltages
• Screw/Spring-cage connection
• Relay with detectable manual operation
• 4 PDT types with multi-layer gold-plated contacts
• Freewheeling diode is integrated in relay with DC types
• Red LED operating voltage display
• Operating temperature -20°C to +60°C
• Dimensions 86 x 27 x 78.5 mm
• Available in a range of coil voltages
Typical Applications:
PR2 relays are used in many different applications not limited to power amplification, electrical isolation or for using for voltage adjustment of frequency varying voltage levels.
Standards
IEC 60664 / IEC 60664 A
Approvals
DIN VDE 0110
