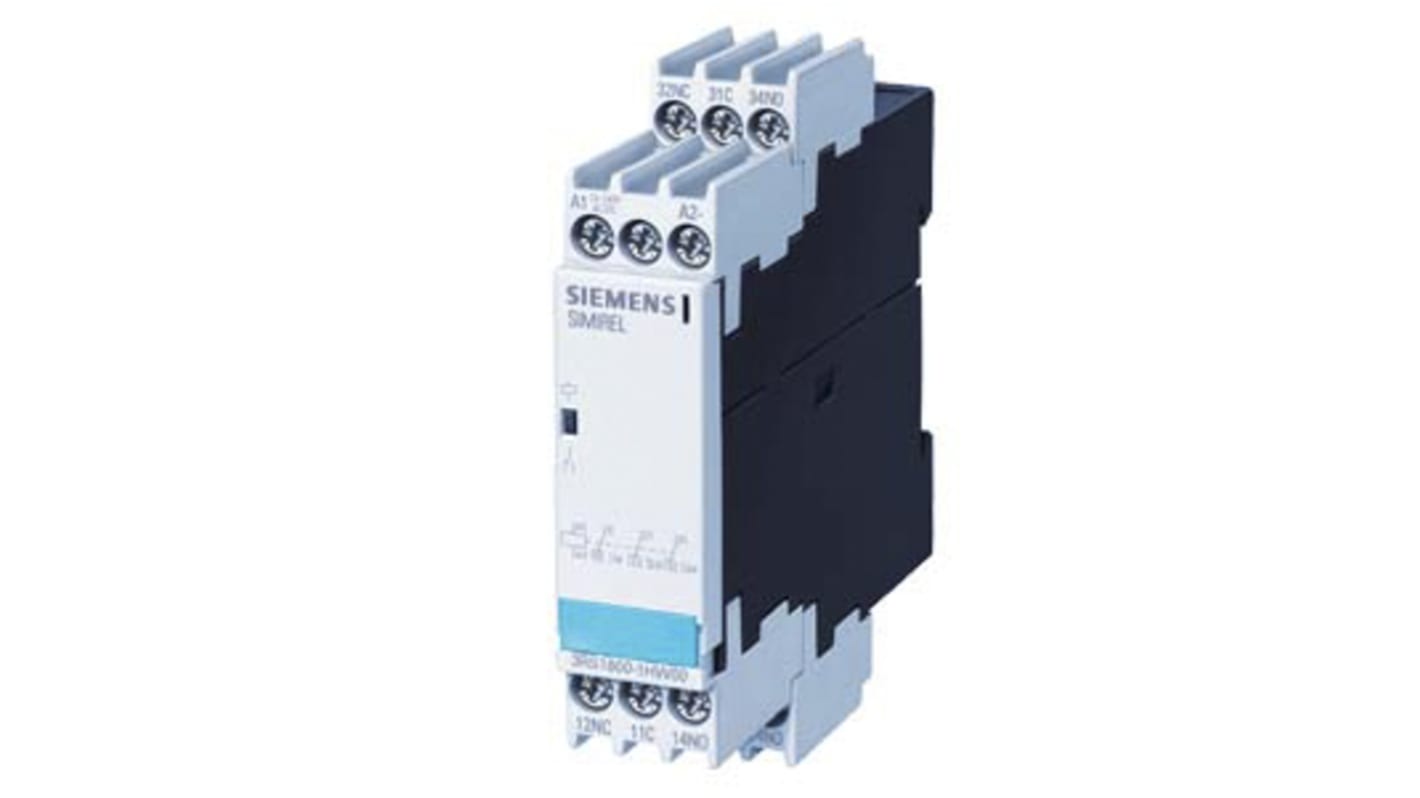

Siemens 3RS1 Series Interface Relay, DIN Rail Mount, 240V ac/dc Coil, SPDT, 1-Pole
- RS Stock No.:
- 175-2349
- Mfr. Part No.:
- 3RS1800-1AP00
- Brand:
- Siemens
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£42.84
(exc. VAT)
£51.41
(inc. VAT)
- RS Stock No.:
- 175-2349
- Mfr. Part No.:
- 3RS1800-1AP00
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Coil Voltage | 240V ac/dc | |
| Contact Configuration | SPDT | |
| Mounting Type | DIN Rail | |
| Number of Poles | 1 | |
| Terminal Type | Screw | |
| Depth | 91mm | |
| Height | 120mm | |
| Length | 22.5mm | |
| Series | 3RS1 | |
| Minimum Operating Temperature | -25°C | |
| Standards Met | CCC, CE, EAC, UL | |
| Maximum Operating Temperature | +60°C | |
| Relay Switching Classification | AC/DC Switching Relay | |
| Special Features | Switching Behavior Monostable | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Coil Voltage 240V ac/dc | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Number of Poles 1 | ||
Terminal Type Screw | ||
Depth 91mm | ||
Height 120mm | ||
Length 22.5mm | ||
Series 3RS1 | ||
Minimum Operating Temperature -25°C | ||
Standards Met CCC, CE, EAC, UL | ||
Maximum Operating Temperature +60°C | ||
Relay Switching Classification AC/DC Switching Relay | ||
Special Features Switching Behavior Monostable | ||
- COO (Country of Origin):
- DE
Siemens SPDT Non-Latching Relay
The Siemens SPDT is a non-latching DIN rail mount relay is actuated with the help of a 240VDC coil and up to 1A DC or 3A AC current through the coil to switch positions. It is a high power 1-pole coupling industry standard relay.
Features and Benefits
• Environmental friendly product
• Service temperature range between -25°C and 60°C
• DIN rail mounting type
• High mechanical endurance
• Long life expectancy
• Monostable switching behaviour
• Resistant to vibration and abrasion
• Offers excellent space savings
• Service temperature range between -25°C and 60°C
• DIN rail mounting type
• High mechanical endurance
• Long life expectancy
• Monostable switching behaviour
• Resistant to vibration and abrasion
• Offers excellent space savings
Applications
• Used as a control device
• Automotive industry
• Industrial machinery
• Factory automation
• Automotive industry
• Industrial machinery
• Factory automation
Certifications
• IP20 rated
