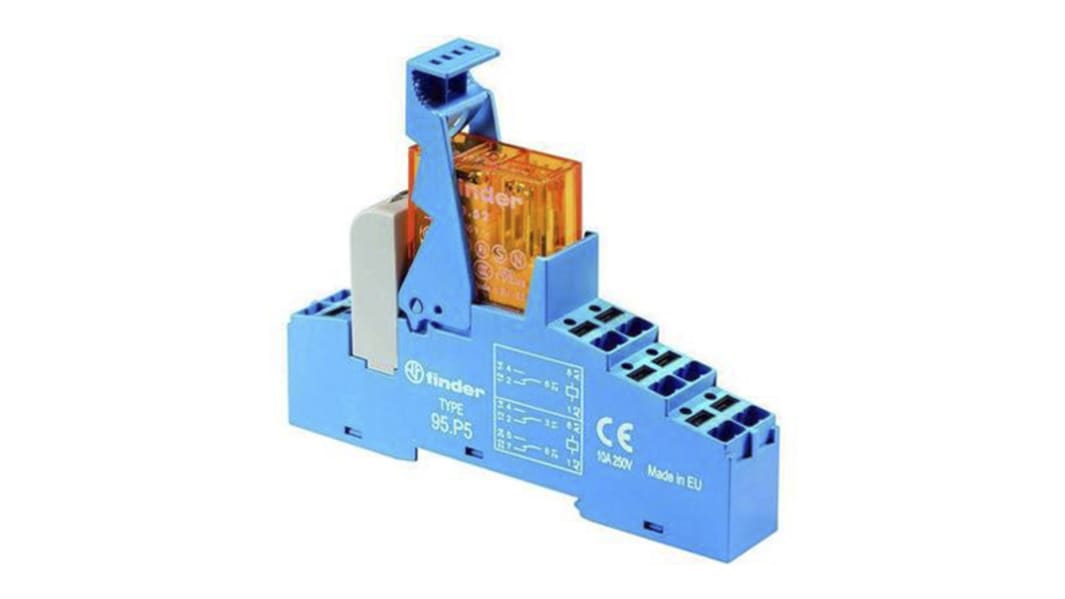

Finder 48 series relay interface modules are an ideal interface for PLC and electronic systems.
Features and Benefits
Contact resistance: 50mΩ Mechanical life: AC versions; 10 x 106 operations, DC versions; 20 x 106 operations Dimensions: H78.6mm, W15.8mm, D76mm Instant ejection of relay using plastic retaining clip Supply status indication and EMC coil suppression module Push-in and screw terminals
Replacement relays stock no. 351-572 etc are available (Finder 40 Series), and should be selected such that the coil voltage, contact configuration and rating match the original type
Approvals
BBJ; BEAB; CSA; DEMKO; FIMKO; GOST; NEMKO; RINA; SEMKO; SEV; UL recognised component for Canada; VDE
Attribute
Value
Coil Voltage
12V dc
Contact Configuration
SPDT
Mounting Type
DIN Rail
Number of Poles
1
Load Current Rating
16A
Maximum Input Voltage
400V ac
Minimum Input Voltage
250V ac
Terminal Type
Push In
Switching Voltage
250 V ac → 400V ac
Depth
75.3mm
Height
95.5mm
Length
15.8mm
Series
48 Series
Contact Material
Silver Alloy
Input Current
41mA
Maximum Operating Temperature
+70°C
Minimum Operating Temperature
-40°C
Turn On Time
(dc) 12 ms, (ac) 7ms
Dimensions
15.8 x 75.3 x 95.5mm
Special Features
AC Coils or DC Sensitive Coils, Identification Label, Supply Status Indication & EMC Coil Suppression Module as Standard
