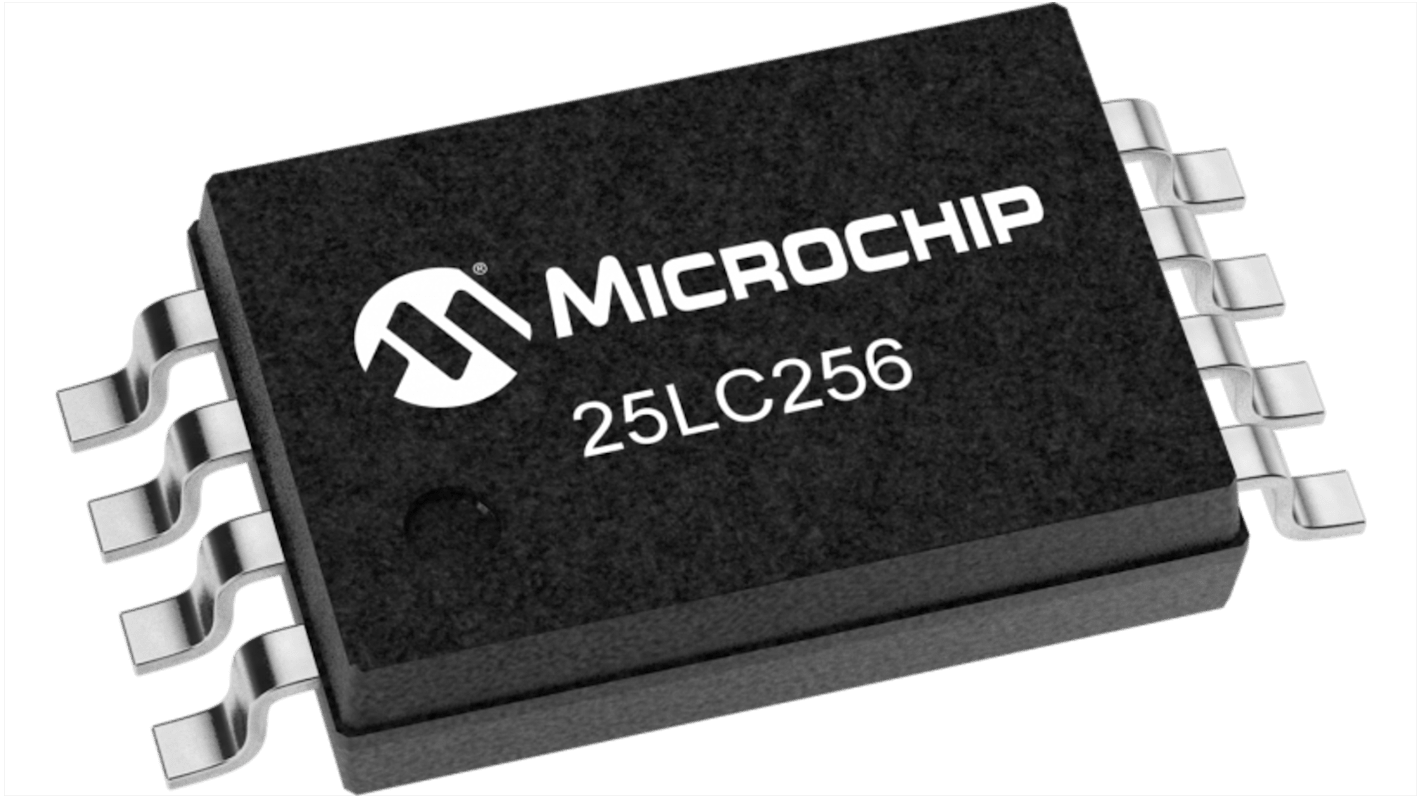

Microchip 25LC256-I/ST, 256kbit Serial EEPROM Memory, 50ns 8-Pin DFN, PDIP, SOIC, TSSOP Serial-SPI

View all EEPROM

Subtotal (1 tube of 100 units)*

£111.00

(exc. VAT)

£133.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 400 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
100 +£1.11£111.00

*price indicative

RS Stock No.:
197-6055
Mfr. Part No.:
25LC256-I/ST
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Memory Size

256kbit

Interface Type

Serial-SPI

Package Type

DFN, PDIP, SOIC, TSSOP

Mounting Type

Surface Mount

Pin Count

8

Organisation

32K x 8 bit

Minimum Operating Supply Voltage

2.5 V

Maximum Operating Supply Voltage

5.5 V

Programming Voltage

2.5 → 5.5V

Number of Bits per Word

8bit

Dimensions

3.1 x 4.5 x 1.05mm

Maximum Random Access Time

50ns

Maximum Operating Temperature

+85 °C

Data Retention

200yr

Number of Words

32k

Minimum Operating Temperature

-40 °C

Automotive Standard

AEC-Q100

Microchip 25LC256-I/ST are 256 Kbit Serial Electrically Erasable PROMs. The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The bus signals required are a clock input (SCK) plus separate data in (SI) and data out (SO) lines. Access to the device is controlled through a Chip Select (CS) input. Communication to the device can be paused via the hold pin (HOLD).

Max. Clock 10 MHz
Low-Power CMOS Technology: Max. Write Current: 5 mA at 5.5V, 10 MHz, Read Current: 6 mA at 5.5V, 10 MHz, Standby Current: 1 μA at 5.5V
Self-Timed Erase and Write Cycles (5 ms max.)
Built-In Write Protection: Power-on/off data protection circuitry, Write enable latch, Write-protect pin
Sequential Read
High Reliability: Endurance: 1,000,000 erase/write cycles, Data retention: > 200 years, ESD protection: > 4000V
Temperature Ranges Supported:
RoHS Compliant: Industrial (I): -40°C to +85C, Extended (E): -40°C to +125°C
Automotive AEC-Q100 Qualified
