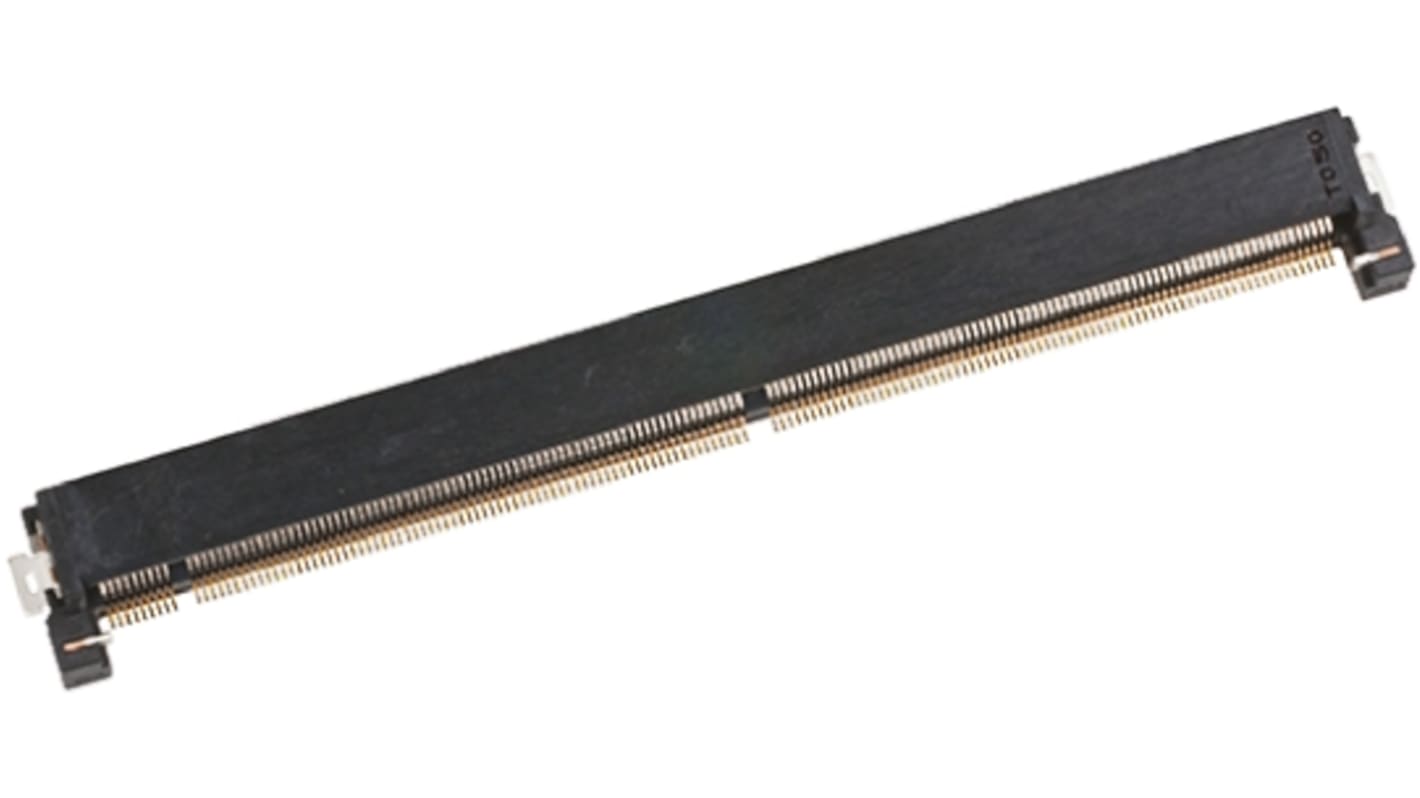

JAE MM70 Series Female Edge Connector, 314-Contacts, 0.5mm Pitch
- RS Stock No.:
- 732-0184
- Mfr. Part No.:
- MM70-314-310B1-1-R300
- Brand:
- JAE
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 732-0184
- Mfr. Part No.:
- MM70-314-310B1-1-R300
- Brand:
- JAE
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JAE | |
| Body Orientation | Straight | |
| Gender | Female | |
| Number of Contacts | 314 | |
| Pitch | 0.5mm | |
| Contact Plating | Gold over Nickel | |
| Contact Material | Copper Alloy | |
| Current Rating | 500mA | |
| Keying Way | Yes | |
| Series | MM70 | |
| Length | 89.9mm | |
| Depth | 6.7mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand JAE | ||
Body Orientation Straight | ||
Gender Female | ||
Number of Contacts 314 | ||
Pitch 0.5mm | ||
Contact Plating Gold over Nickel | ||
Contact Material Copper Alloy | ||
Current Rating 500mA | ||
Keying Way Yes | ||
Series MM70 | ||
Length 89.9mm | ||
Depth 6.7mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +80°C | ||
MM70 Series PCB Connectors
These MM70 MXM3.0 compatible socket connectors are of the angle insertion type.
JAE MM70 Series
The JAE MM70 Series of connectors are compatible with the MXM3.0 standard card edge type add-in modules. The design of the MM70 connector includes a precision positioning stopper to avoid contact failure.
