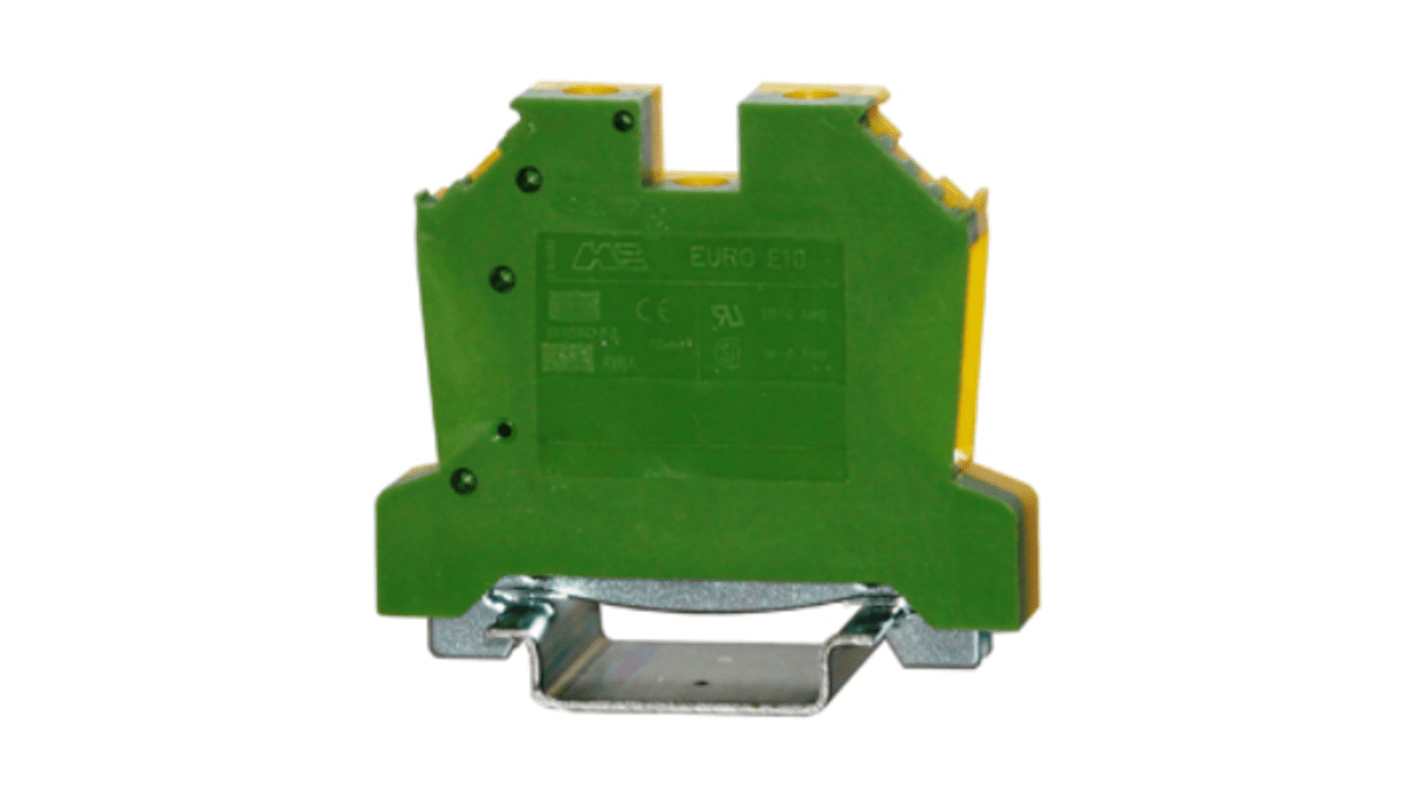

RS PRO 1-Way DIN Rail Earth Terminal Block, 10mm², 20AWG, 6 AWG Wire, Cage Clamp, Polyamide 66 Housing, cUL
- RS Stock No.:
- 262-4217
- Brand:
- RS PRO
Subtotal (1 box of 10 units)*
£30.37
(exc. VAT)
£36.44
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 20 unit(s) shipping from 19 October 2026
- Plus 2 unit(s) shipping from 19 October 2026
- Plus 12 unit(s) shipping from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £30.37 | £3.037 |
*price indicative
- RS Stock No.:
- 262-4217
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Earth Block Type | DIN Rail | |
| Product Type | Earth Terminal Block | |
| Wire Size | 20AWG, 6AWG | |
| Cable CSA | 10mm² | |
| Colour | Yellow, Green | |
| Number of Ways | 1 | |
| Housing Material | Polyamide 66 | |
| Termination Type | Cage Clamp | |
| Minimum Operating Temperature | -60°C | |
| Length | 58mm | |
| Maximum Operating Temperature | 130°C | |
| Width | 10mm | |
| Standards/Approvals | RS PRO yellowgreen earth terminal blocks meet all requirements of the IEC 60947-7-2 standard for safety | |
| Height | 44mm | |
| Hazardous Area Certification | cUL | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Earth Block Type DIN Rail | ||
Product Type Earth Terminal Block | ||
Wire Size 20AWG, 6AWG | ||
Cable CSA 10mm² | ||
Colour Yellow, Green | ||
Number of Ways 1 | ||
Housing Material Polyamide 66 | ||
Termination Type Cage Clamp | ||
Minimum Operating Temperature -60°C | ||
Length 58mm | ||
Maximum Operating Temperature 130°C | ||
Width 10mm | ||
Standards/Approvals RS PRO yellowgreen earth terminal blocks meet all requirements of the IEC 60947-7-2 standard for safety | ||
Height 44mm | ||
Hazardous Area Certification cUL | ||
- COO (Country of Origin):
- IT
RS PRO Earth Terminal Block - 20 – 6 AWG
Use RS PRO earth terminal blocks to provide a secure and reliable connection between the grounding conductor and the earth. This helps to prevent the build-up of electrical charges, dissipate static electricity, and protect against electrical faults and potential hazards, such as electric shock or equipment damage.
Why Do You Need an Earth Terminal Block?
Earth terminal blocks are commonly used in electrical distribution panels, control cabinets, motor control centres, industrial machinery, and other electrical systems. They provide a convenient and organised way to connect the grounding conductors, making it easier to maintain a safe and compliant electrical installation.
Features and Benefits
Applications
