Phoenix Contact 5-Way DIN Rail Earth Terminal Block, 6mm², 10AWG Wire, Push-in, Polyamide Housing
- RS Stock No.:
- 207-2909
- Distrelec Article No.:
- 304-32-375
- Mfr. Part No.:
- 3214047
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£306.80
(exc. VAT)
£368.15
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 50 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £6.136 | £306.80 |
*price indicative
- RS Stock No.:
- 207-2909
- Distrelec Article No.:
- 304-32-375
- Mfr. Part No.:
- 3214047
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Earth Block Type | DIN Rail | |
| Product Type | Earth Terminal Block | |
| Wire Size | 10AWG | |
| Cable CSA | 6mm² | |
| Colour | Grey | |
| Number of Ways | 5 | |
| Housing Material | Polyamide | |
| Voltage | 6kV | |
| Length | 114mm | |
| Minimum Operating Temperature | -60°C | |
| Termination Type | Push-in | |
| Width | 6.2mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Series | PTI | |
| Height | 58mm | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Earth Block Type DIN Rail | ||
Product Type Earth Terminal Block | ||
Wire Size 10AWG | ||
Cable CSA 6mm² | ||
Colour Grey | ||
Number of Ways 5 | ||
Housing Material Polyamide | ||
Voltage 6kV | ||
Length 114mm | ||
Minimum Operating Temperature -60°C | ||
Termination Type Push-in | ||
Width 6.2mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Series PTI | ||
Height 58mm | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- PL

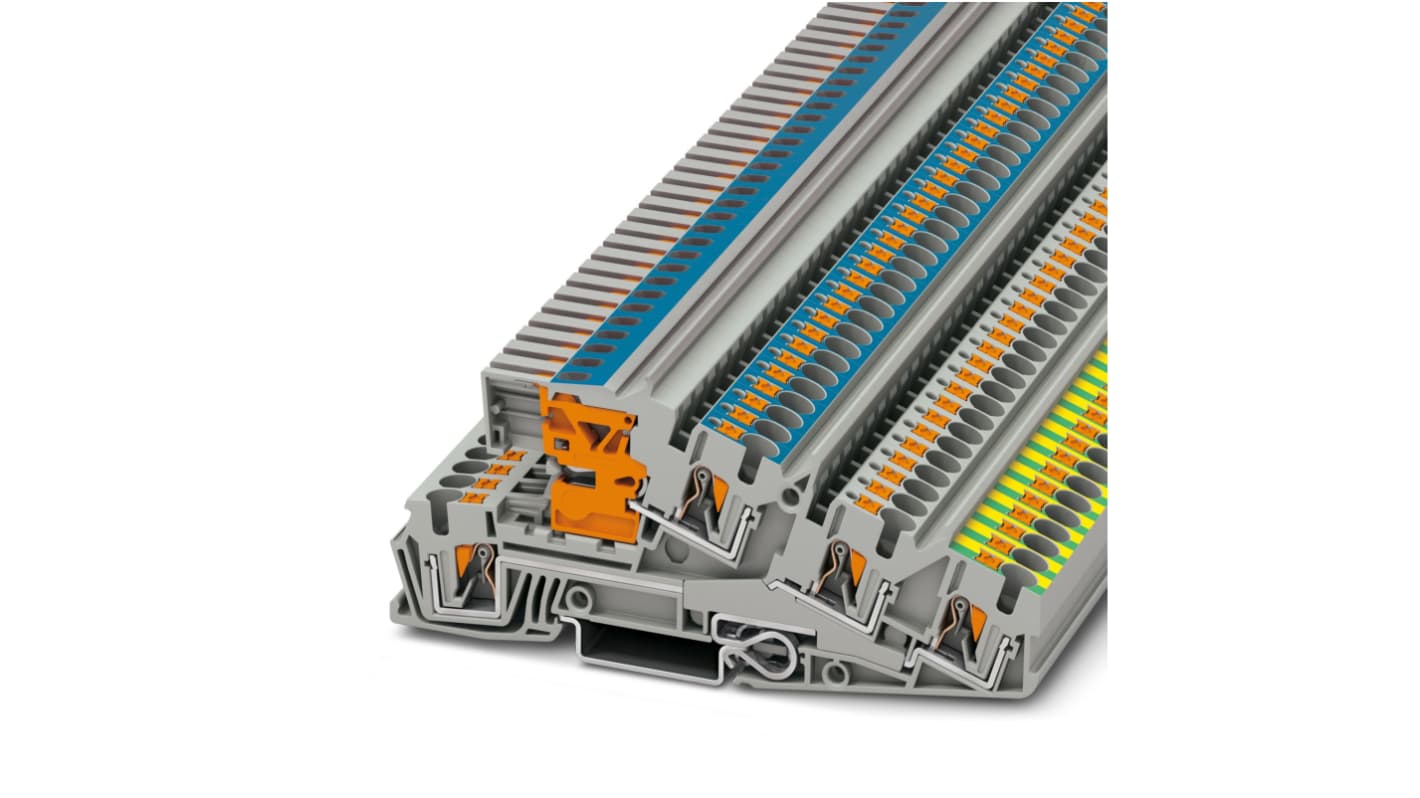

The Phoenix Contact installation ground terminal block with 0.2 to 6 mm² cross section. It has PA as insulating material and grey colour. The block has push-in connection.
Degree of pollution 3
Overvoltage category III
Insulating material group I
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
