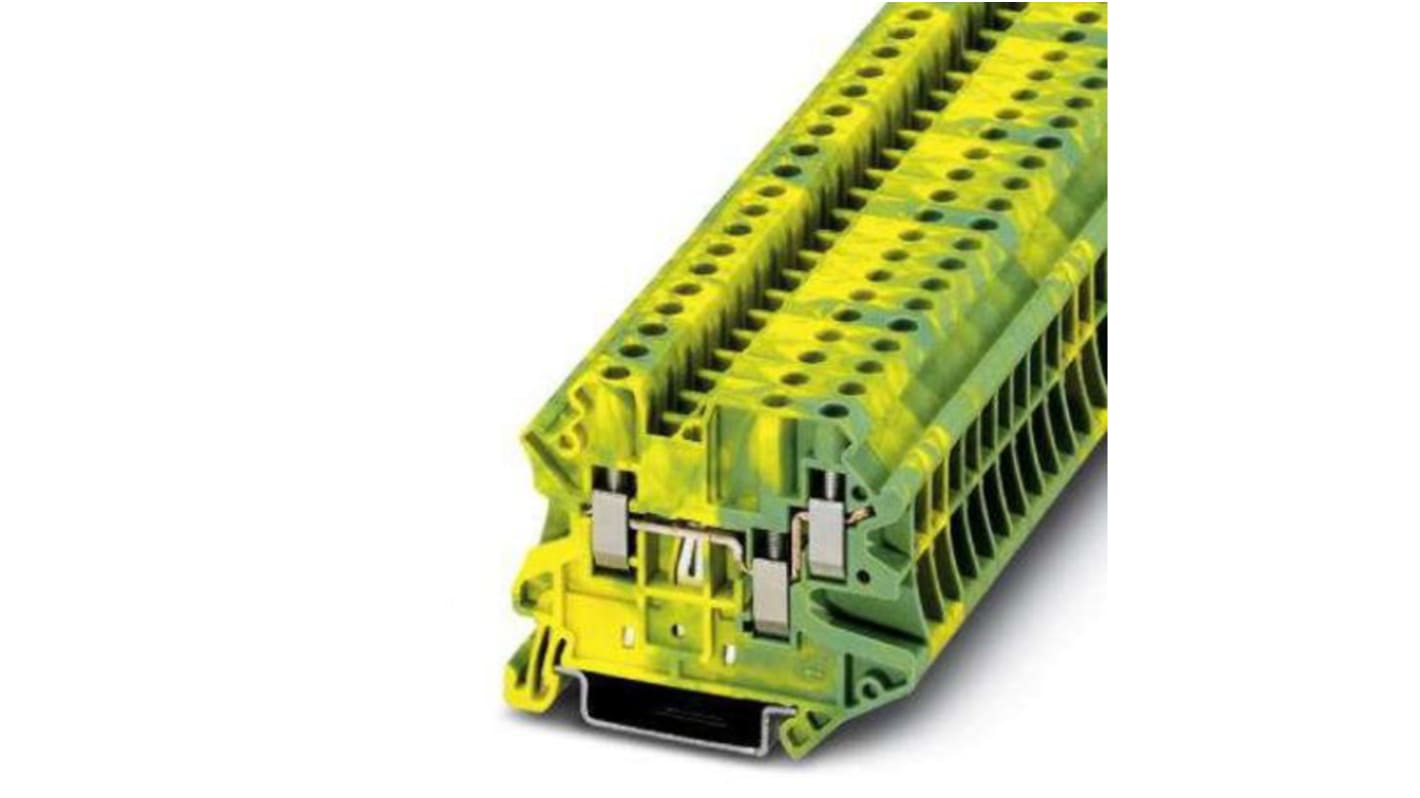

Phoenix Contact 3-Way Ground Terminal Block, 6mm², 10AWG, 26 AWG Wire, Screw, Polyamide Housing, IECEx/ATEX
- RS Stock No.:
- 204-7801
- Mfr. Part No.:
- 3044380
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£209.05
(exc. VAT)
£250.85
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 50 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £4.181 | £209.05 |
*price indicative
- RS Stock No.:
- 204-7801
- Mfr. Part No.:
- 3044380
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Ground Terminal Block | |
| Wire Size | 10AWG, 26AWG | |
| Cable CSA | 6mm² | |
| Colour | Green, Yellow | |
| Number of Ways | 3 | |
| Housing Material | Polyamide | |
| Voltage | 320V | |
| Minimum Operating Temperature | -60°C | |
| Termination Type | Screw | |
| Length | 100.8mm | |
| Maximum Operating Temperature | 105°C | |
| Width | 8.2mm | |
| Series | UT | |
| Standards/Approvals | No | |
| Height | 57.1mm | |
| Hazardous Area Certification | IECEx/ATEX | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Ground Terminal Block | ||
Wire Size 10AWG, 26AWG | ||
Cable CSA 6mm² | ||
Colour Green, Yellow | ||
Number of Ways 3 | ||
Housing Material Polyamide | ||
Voltage 320V | ||
Minimum Operating Temperature -60°C | ||
Termination Type Screw | ||
Length 100.8mm | ||
Maximum Operating Temperature 105°C | ||
Width 8.2mm | ||
Series UT | ||
Standards/Approvals No | ||
Height 57.1mm | ||
Hazardous Area Certification IECEx/ATEX | ||
- COO (Country of Origin):
- DE
The Phoenix contact ground modular terminal block has a screw connection method and wire size 26 - 10.
Screw connection method
Mounting type NS 35/7,5, NS 35/15
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
