Interroll M8 Motorised Drive Roller, 50mm x 300mm
- RS Stock No.:
- 437-2797
- Mfr. Part No.:
- 8AFKJAE6FT/H50T
- Brand:
- Interroll
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£297.67
(exc. VAT)
£357.20
(inc. VAT)
- RS Stock No.:
- 437-2797
- Mfr. Part No.:
- 8AFKJAE6FT/H50T
- Brand:
- Interroll
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Interroll | |
| Roller Diameter | 50mm | |
| Roller Length | 300mm | |
| Component Type | Motorised Drive Roller | |
| Load Capacity | 120kg | |
| Ratio | 21 | |
| Spindle Thread Size | M8 | |
| Maximum Conveying Speed | 24m/min | |
| Maximim Motor Voltage | 30V | |
| Minimum Motor Voltage | 18V | |
Select all | ||
|---|---|---|
Brand Interroll | ||
Roller Diameter 50mm | ||
Roller Length 300mm | ||
Component Type Motorised Drive Roller | ||
Load Capacity 120kg | ||
Ratio 21 | ||
Spindle Thread Size M8 | ||
Maximum Conveying Speed 24m/min | ||
Maximim Motor Voltage 30V | ||
Minimum Motor Voltage 18V | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE

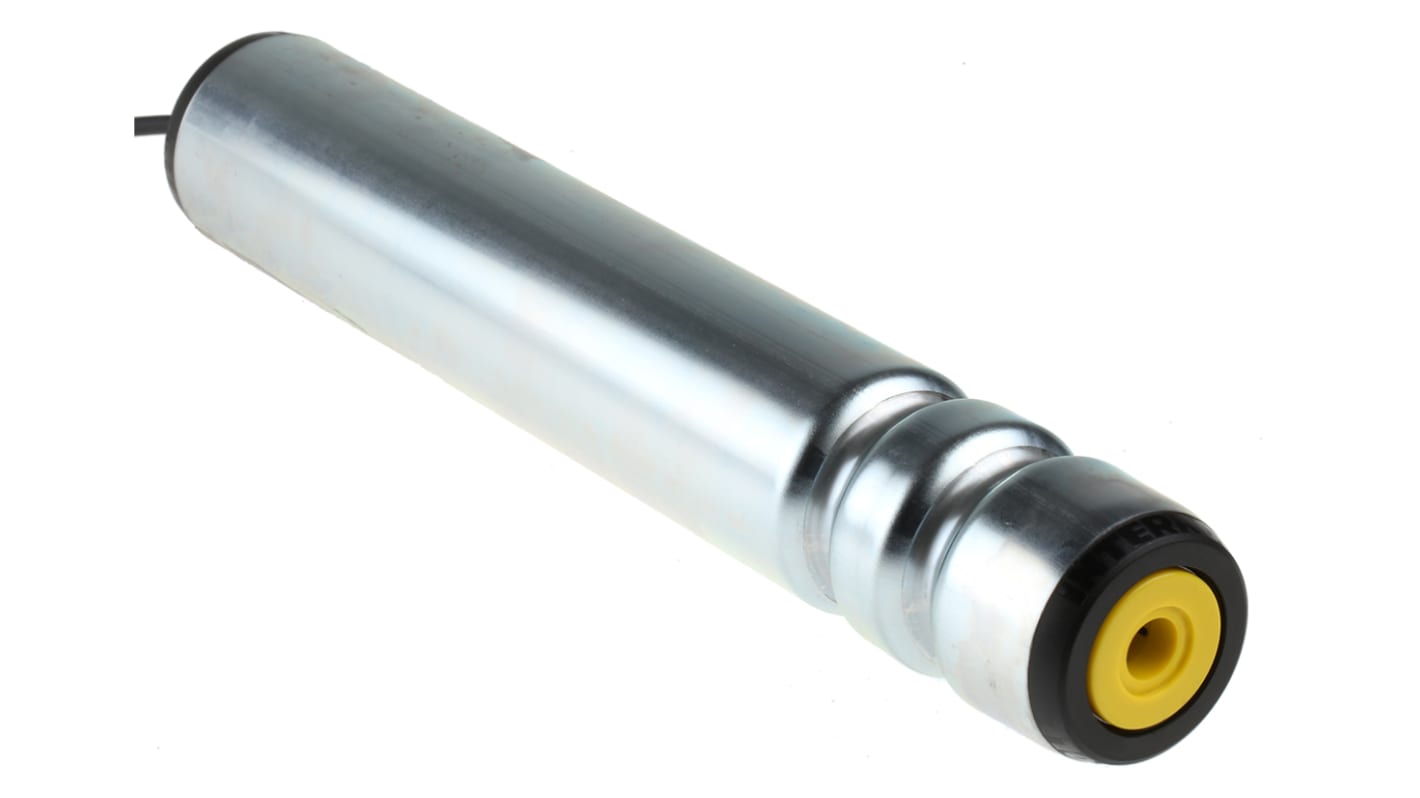

Interroll Motorised Drive Roller
The Interroll BT100 series motorised driver roller has a length of 450mm and a diameter of 50mm. This electrically driven roller has a gear ratio of 21:1 and spindle thread size is M8. It replaces external components such as motors and gears that require frequent maintenance. This device can be used in dusty and/or moist environments. Additionally, the roller is powered by a brushed, mechanically commutated 24VDC motor.
Note:
Should not be used with Thyristor controlled power supply units.
Note:
Should not be used with Thyristor controlled power supply units.
Features and Benefits
Grooved to provide the drive to 9 slave rollers
Bush type motor
Quiet running with a noise level of approximate 47dB(A)
Service life of approximate 6000 operating hours (effective running time)
15 starts/stops per minute
Bush type motor
Quiet running with a noise level of approximate 47dB(A)
Service life of approximate 6000 operating hours (effective running time)
15 starts/stops per minute
Certifications
IP54 rated
