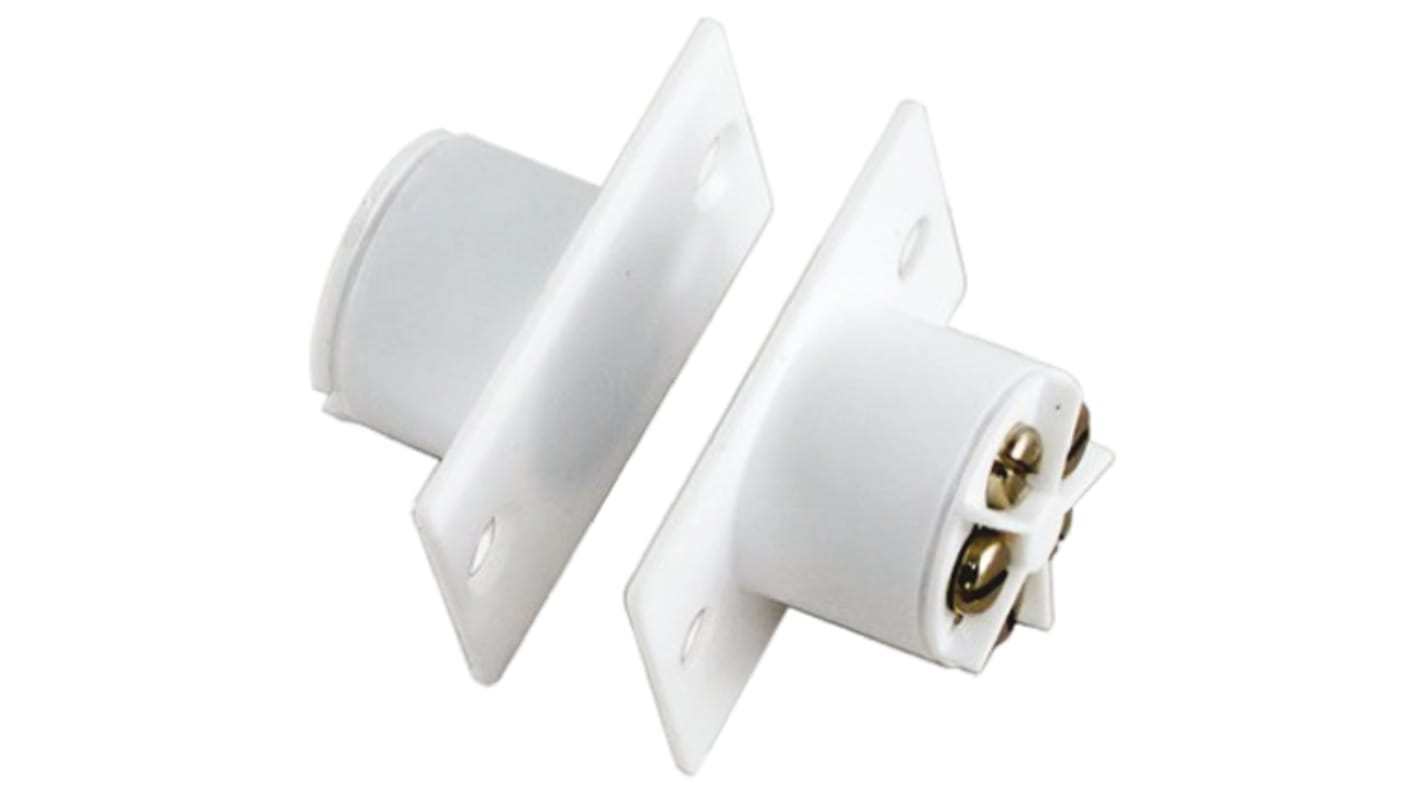

RS PRO Security Alarm Door & Window Switch Flush 500mA, 50V dc
- RS Stock No.:
- 333-158
- Brand:
- RS PRO
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£6.21
(exc. VAT)
£7.45
(inc. VAT)
- RS Stock No.:
- 333-158
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Mounting Type | Flush | |
| Activation Type | Proximity Switch | |

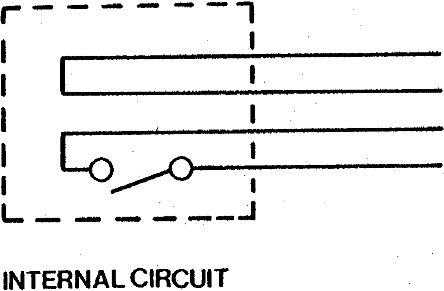

| Switch Configuration | Normally Open | |
| Switching Current | 500mA | |
| Switching Voltage | 50V dc | |

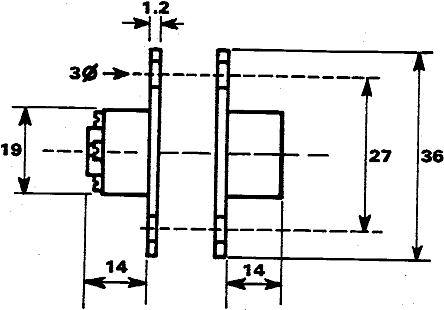

| Operating Gap | 18mm | |
| Depth | 36 mm | |
| Height | 15.2 mm | |
| Operating Gap Maximum | 18mm | |
| Width | 23mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Mounting Type Flush | ||
Activation Type Proximity Switch | ||
Switch Configuration Normally Open | ||
Switching Current 500mA | ||
Switching Voltage 50V dc | ||
Operating Gap 18mm | ||
Depth 36 mm | ||
Height 15.2 mm | ||
Operating Gap Maximum 18mm | ||
Width 23mm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
