HENSEL ENYBOARD ENYBOARD Distribution Board 63A
- RS Stock No.:
- 117-019
- Mfr. Part No.:
- KV 7109
- Brand:
- HENSEL
Subtotal (1 unit)*
£50.63
(exc. VAT)
£60.76
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 12 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £50.63 |
*price indicative
- RS Stock No.:
- 117-019
- Mfr. Part No.:
- KV 7109
- Brand:
- HENSEL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HENSEL | |
| Product Type | Distribution Board | |
| Current Rating | 63A | |
| Range | ENYBOARD | |
| Lockable | Yes | |
| Colour | Grey | |
| Series | ENYBOARD | |
| Supply Voltage | 400V ac | |
| External Depth | 111mm | |
| IP Rating | IP41, IP66, IP40, IP65, IP54 | |
| Material | Polystyrene | |
| External Width | 200mm | |
| External Height | 238mm | |
| Number of Rows | 1 | |
| Standards/Approvals | UL Subject 94, IEC 60754-2, IEC 60695-2-11, EN 60670-24 | |
| Select all | ||
|---|---|---|
Brand HENSEL | ||
Product Type Distribution Board | ||
Current Rating 63A | ||
Range ENYBOARD | ||
Lockable Yes | ||
Colour Grey | ||
Series ENYBOARD | ||
Supply Voltage 400V ac | ||
External Depth 111mm | ||
IP Rating IP41, IP66, IP40, IP65, IP54 | ||
Material Polystyrene | ||
External Width 200mm | ||
External Height 238mm | ||
Number of Rows 1 | ||
Standards/Approvals UL Subject 94, IEC 60754-2, IEC 60695-2-11, EN 60670-24 | ||
- COO (Country of Origin):
- DE

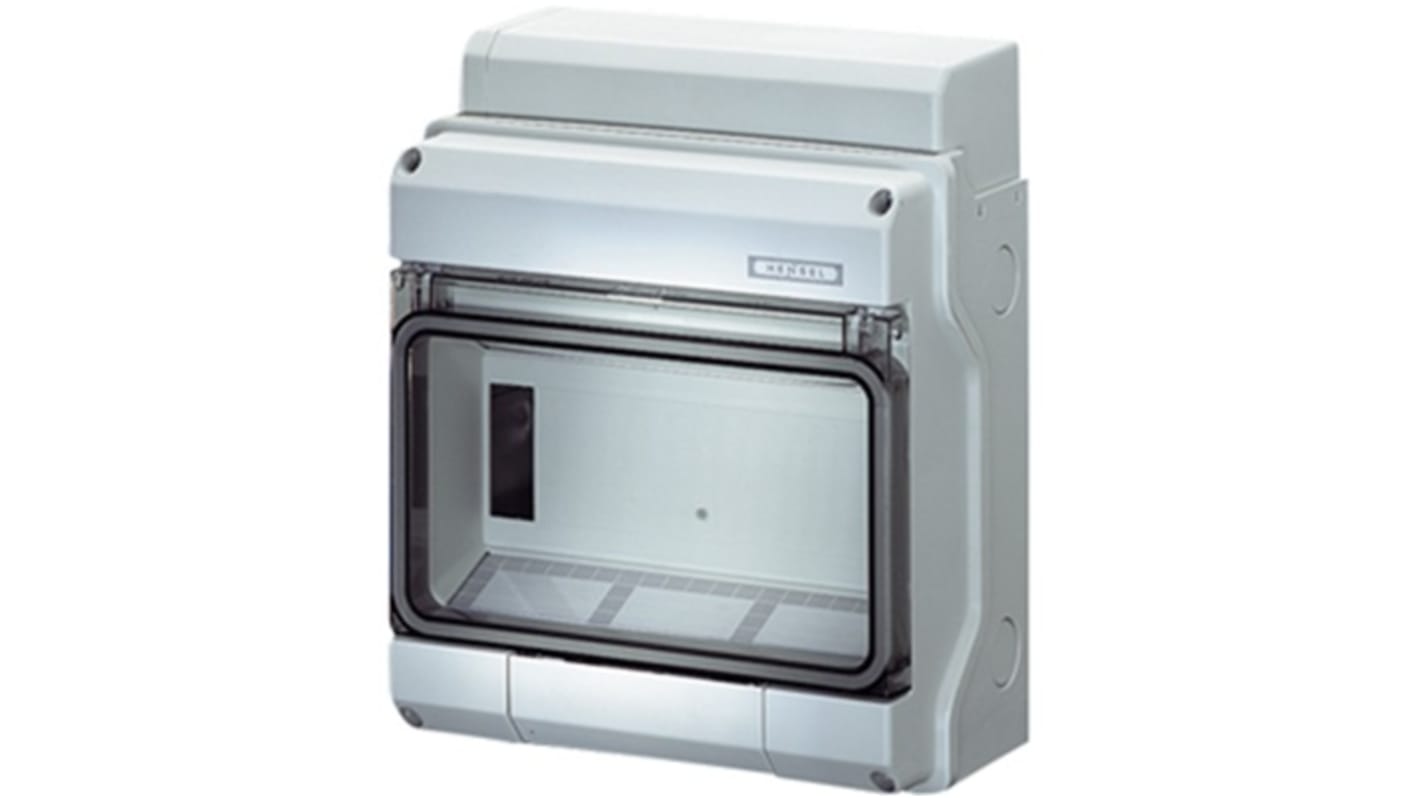

The Hensel Circuit Breaker Box with a degree of protection IP66, is designed for the installation of DIN rail equipment up to 63 A. It features FIXCONNECT terminal technology and is suitable for indoor and outdoor installations. With a grey RAL 7035 color and fire protection capabilities.
Flame retardant design
IK08 impact protection rating
Halogen free and silicone free
Self extinguishing material
