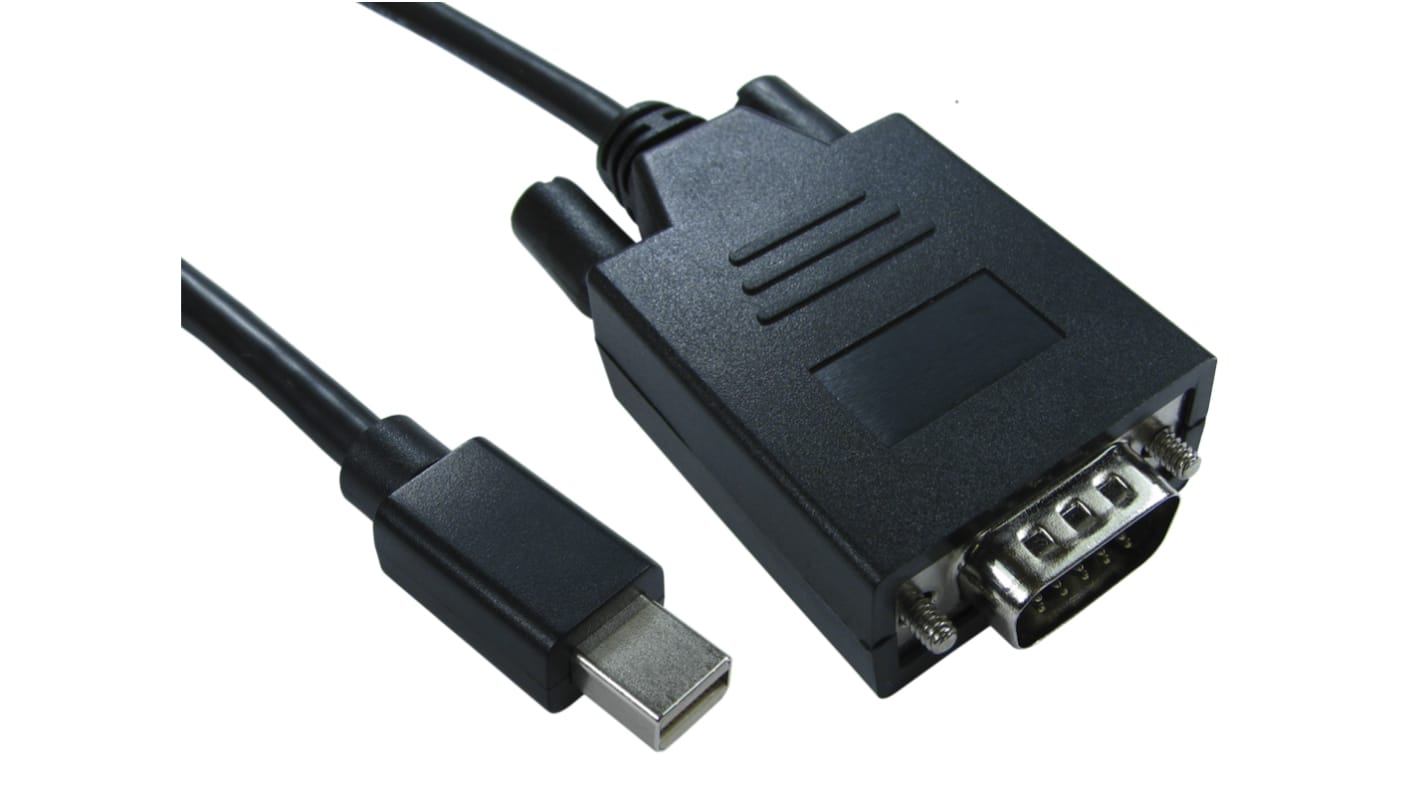

RS PRO Male Mini DisplayPort to Male VGA, PVC Cable, 1080p, 1m
- RS Stock No.:
- 186-3044
- Brand:
- RS PRO
9 In stock - FREE next working day delivery available
Added
Price Each
£24.70
(exc. VAT)
£29.64
(inc. VAT)
| Units | Per unit |
| 1 + | £24.70 |
- RS Stock No.:
- 186-3044
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Mini Display port is simply a smaller version of the Display port, mini Display port is mainly used on MAC computers but other manufacturers may adopt this type of connector. The mini Display port to VGA adapter will allow you to connect a high definition monitor, projector or LCD TV to a MacBook, MacBook Pro or a MacBook Air with a mini Display port connection.
Mini DisplayPort male to VGA male
Mini display port 1.1a compliant (5.4Gbps)
Triple 10-bit, 162 Mhz video DAC for VGA signal
Supports up to 1080p, 1920 x 1200 resolution
EDID pass-through from PC to display
Spread spectrum for EMI reduction
Automatic sync detection
Low power standby mode
Powered from display port
3.3v IO, 1.2v core
400mW active and 15mW standby
Mini display port 1.1a compliant (5.4Gbps)
Triple 10-bit, 162 Mhz video DAC for VGA signal
Supports up to 1080p, 1920 x 1200 resolution
EDID pass-through from PC to display
Spread spectrum for EMI reduction
Automatic sync detection
Low power standby mode
Powered from display port
3.3v IO, 1.2v core
400mW active and 15mW standby
Specifications
Attribute | Value |
|---|---|
| Connector 1 | Mini DisplayPort |
| Connector 2 | VGA |
| Connector 1 Gender | Male |
| Connector 2 Gender | Male |
| Length | 1m |
| Maximum Resolution | 1080p |
| Outer Sheath Material | PVC |
| Sheath Colour | Black |
| Size of Strands | 32 AWG |
