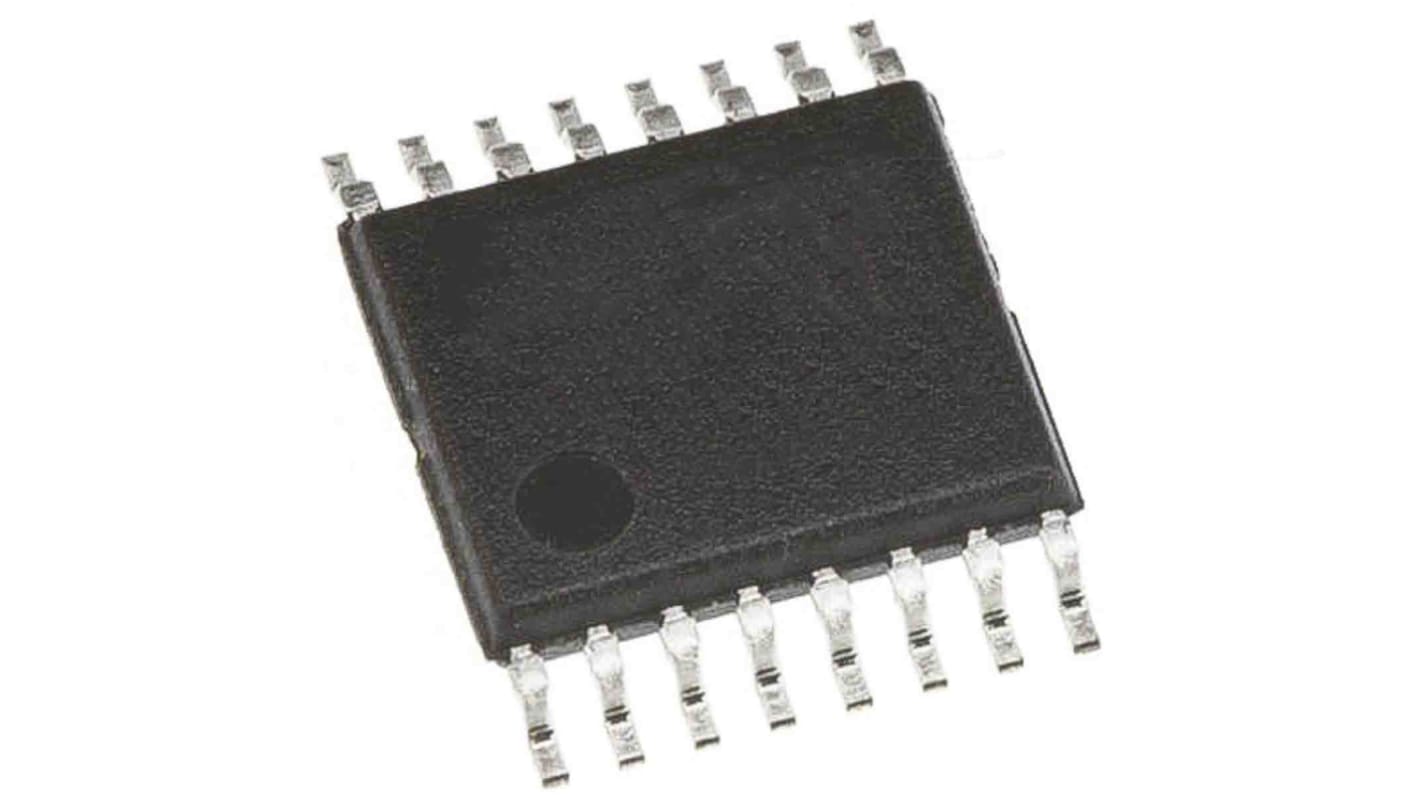

STMicroelectronics STP08CP05TTR TSSOP Display Driver, 16 Pin, 4.5 → 40 V
- RS Stock No.:
- 188-9318P
- Mfr. Part No.:
- STP08CP05TTR
- Brand:
- STMicroelectronics
Subtotal 10 units (supplied on a continuous strip)*
£3.36
(exc. VAT)
£4.03
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 7,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 10 + | £0.336 |
*price indicative
- RS Stock No.:
- 188-9318P
- Mfr. Part No.:
- STP08CP05TTR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Package Type | TSSOP | |
| Display Type | LED | |
| Number of Pins | 16 | |
| Supply Voltage | 4.5 → 40 V | |
| Maximum Supply Current | (Off, On) 13.5mA | |
| Minimum Operating Temperature | -40°C | |
| Mounting Type | Surface Mount | |
| Maximum Operating Temperature | +125°C | |
| Width | 4.5mm | |
| Height | 1.05mm | |
| Length | 5.4mm | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Package Type TSSOP | ||
Display Type LED | ||
Number of Pins 16 | ||
Supply Voltage 4.5 → 40 V | ||
Maximum Supply Current (Off, On) 13.5mA | ||
Minimum Operating Temperature -40°C | ||
Mounting Type Surface Mount | ||
Maximum Operating Temperature +125°C | ||
Width 4.5mm | ||
Height 1.05mm | ||
Length 5.4mm | ||
The STP08CP05 is a monolithic, low voltage, low current, power 8-bit shift register designed for LED panel displays. The STP08CP05 contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. In the output stage, eight regulated current sources were designed to provide 5-100 mA constant current to drive the LEDs, the output current setup time is 11 ns (typ), thus improving the system performance.
The STP08CP05 is backward compatible in functionality. Through an external resistor, users can adjust the STP08CP05 output current, controlling in this way the light intensity of LEDs, in addition, user can adjust LED’s brightness intensity from 0% to 100% via OEpin.
The STP08CP05 guarantees a 20 V output driving capability, allowing users to connect more LEDs in series. The high clock frequency, 30 MHz, also satisfies the system requirement of high volume data transmission. The 3.3 V of voltage supply is useful for applications that interface with any micro from 3.3 V. Compared with a standard TSSOP package, the TSSOP exposed pad increases heat dissipation capability by a 2.5 factor.
The STP08CP05 is backward compatible in functionality. Through an external resistor, users can adjust the STP08CP05 output current, controlling in this way the light intensity of LEDs, in addition, user can adjust LED’s brightness intensity from 0% to 100% via OEpin.
The STP08CP05 guarantees a 20 V output driving capability, allowing users to connect more LEDs in series. The high clock frequency, 30 MHz, also satisfies the system requirement of high volume data transmission. The 3.3 V of voltage supply is useful for applications that interface with any micro from 3.3 V. Compared with a standard TSSOP package, the TSSOP exposed pad increases heat dissipation capability by a 2.5 factor.
Low voltage power supply down to 3 V
8 constant current output channels
Adjustable output current through external resistor
Serial data IN/parallel data OUT
3.3 V micro driver-able
Output current: 5-100 mA
30 MHz clock frequency
Available in high thermal efficiency TSSOP exposed pad
ESD protection 2.5 kV HBM, 200 V MM
8 constant current output channels
Adjustable output current through external resistor
Serial data IN/parallel data OUT
3.3 V micro driver-able
Output current: 5-100 mA
30 MHz clock frequency
Available in high thermal efficiency TSSOP exposed pad
ESD protection 2.5 kV HBM, 200 V MM
