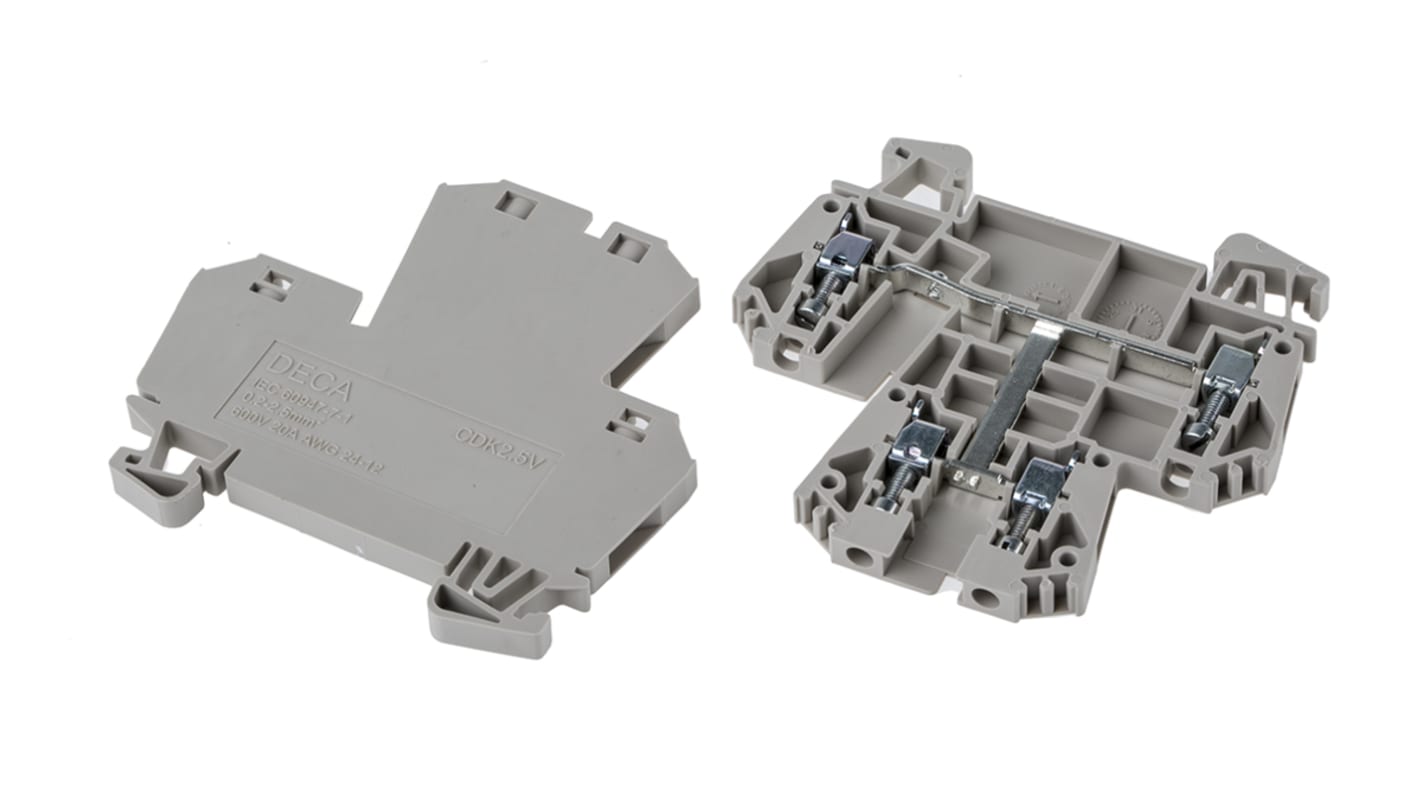

RS PRO, 2.5mm², Double-Level, Screw Termination
- RS Stock No.:
- 878-7480
- Brand:
- RS PRO
Subtotal (1 pack of 10 units)*
£12.45
(exc. VAT)
£14.94
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 270 unit(s) ready to ship
- Plus 210 unit(s) ready to ship from another location
- Plus 400 unit(s) shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £1.245 | £12.45 |
*price indicative
- RS Stock No.:
- 878-7480
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Levels | Double | |
American Wire Gauge | 22 → 12AWG | |
Voltage Rating | 800 V | |
Series | CDK 2.5 | |
Termination Method | Screw | |
Cable CSA | 2.5mm² | |
Current Rating | 20 (UL/CSA) A, 24 (IEC) A | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Levels Double | ||
American Wire Gauge 22 → 12AWG | ||
Voltage Rating 800 V | ||
Series CDK 2.5 | ||
Termination Method Screw | ||
Cable CSA 2.5mm² | ||
Current Rating 20 (UL/CSA) A, 24 (IEC) A | ||
- COO (Country of Origin):
- TW
Screw Double Level Terminal Blocks
2.5mm² double level terminal blocks
Double level wiring design negates the need for rail extension
Marking / identification by marking tags possible at both levels
Interconnection / shorting possible at both levels
Suitable for a broad range of cross-connection and types of wires
Wires can be connected without any special preparation
Excellent vibration resistance
High reliability and maintenance free
Very low contact resistance
Easy mounting and dismounting from the DIN rail
Reduced installation costs and wiring speed
Double level wiring design negates the need for rail extension
Marking / identification by marking tags possible at both levels
Interconnection / shorting possible at both levels
Suitable for a broad range of cross-connection and types of wires
Wires can be connected without any special preparation
Excellent vibration resistance
High reliability and maintenance free
Very low contact resistance
Easy mounting and dismounting from the DIN rail
Reduced installation costs and wiring speed
