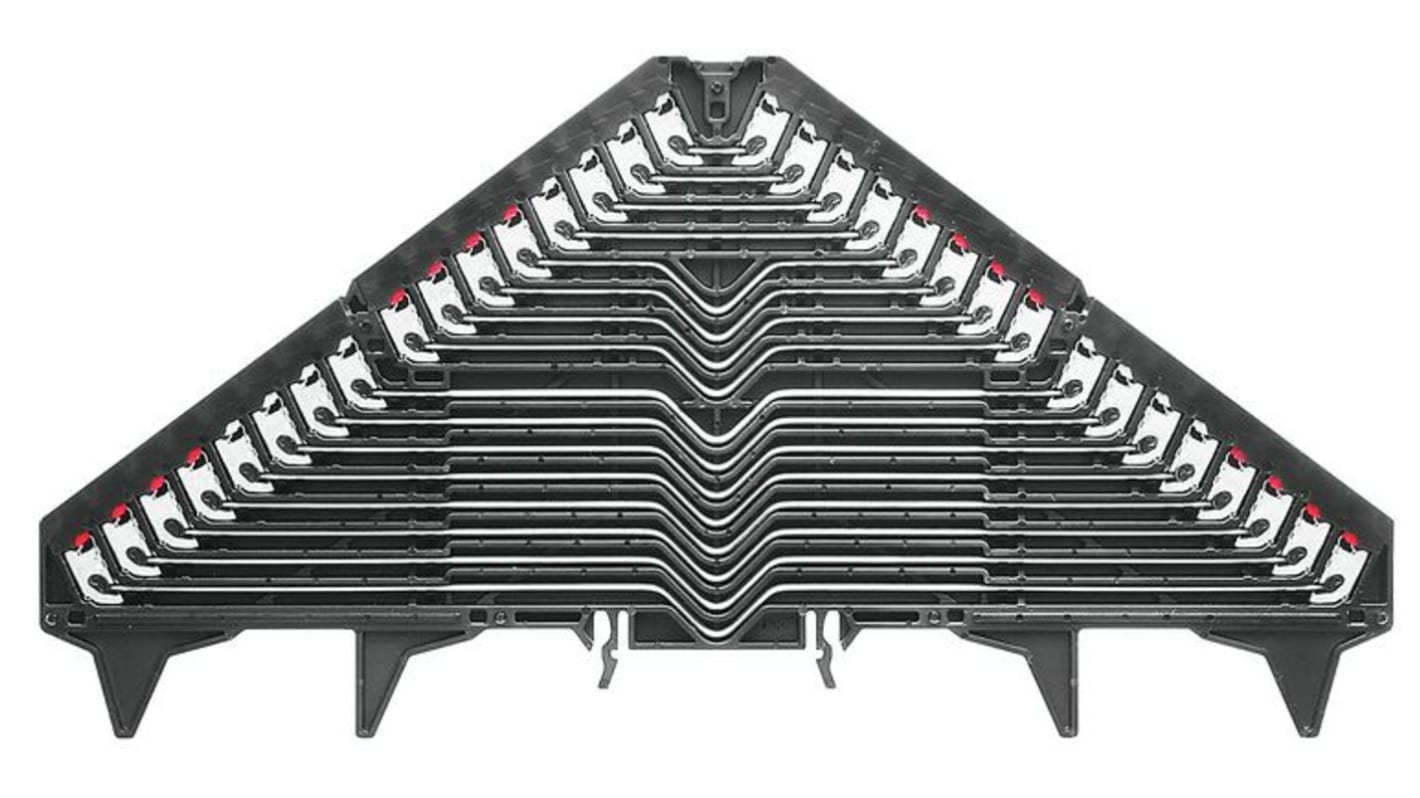

Weidmüller, P, 300 V Standard Din Rail Terminal, Push In Termination

  • RS Stock No. 876-5477
  • Mfr. Part No. PRV 16 SW 35X15 WS/RT - 1173650000
  • Brand Weidmüller
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Marshalling terminal block

These marshalling terminal blocks from Weidmuller are ideal for space saving with their multi-tier terminals and push in connection technology. Several product lines are available including four, eight and sixteen channels. The four and eight channel terminal blocks are also available as potential distribution terminals.

Features and Benefits

• More than 1700 signals per metre can be distributed with the 16 channel terminal block • Easy to assign wires to their terminal points
• The push in connections make wiring quick and easy

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

Specifications
Attribute Value
Series P
Wire Size 26 → 16 AWG
Colour Black
Current Rating 1A
Number of Levels 16
Termination Method Push In
Voltage Rating 300 V
Minimum Operating Temperature -10°C
Maximum Operating Temperature +40°C
Available to back order for despatch 02/12/2020
Price Each
£ 34.67
(exc. VAT)
£ 41.60
(inc. VAT)
Units
Per unit
1 +
£34.67
