- RS Stock No.:
- 872-5621
- Brand:
- RS PRO
3050 In stock - FREE next working day delivery available
40 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 10)
£2.76
(exc. VAT)
£3.31
(inc. VAT)
Units | Per unit | Per Pack* |
10 + | £2.76 | £27.60 |
*price indicative |
- RS Stock No.:
- 872-5621
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
Product Details

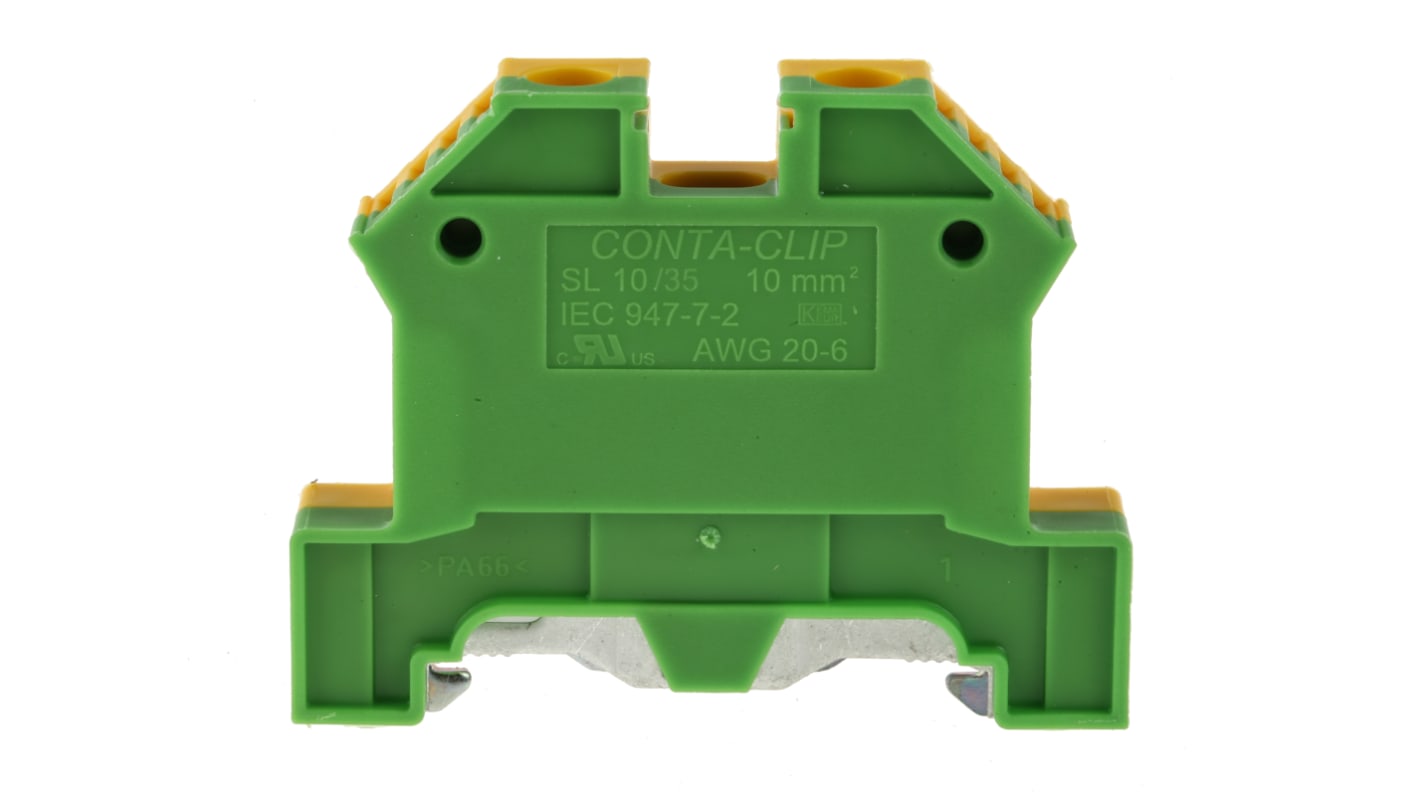

RS PRO Green, Yellow Earth Terminal Block, 20 → 6 AWG
Need to make quick and safe connections for the smallest cross-sections? This protective earth terminal from RS PRO uses the Conta-Clip RK screw connection system to achieve very high contact forces in a small space.
A large wire-entry bay helps you to insert the conductors when working in a confined space. The foot can be snapped onto TS 32 and TS 35 DIN rails for quicker assembly. The housing is made from durable polyamide (PA), which meets the 6.6 UL 94-V2 flammability standard, meaning it won't burn for more than 30 seconds. It's colour-coded yellow and green so you can easily identify it as a protective earth terminal.
The terminal can be used at temperatures from -40°C to +105°C, so it's suitable for use in wide range of industrial environments. Earth terminal blocks of this kind are commonly used to protect electrical units or people from electrical or magnetic fields.
A large wire-entry bay helps you to insert the conductors when working in a confined space. The foot can be snapped onto TS 32 and TS 35 DIN rails for quicker assembly. The housing is made from durable polyamide (PA), which meets the 6.6 UL 94-V2 flammability standard, meaning it won't burn for more than 30 seconds. It's colour-coded yellow and green so you can easily identify it as a protective earth terminal.
The terminal can be used at temperatures from -40°C to +105°C, so it's suitable for use in wide range of industrial environments. Earth terminal blocks of this kind are commonly used to protect electrical units or people from electrical or magnetic fields.
Features and Benefits
• Green, yellow colour
• Maximum operating temperature of +105°C
• Minimum operating temperature of -40°C
• Single level
• Screw termination method
• Wire size of 20 to 6 American Wire Gauge (AWG)
• Maximum operating temperature of +105°C
• Minimum operating temperature of -40°C
• Single level
• Screw termination method
• Wire size of 20 to 6 American Wire Gauge (AWG)
Specifications
Attribute | Value |
---|---|
Colour | Green, Yellow |
Number of Levels | Single |
Series | 1213.2 |
American Wire Gauge | 20 → 6AWG |
Termination Method | Screw |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +105°C |
