Phoenix Contact 3214363 UT 4-L Series Grey, Screw Termination
- RS Stock No.:
- 866-6829
- Mfr. Part No.:
- 3214363
- Brand:
- Phoenix Contact
- RS Stock No.:
- 866-6829
- Mfr. Part No.:
- 3214363
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Grey | |
| Series | UT 4-L | |
| American Wire Gauge | 26 → 10AWG | |
| Termination Method | Screw | |
| Fused | No | |
| Current Rating | 32A | |
| Voltage Rating | 500 V | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | +130°C | |
| Model Number | UT 4-L | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Series UT 4-L | ||
American Wire Gauge 26 → 10AWG | ||
Termination Method Screw | ||
Fused No | ||
Current Rating 32A | ||
Voltage Rating 500 V | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +130°C | ||
Model Number UT 4-L | ||
- COO (Country of Origin):
- PL

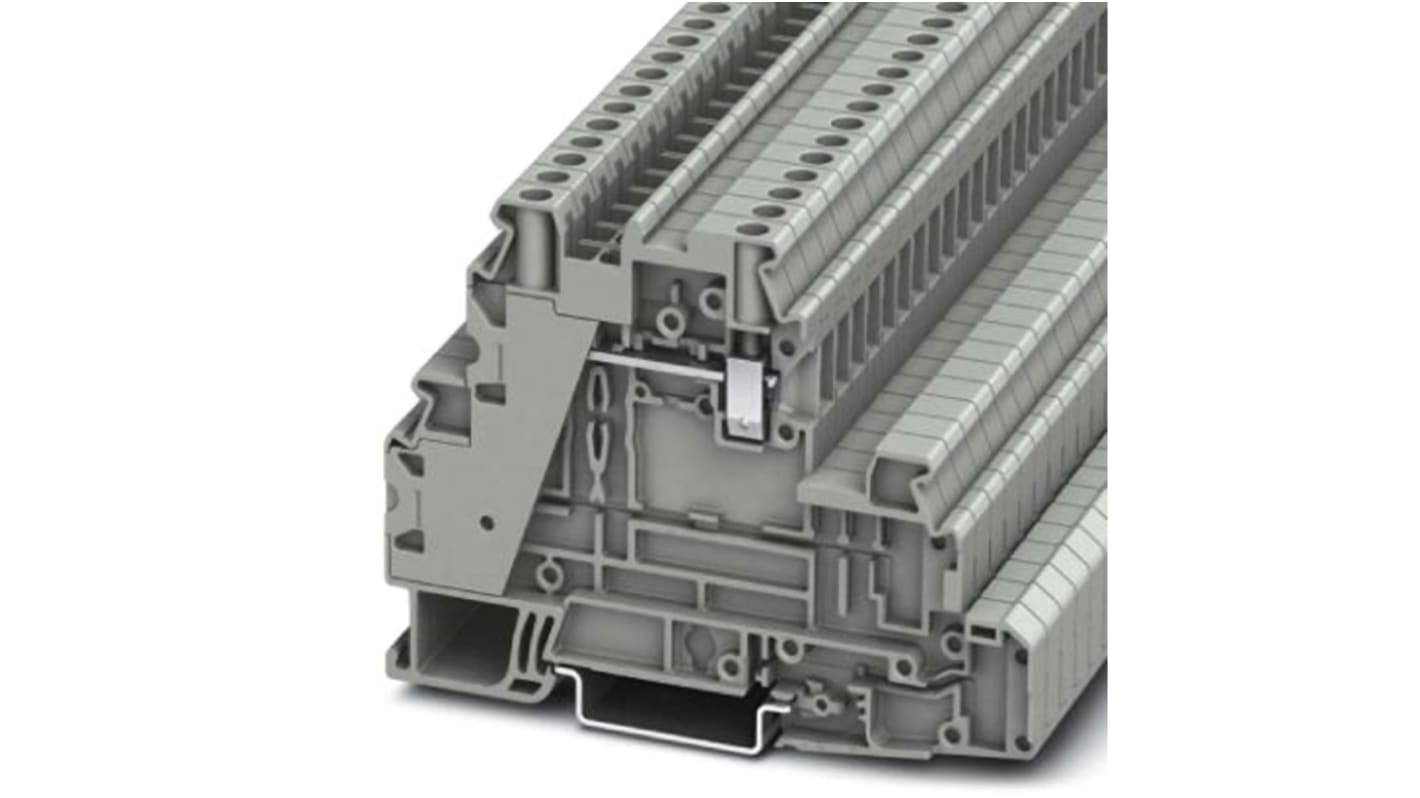

UT Lever-type Fuse and Function Terminal Blocks with PE Foot
The lever-type fuse and function terminal blocks with PE foot are suitable for process technology based on the Ex nA approval that has been applied for, and are suitable for energy and signal transmission in potentially explosive areas.
Features and Benefits
• Screw Connection
• Mounting type: NS 35/7.5, NS 35/15
• RoHS compliant
• Mounting type: NS 35/7.5, NS 35/15
• RoHS compliant
Standards
IEC 60947-7-1, V0 UL 94 flammability rating.
Approvals
IECEx, UL, cUL, EAC, CSA, cULus.
