Phoenix Contact 3210352 PTT 1.5/S-2MT BU Series Grey, Push In Termination
- RS Stock No.:
- 866-6743
- Mfr. Part No.:
- 3210352
- Brand:
- Phoenix Contact
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 866-6743
- Mfr. Part No.:
- 3210352
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Grey | |
| Series | PTT 1.5/S-2MT BU | |
| American Wire Gauge | 26 → 14AWG | |
| Voltage Rating | 400 V | |
| Termination Method | Push In | |
| Fused | No | |
| Current Rating | 9A | |
| Model Number | PTT 1,5/S-2MT BU | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Series PTT 1.5/S-2MT BU | ||
American Wire Gauge 26 → 14AWG | ||
Voltage Rating 400 V | ||
Termination Method Push In | ||
Fused No | ||
Current Rating 9A | ||
Model Number PTT 1,5/S-2MT BU | ||
- COO (Country of Origin):
- PL

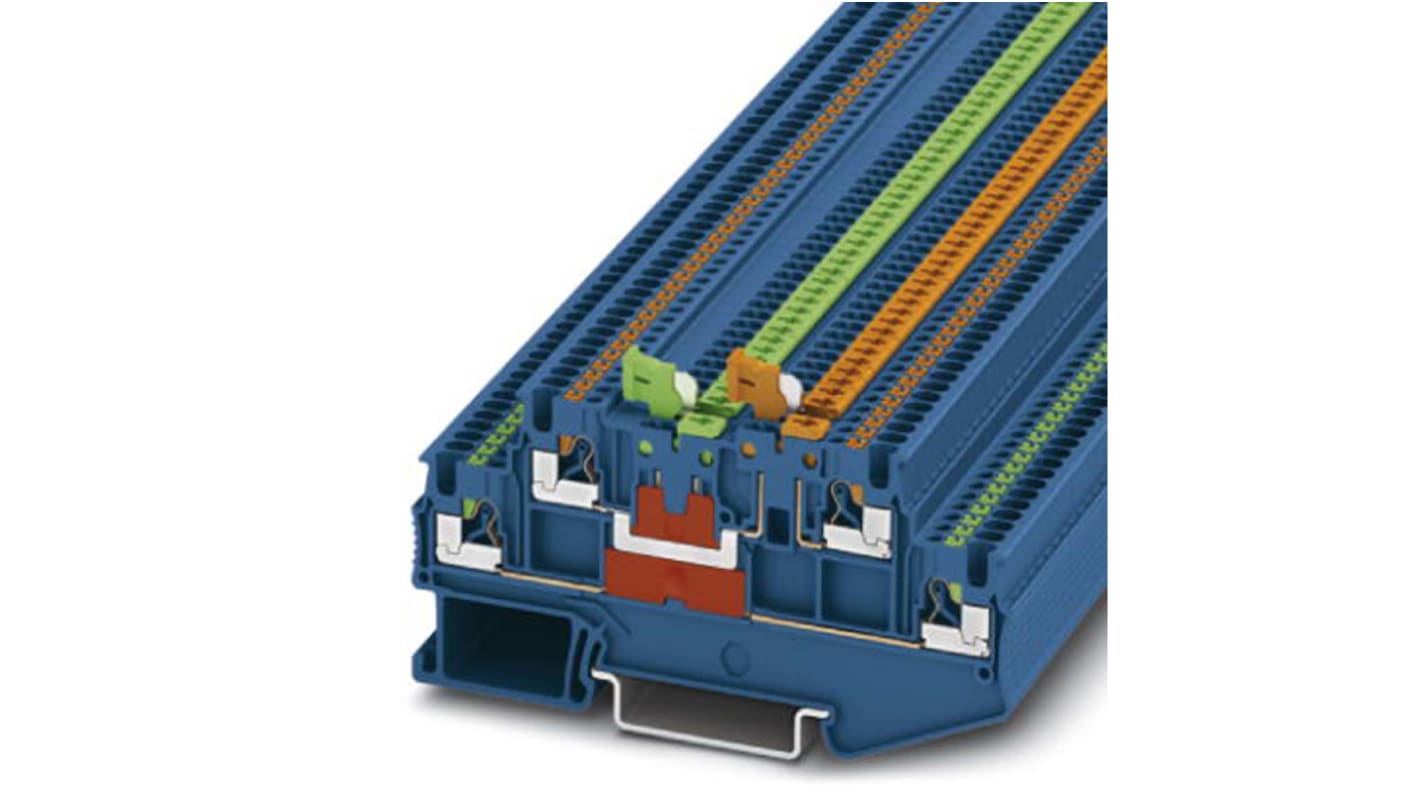

PTT Series Disconnect Terminal Blocks
The PTT series is a range of push-in connection, disconnect terminal blocks. These din-rail terminal blocks are characterized by the system features of the CLIPLINE and by easy wiring of conductors with ferules or solid conductors that can be done without the use of any tools.
Features and Benefits
• Push-in connection din-rail terminal blocks
• Clipline System
• Tool-free wiring of conductors
• Compact design and front connection enable wiring in confined space
• Convenient circuit separation, thanks to lever type disconnect knife
• Clear identification of disconnect point, thanks to colour highlighting
• RoHS compliant
• Clipline System
• Tool-free wiring of conductors
• Compact design and front connection enable wiring in confined space
• Convenient circuit separation, thanks to lever type disconnect knife
• Clear identification of disconnect point, thanks to colour highlighting
• RoHS compliant
Standards
IEC 60947-7-1, V0 UL 94 flammability rating.
Approvals
UL, cUL, EAC, CSA, cULus.
